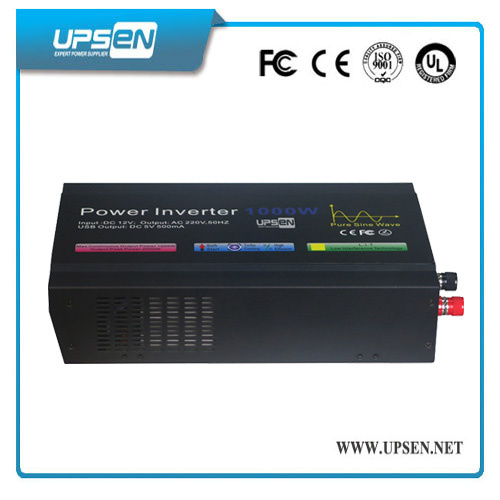

CE Approved Single Phase Pure Sine Wave Invertor

Name: CE Approved Single Phase Pure Sine Wave Invertor
Brand: all-electronics-online.com
SKU: 778229405
Availability: InStock
Rating: 4.7 (117 reviews)

Price:	US $ 1-50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ideal Star Series 300W-1000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Controller:	MPPT Type
Soft Start:	Yes
Color:	Black
Warranty:	12 Months
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Electric Power
Brand:	Upsen

Product Description

CE Approved Single phase pure sine wave invertor
Pure Sine Wave Inverter Ideal Star Series 300W-1000W (1ph in/1ph out)

Key Features:
1:High efficiency: 90%
2:Built-in high speed cooling fan
3:high frequency technology light and small
4:The inverter is compact , light weight and easy to operate.
5:Input and output are completely independent.
6:Pure sine wave output, available for sensitive load
7:Doesn't affect the working life of electrical equipment
8:Supperior performance from CPU control technology
9:Sound and light alarm, under-voltage alarm, with frequency-conversion cooling fan
10:High frequency design, higher transfer efficiency, low standby power loss, long standby time
11:Easy to check with inverter condition with LED indication that can be upgraded to LCD

Application
Home,office,Monitoring,Alarm Systems,Marine Equipment,Data center,Precision instrument,Commercial facility,Intelligent equipment,Street Lighting,Small town power system etc.

Technical Specification

Model		IS300	IS500	IS600	IS800	IS1000
Rated power		300W	500W	600W	800W	1000W
Peak power		600W	1000W	1200W	1600W	2000W
Start method		Soft start
DC input	Rated input voltage	12V/24V/48V(optional)
AC Output	Voltage	100V/110V/220V/230V/240V(optional)
	Frequency	50HZ/60HZ(optional)
	Waveform	Pure Sine Wave
	Maximum DC	110%
	loads output power
	Total Harmonic Distortion	THD≤2%
	Rated output efficiency	>85%
Protection	High input voltage shutdown	15.0V, automatically shutdown, alarm twice
	Low input voltage shutdown	10.0V, automatically shutdown, alarm twice
	Low input voltage alarm	10.5V, no power off, alarm once
	Over temperature protection	When the temperature of internal heat sink is above 80ºC, it will shutdown automatically and alarm three times
	Short circuit protection	Shutdown, alarm five times, restart automatically
	Overload	Shutdown, alarm four times, restart automatically
	protection
	Reverse Input	Quick-break fuse
Environment	Temperature	-10 - 40ºC
	Humidity	0%-95%
Noise of the fan		<55dB
Insulation resistance		EN50081-1/EN55022
Insulating strength		EN50081-1/EN55022
Weight (Kg)		1.16		1.92	3
Size		23511565		29513272	32018572
WDH(mm)
*Specifications are subject to change without prior notice.
