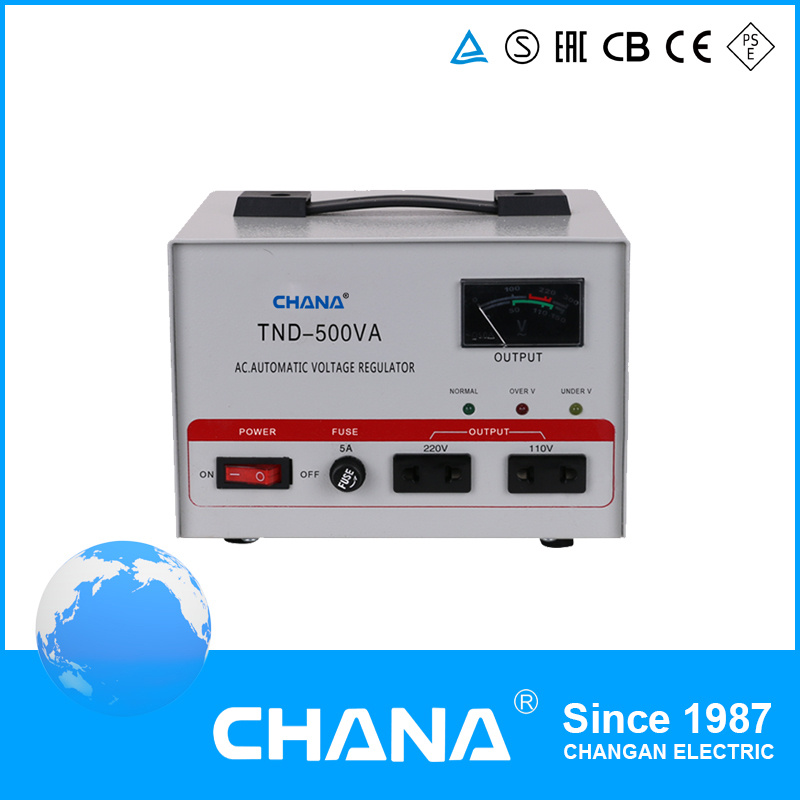

CE Approved SVC Series Automatic Voltage Regulator

Name: CE Approved SVC Series Automatic Voltage Regulator
Brand: all-electronics-online.com
SKU: 744558875
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 20-25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TND-500VA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phases:	Single Phase
Type:	SVC500va
Voltage:	160V-250V
Frequency-:	50/60Hz
Current Type:	AC
Phase:	Single Phase
Usage:	SVC
Frequency:	Industrial Frequency
Brand:	Chana

Product Description

TND(SVC) Series single phase automatic voltage regulator is combined with auto-transformers,servo motor and PCB etc.When the grid voltage is not stable,the sampling circuit will send a signal to drive the motor to adjust the position of carbon brush to adjust the output voltage to reach the rated date and stay stable .It has delay,over voltage,under voltage protections.It is an ideal stabilizer power supply.
Technical date

Input Voltage	130-250V
Output Voltage	220±3%
Frequency	50Hz/60Hz
Adjust time	<=1sec. Against 105 input voltage deviation
Efficiency	>=90%
Temperature	-10ºC~+40ºC
Relative Humidity	<90%
Waveform Distortion	No waveform Distortion
Load factor	0.8
Insulation Resistance	>5MΩ

Dimension/Package

Model	Net weight(Kg)	Size(WidthxDepthxHeight)cm	Quantity
TND-0.5KVA	4	19x16x14	4
TND-1KVA	5.5	21x21.5x17	4
TND-1.5KVA	5.8	21x21.5x17	4
TND-2KVA	10	29x24x20	2
TND-3KVA	12	3223.5x24	2
TND-5KVA	15	36.5x22x29	2
TND-7KVA	16.5	36.5x22x29	2
TND-10KVA	27	43.5x24x37	1
TND-5KVA(Vertical)	17	32x28x46	1
TND-10KVA(Vertical)	36	38x34.5x62	1
TND-15KVA	64	45x38x75	1
TND-20KVA	70	45x38x75	1
TND-30KVA	95	49x42.5x123	1
TND-40KVA	118	49x42.5x123	1
TND-50KVA	169	66x54x96	1

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
