CE Certificate Motor! ! ! Induction Motor / Single Phase Motor

Prod Model:	YL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue or to Request
Voltage:	220/380V,380/660V,660/1140V
Protect Feature:	IP44,IP54,IP55
Application:	Industrial
Operating Speed:	Low Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Protection Type
Species:	Single Phase

Product Description

Brief Introduction

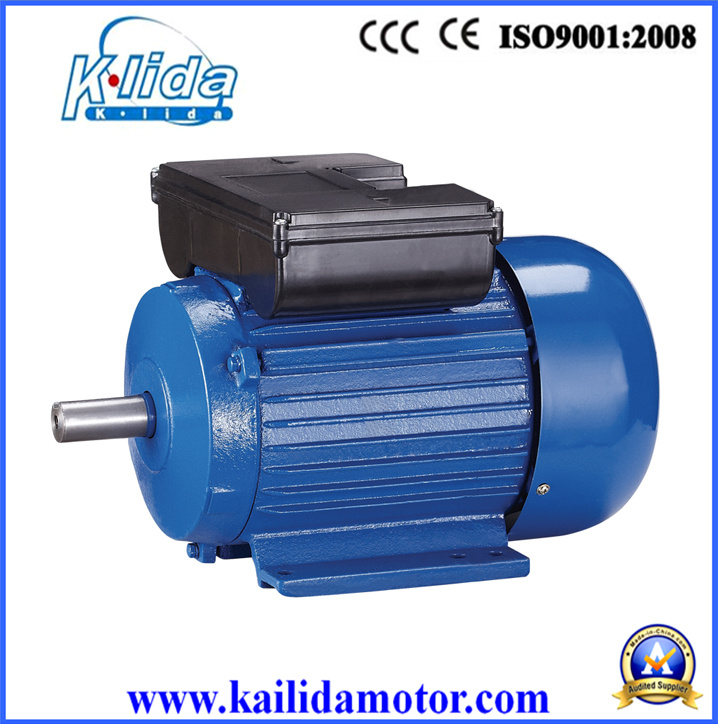

YL series motors start by capacitor, is so called two-value capacitor induction motor with the advantages of the capacitor start motor and capacitor running motor, , high efficiency, energy saving, low noise, little vibration, light weight, convenient operation and maintenance. Widely used in many places, where do not exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, air compressor etc.

Protection level: IP44 / IP54 / IP55 Cooling method: IC0141 Insulation level: B/F
Rated frequency: 50/60 Hz Rated voltage: 110/220/230/240V Duty/rating: S1


Electric Motor Factory Advantages.
Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric motors and since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.
We Promise you all the time after you working with us for Win-Win Business.
Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 25 days for Normal Models.
Deliver Time about 45- 60 days for New Models upon Receiving the New Samples.

Welcome your sincere inquiry about Various Electric Motors, We look forward you to visiting our factory. We remain the best service all the time. Thank you very much.

Model			Output		Current	Power Factor	Dff	Speed
			kW	HP	(A)		(%)	(r/min)
YCL90S-2			1.1	1.5	7.2	0.95	73.2	2880
YCL90L-2			1.5	2	8.9	0.97	76	2900
YCL100L-2			2.2	3	13.2	0.96	78.8	2900
YCL90S-4			0.75	1	5	0.93	73.3	1450
YCL90L-4			1.1	1.5	7.8	0.9	75	1450
YCL100L-4			1.5	2	9.3	0.92	79.4	1450
YCL112M-4			2.2	3	13.6	0.9	81.6	1450
YCL132S1-4			3	4	18.2	0.9	83.2	1450
YCL132S2-4			3.7	5	22	0.9	84.9	1450
YCL132M1-4			5.5	7.5	32.5	0.9	85	1460
YCL132M2-4			7.5	10	40	0.9	85.5	1460
