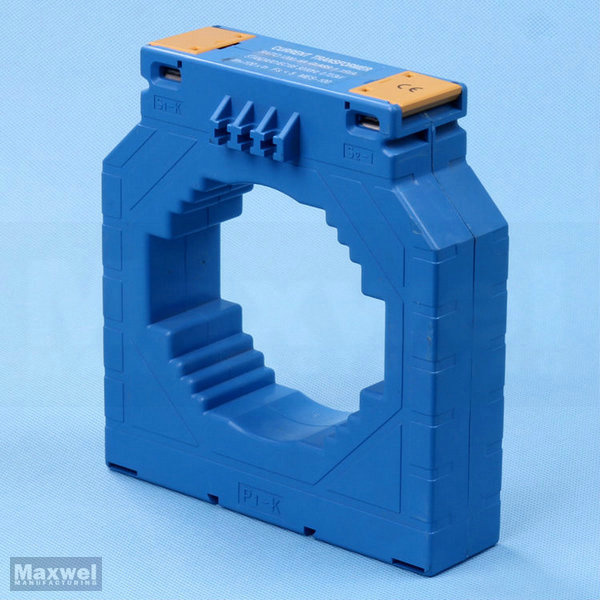

Ce Certificated AC Current Transformer (MES-100/60)

Name: Ce Certificated AC Current Transformer (MES-100/60)
Brand: all-electronics-online.com
SKU: 704917885
Availability: InStock
Rating: 4.6 (75 reviews)

Price:	US $ 2.5-3.5/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MES-100/60
Markets:	South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Model:	Mes-100/60
Class:	0.5/1.0
Colour:	Blue
Capacity:	600A-1200A
Standard Certificate:	IEC44-1/BS7626/VDE0414/Vl94
Phase:	Three
Type:	Current Transformer

Product Description

MES current transformer series:

1. The MES series of current transfomer are convenient for mounting in many ways.
2. The most current transformer need the special mounting and the EMS series used the mounting of DIN typing without a lot of time.
3. The protective cover for the terminal block used the switching device with safety and quick

MES tecnicial specifications:

Primary current: 5A-3000A
Secondary current: 5A/1A
Standard approval: IEC44-1/BS7626/VDE0414
Maximum voltage: 0.72/3kv
Frequency: 50/60Hz
Rated load: 2.5VA/5VA/10VA/15VA
Class: 0.5/1.0
Short-time thermal current: Ith=60*Ih
Rated security coefficient Fs<5

Model	Nominal current ratio	Burden VA
		Class 0.5	Class 1
MES-100/60	600/5	15	20
MES-100/60	800/5	15	20
MES-100/60	1000/5	15	20
MES-100/60	1200/5	15	20

Product Detail

Fundamental:

About Warranty:

At least A year!

Delivery Time:

Whin 15 Days After you place an Order!

FAQ
1: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

2: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

3. How to pay?
A: T/T will be more appreciated. Parpal or Wester Union
30% deposit before producing, 70% balance before loading by T/T.

4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

5. What about the Package?
A: Standard export package and we can make special designed for you if need.
