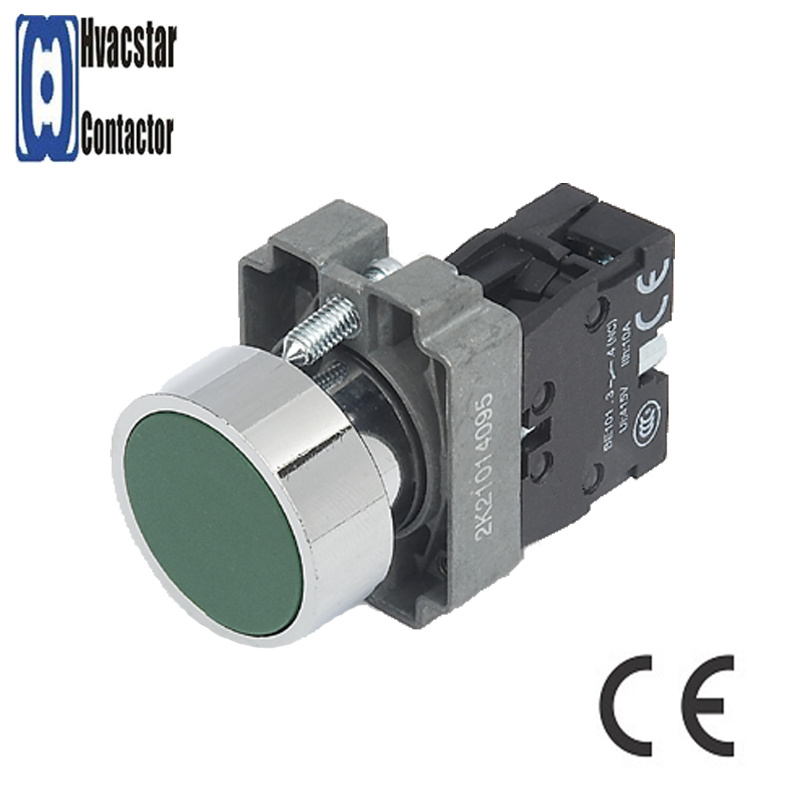

Ce Certificated Flat Push Button Switch, Electrical Switch

Prod Model:	LA188-B2-BA31
Delivery Time:	30 Days After Deposit
Color:	White,Black,Green Yellow,Blue,Red,etc
Other Services:	ODM OEM
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	Hvacstar

Product Description

ABOUT US
HeCheng Electrical Co., Ltd., founded in 1995, is one of the leading manufacturers specializing in developing and producing kinds of low voltage electrical products and accessories in China. As an enterprise certified by ISO9001 system, we also get UL, IQNet, CQC, CSA etc. certifications. We have rich experience in producing and trading with advanced manufacturing equipment, power and complete testing equipments.

LA188-B2 series push button switches are applicable in industrial control circuits of AC 50Hz/60Hz, rated working voltage up to 380v and DC working voltage up to 250v, widely used for electromagnetic starter, contactor, relay and other electrical controls.

Technical Specification

Rated insulation Voltage	415V
Resistive Amps Rating	10A
Rated Working voltage	-	380	250	240	125
Full Load Amps	AC-15	2.5	-	3	-
	DC-13	-	0.27	-	0.55


Characteristics

Contact resistance	≤50mΩ
Electrical life	Over AC 100,000 times
Mechanical life	Over 100,000 times
Operation Temperature	-25ºC ~ +55ºC
Color	Red Green Yellow White Blue(RGYWB) as photo,or OEM
Short-circuit protection	RT16-10A


Features:
1. The finger of comfort press to press position and switch to turn operation
2. The function identify
3. The auto connect ground
4. Defend the finger get an electric shock again
5. Plate chrome metals a head and install a base
6. The quakeproof bolt carry son
7. Hard,credibility,as long as 3,000,000 times machine life span
8. As long as 50,000 hours of the service life of the LED indicator
9. Touch some basecassette install
10. No need any tool
11. Fast and firm

FAQ
 Q1: Can I get a sample for testing?
   A: Yes, we could offer free sample, but shipping cost should be paid at customers' side.
 Q2: Can I print my logo on the products?
   A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
 A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
 A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
 A: 15-20 days after getting deposit.
Q6: How about payment terms?
 A: 30% deposit, the rest payment balance against B/L copy.
