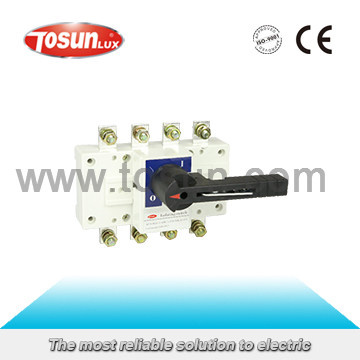

CE Certified Hdt1 Isolating Switch

Name: CE Certified Hdt1 Isolating Switch
Brand: all-electronics-online.com
SKU: 755098855
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	US $ 11-582/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HDT1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Main Poles:	3,4
Rated Insulation Voltage Ui(V):	750 / 1000
Dielectric Strength (V):	5000-10000
Rated Operational Current Ie(a):	125-1600
Rated Making Capacity (a RMS) AC-23 380V:	1000-8000
Rated Breaking Capacity(a RMS) AC-23 380:	1250-10000
Rated Short-Circuit Making Capacity Icm:	12-70 Ka
Mechanical Life:	3000-1000 Operations
Operation:	Manual
Series:	Four
Certification:	CE
Switching Mode:	Single Throw-in
Brand:	Tosunlux

Product Description

Specification

Model			125	160	200	250	315	400	500	630	1000	1250	1600
Number of Poles			3,4	3,4	3,4	3,4	3,4	3,4	3,4	3,4	3,4	3,4	3,4
Rated Insulation Voltage Ui(V)			750	750	750	750	1000	1000	1000	1000	1000	1000	1000
Dielectric Strength			5000	5000	5000	5000	8000	8000	8000	8000	10000	10000	10000
Rated Operational Current le(A)	380V	AC-21	125	160	200	250	315	400	500	630	1000	1250	1600
		AC-22	125	160	200	250	315	400	500	630	1000	1250	1600
		AC-23	125	160	200	250	315	340	425	536	800	1000	1280
Rated Making Capacity(A Rms) AC-23 380V			1000	1000	1600	1600	2500	3200	3200	3200	8000	8000	8000
Rated Breaking Capacity(A Rms) AC-23 380V			1250	1250	2000	2000	3150	4000	4000	4000	10000	10000	10000
Rated Short-circuit Making Capacity lcm(KA)			12	12	17	17	30	30	40	40	70	70	70
Mechanical Life(operations)			10000	10000	10000	10000	5500	5500	5500	5500	4000	4000	3000

Application
HGLD series double power automatic changeover switch is suitable in electrical system with AC 50/60Hz, rated insulation voltage up to 1000V, rated voltage up to 400V, conventional heat current up to 3200A. The items are widely used in varieties of hospital, building, bank, airport, coal mine, telecom, freeway, military installation and so on.
