| Prod Model: |
HBS1GQF-11/S |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
19mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Screw Terminal |
| IP: |
IP65, Ik09 |
| Crust Material: |
Stainless Steel |
| Switch Rating: |
5A/250V AC |
| The Front Shape: |
Concave |
| Operation Pressure: |
4n |
| Operation Stroke: |
About 2.5 mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
Za |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description

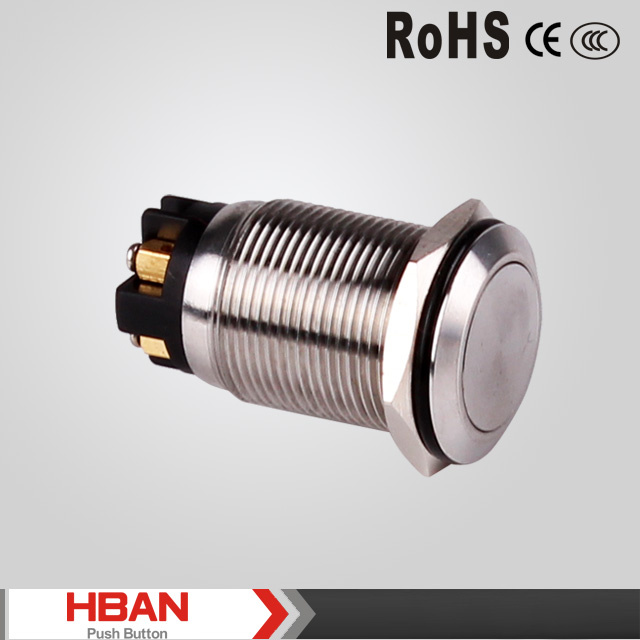

CE ROHS 19mm wiring terminal momentary latching ring led push button switch
Mounting Hole Size: Φ19mm
Switch Rating: 5A/250VAC
Contact Configuration: 1NO1NC
Operation Type: Momentary
The Crust Material: Stainless Steel

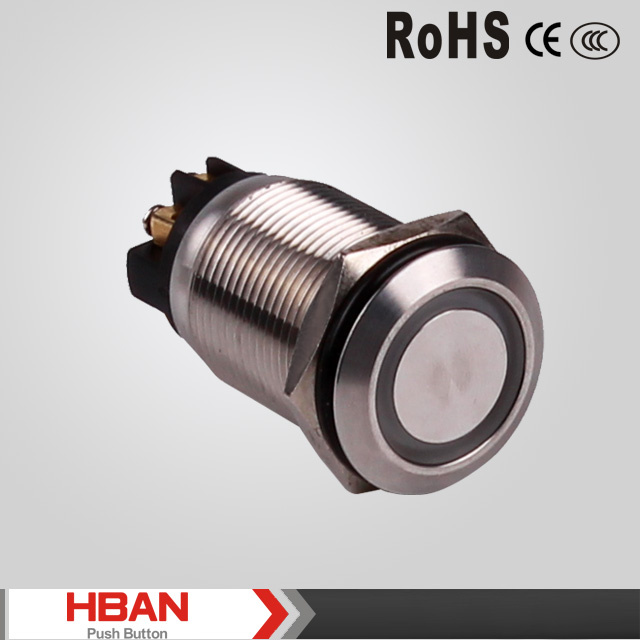

lluminated Type: Ring-illuminated
Protection Degree: IP65,IK09
| Specifications | HBS1GQ-11D | HBS1GQ-11E |
The Front Shape | Flat Round | Concave |

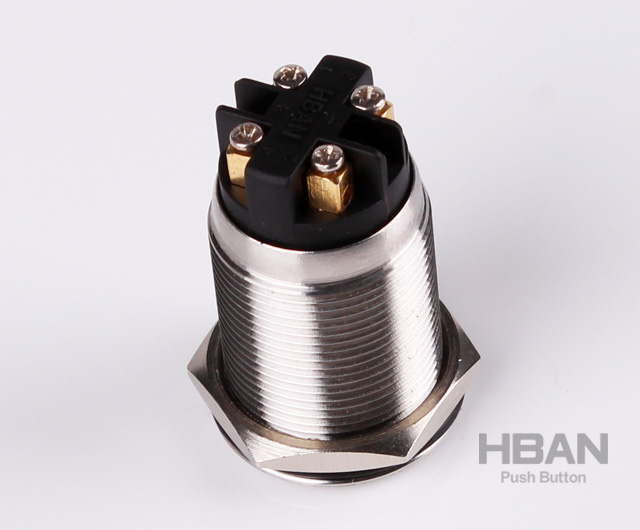

| Terminal Type | Pin Terminal(2.8×0.5mm) | screw terminal |
| Switch Type | ZA (Double breakpoint snap-action changeover contacts) | ZA (Double breakpoint snap-action changeover contacts) |
| Switch Specifications | Ith: 5A Ui: 250V AC | Ith: 5A Ui: 250V AC |
| Contact Resistance | ≤ 50 mΩ | ≤ 50 mΩ |
| Insulation Resistance | ≥ 1000 MΩ | ≥ 1000 MΩ |
| Dielectric Strength | 2000 V AC | 2000 V AC |
| Operating Temperature | - 20°C ~ + 55 °C | - 20°C ~ + 55 °C |
| Mechanical Life | >1,000,000 times | >1,000,000 times |
| Electrical Life | >50,000 times | >50,000 times |
| Panel Thickness | 1~10 mm | 1~10 mm |
| Torque | 5~1 4 Nm | 5~14 Nm |
| Operating Pressure | About 4 N | About 4 N |
| Operating Stroke | About 2.5 mm | About 2.5 mm |
| Protection Degree | IP65( IP67 can be customize), IK09 | IP65( IP67 can be customize), IK09 |
| Material | Contact | Silver Alloy | Silver Alloy |
| Button | Stainless Steel | Stainless Steel |
| Case | Stainless Steel | Stainless Steel |
| Base | PC | PC |
| RoSH | Can be made to order | Can be made to order |
| Lamp Parameter | Lamp Type | Dot-illuminated ( LED ) | Ring-illuminated( LED ) |
| Rated Voltage | 6V/12V/24V/110V/220V | 6V/12V/24V/110V/220V |
| Color | Red Green Yellow Orange Blue White | Red Green Yellow Orange Blue White |
| Life | 50000 hours | 50000 hours |
Packing Details:We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
