CE RoHS 22mm Plastic Push Button Switch

Name: CE RoHS 22mm Plastic Push Button Switch
Brand: all-electronics-online.com
SKU: 693081412
Availability: InStock
Rating: 4.8 (118 reviews)

Price:	US $ 0.1-1.78/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y090-10, Y090-11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item No.:	Y090-10,Y090-11
Head Shape:	Flat
Rated Voltage:	500V
Rated Current:	5A
Usage:	Check Button
Kind:	Double-pole on-off Switch
Type:	Composite
Brand:	Hban
Certification:	ISO9001,CE,RoHS,CCC

Product Description

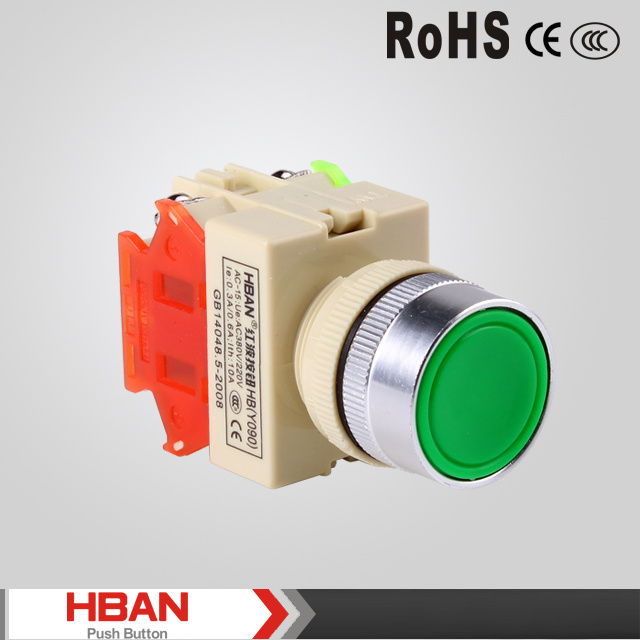

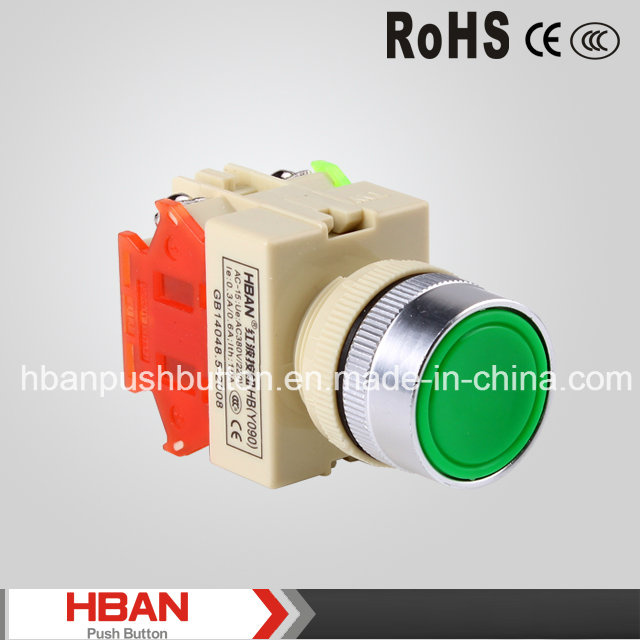

CE ROHS 22mm Plastic Push Button Switch

1.Mounting Hole Size:dia.22mm
2.Operation type:Momentary,Latching
3.CE,ROHS,IP40

Mounting Hole Size :Φ22mm
Contact Configuration:1NO1NC
Operation Type: Momentary, Latching
The Crust Material:Stainless Steel
Protection Degree:IP40, ( IP65 Can be made to order )

Packing details:

We pack each diameter 22mm plastic push button switches packed into a small box separately.Then will put 10 small boxes into a 3 layers corrugated inner box with 1 piece of guarantee card.Finally ,we packed 50 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more
than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
electronics, production control, medical, banks, ships, automation and other i
ndustries.

We can customize push button switch according to your specification, If you have
any requirement or question,please feel free to contact us.

Tel:0086-577-62708000 Fax :0086-577-62708007

Working temperature	-25°C ~ +55°C No frozen
Work environment humidity	The around of light switch body must be airiness
Contact material	Silver cadmium oxideS ilver plated gold plating thickness 3 µm
Contact resistance	≤50mΩ
Insulation resistance	≥100mΩ
Max withstand voltage	300V.AC50Hz
Vibration proof	50Hz,Amplitude about1.0mm
Impact resistance	Greater than 10g
Mechanical life	1,000,000 times
Electric life	Above 30,000 times
Wiring	Screw join Line dia max 2x1.5mm,
	Wiring insert:6.3 0.8mm
Operating	Operating force:200gf~500gf,
	depend the quatity of switch element
	Operating distance about5.5mm (button)
Specified value of the switch
Rated insulation voltage	AC600V
Heating current	10A
Rated current	24V	48V	110V	220V	380V	500V
DC	8A	4A	2.2A	1.1A
AC			10A	6A	4A	2A

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

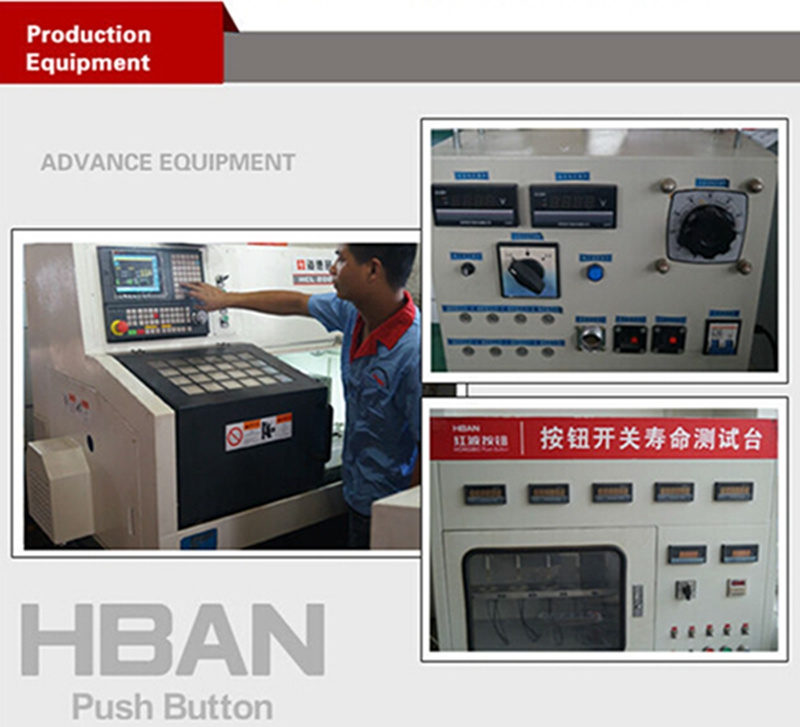

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.

Tel: 0086-577-62708000 Fax: 0086-577-62708007
