| Prod Model: |
HBS1-AWY-11D, 11DZ, 11DT, 11DTZ |
| Item No.: |
Hbs1-Awy |
| Switch Rating: |
5A/250VAC |
| Contact Configuration: |
1nonc,2no2nc |
| Operation Type: |
Momentary/Latching |
| The Front Shape: |
Round |
| The Crust Material: |
PC |
| Protection Degree: |
IP40 |
| Function: |
Small Circuit Control |
| Manufacturer: |
Yes |
| Original: |
Zhejiang,China |
| Type: |
Composite |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
ISO90001,Ce,RoHS,CCC |
Product Description

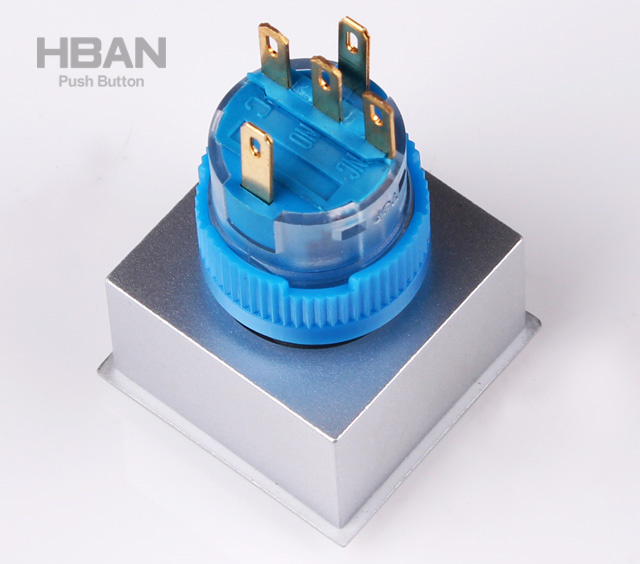

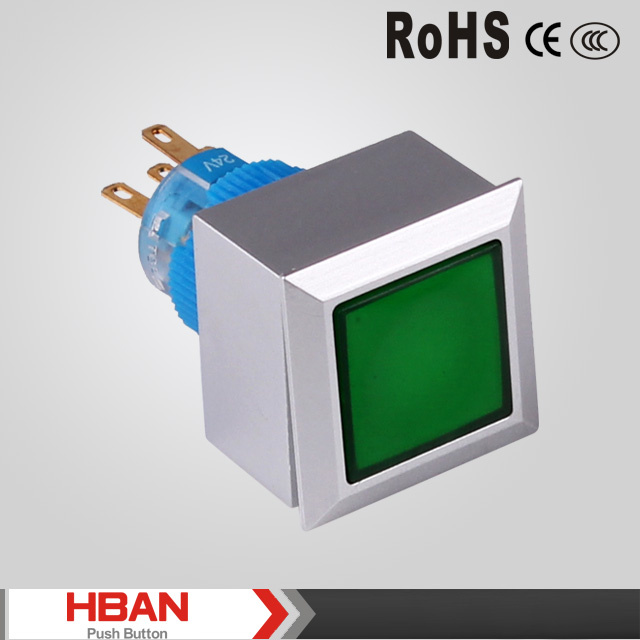

CE ROHS 22mm square head illuminated momentary latching push button switch
1.Mounting Hole Size:Φ22mm
2. Switch Rating :5A/250VAC
3. Contact Configuration:1NO1NC,2NO2NC
4.Operation Type: Momentary/Latching
5.TheFront Shape: Square
6.The Crust Meterial: PC
7.Protection Degree: IP40

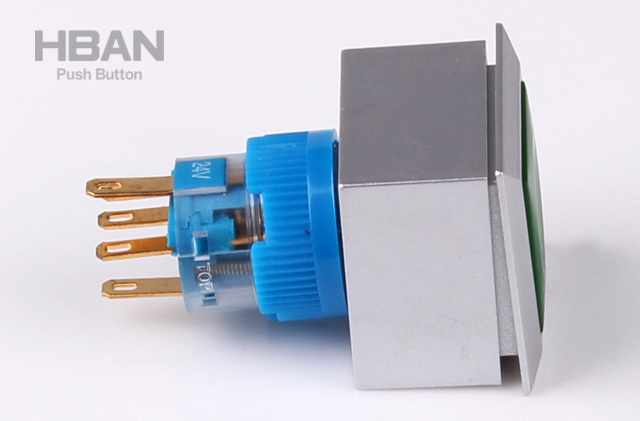

8.Terminal Type: Pin Terminal
9.Illuminated type: Head

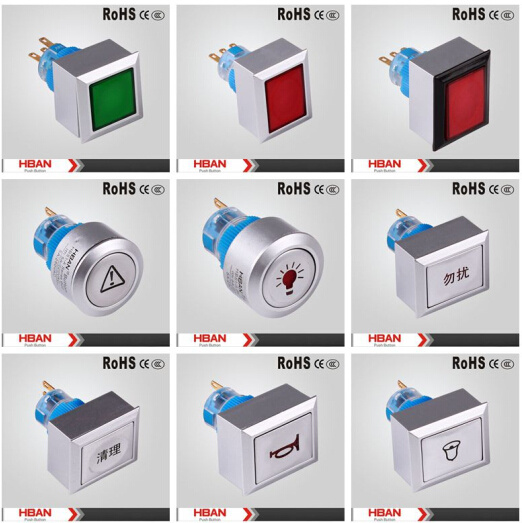

10.Color: R/G/Y/O/B/W
11.Lamp voltage: 6V/12V/24V/110V/220V
Packaging Details:We pack 20 pieces diameter 22mm metal push button switches into 1 foam box to protect them .We supply 20 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 16 boxes / 20 boxes into a 5 layers corrugated export carton.
About Us: Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push buttonSwitch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.Our products are widely used in machinery, machine tools, electric power,Electronics, production control, medical, banks, ships, automation and other Industries.We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .Tel: 0086-577-62708000 Fax: 0086-577-62708007 Other imformation
1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer. 2) over 13 years experience of manufacture and selling 3) lowest price from factory 4) up to 5 years product quality warranty 5) safety payment methods including paypal,western union,T/T,moneygram 6) specially customizing products as per your requests 7) products with CCC CE ROHS UL ISO9001 SGS TUV certification8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight9) providing samples for free befor placing order | Item No. | HBS1-AWF-11 | HBS1-AWF-11Z |
| Specification | 1NO1NC Momentary | 1NO1NC Latching |
| Item No. | HBS1-AWF-22 | HBS1-AWF-22Z |
| Specification | 2NO2NC Momentary | 2NO2NC Latching |
| Item No. | HBS1-AWF-11D HBS1-AWF-11DZ |
| Specification | With lamp 1NO1NC Momentary With lamp 1NO1NC Latching |
| Item No. | HBS1-AWF-22D HBS1-AWF-22DZ |
| Specification | With lamp 2NO2NC Momentary With lamp 2NO2NC Latching |
| Item No. | HBS1-AWF-D |
| Specification | Signal lamp |
| Front Head Shape | Flat Round |
| Terminal Type | Pin Terminal |
| Switch Type | C(Single-break fast-motion changeover contact) |
| Switch Specification | Ith: 5A Ui :250VAC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >1,000,000 times |
| Electrical Life | >200,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | 3-5N |
| Operating Stroke | About 3.1mm |
| Protection Degree | IP40 |
| Material | Contact | Sliver Alloy |
| Button | PC |
| Case | PC | |
| Base | PBT |
| RoHS | Can be made to order |
please note:The above logo or any special logo with illumination or without illumination can be customized as per your request.
