Ce RoHS Approved 30W 12V 2.5A Waterproof LED Driver Bg-30-12

Name: Ce RoHS Approved 30W 12V 2.5A Waterproof LED Driver Bg-30-12
Brand: all-electronics-online.com
SKU: 820074285
Availability: InStock
Rating: 4.8 (76 reviews)

Price:	US $ 4-7/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BG30W-12V
Output Type:	Single
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment

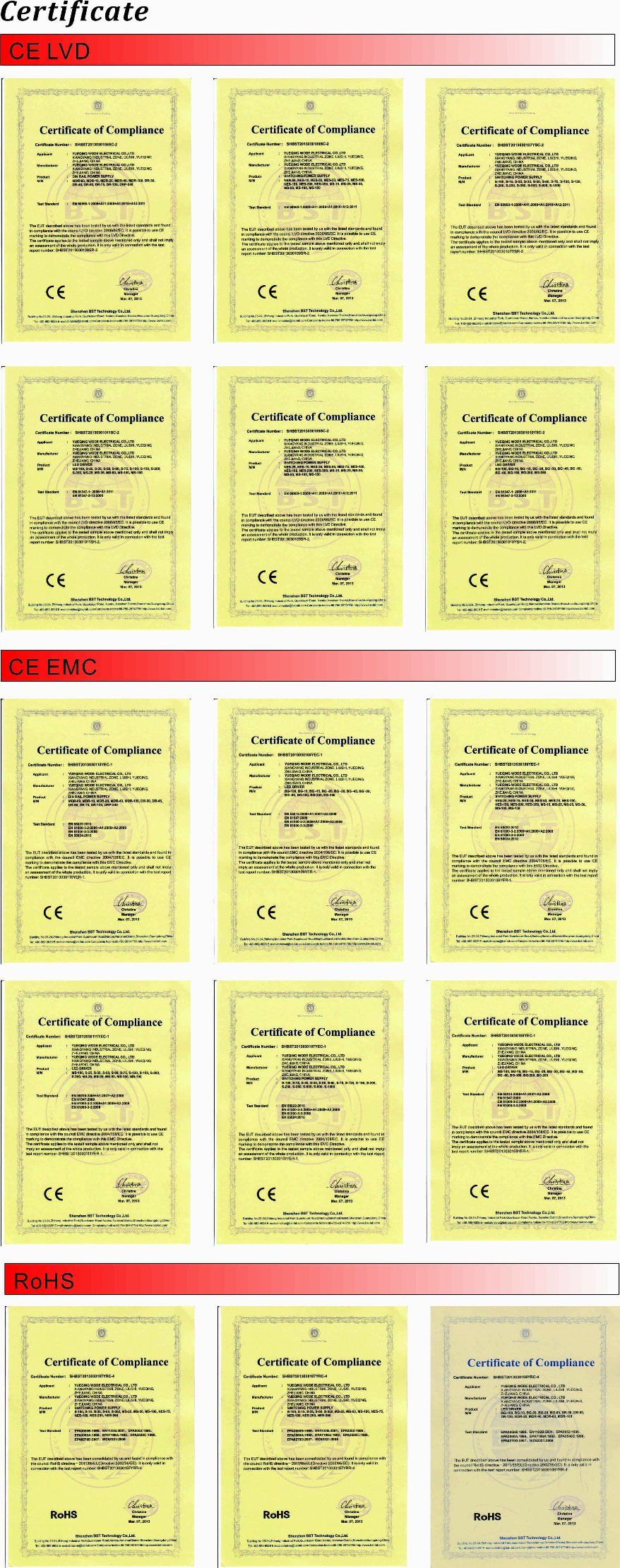

Certification:	RoHS
Warranty:	Lifetime Warranty
Input Voltage:	85~265VAC
Brand:	Waw

Product Description

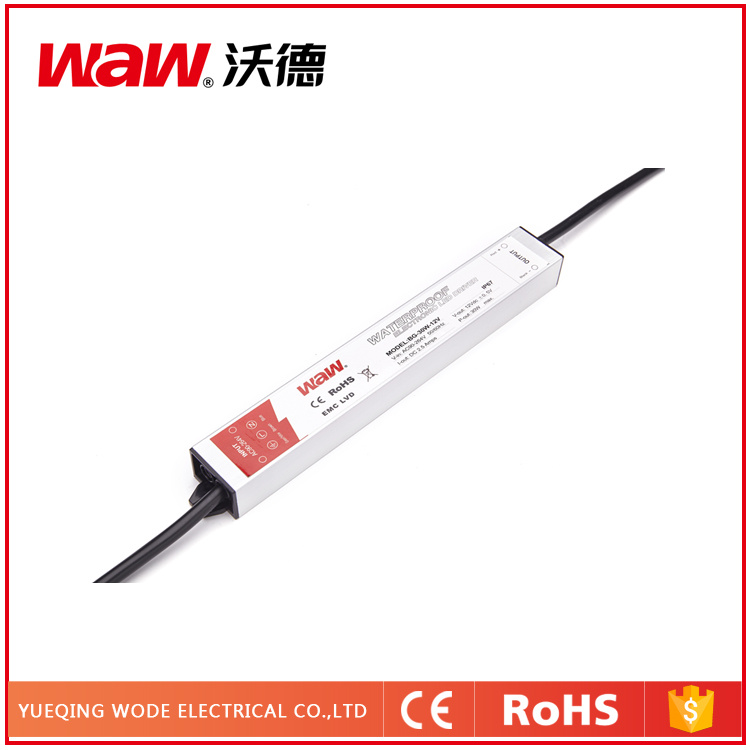

CE RoHS approved 30W 12V 2.5A waterproof LED driver BG-30-12

Product Description

Features

1.High Efficiency and good price

2.Built-in EMI filter

3.100% full load burn-in test

4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit

6.LIFETIME WARRANTY

Specifications

Model	BG-30-12	BG-30-24
DC output voltage	12V	24V
Output voltage error	±1%	±1%
Rated output current	2.5A	1.25
Output current range	0-3A	0-1.5A
Wave and noise	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%
Load stability	±0.5%	±0.5%
DC output power	30W	30W
Efficiency	81%	83%
AC input voltage range	85-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Over load protection	105%~150% rated output power
	Protection:Hiccup mode
Over voltage protection	13~16V	28~32V
	Protection:Shut down output voltage
short circuit protection	Protection:Hiccup mode
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity	-10~+50°C, 20~90%RH
Store temperature and humidity	-20~+85°C, 10~95%RH
Overall dimension	220×30×20mm
Weight	0.24Kgs
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved

Packaging & Shipping

Our Services

Company Information

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
