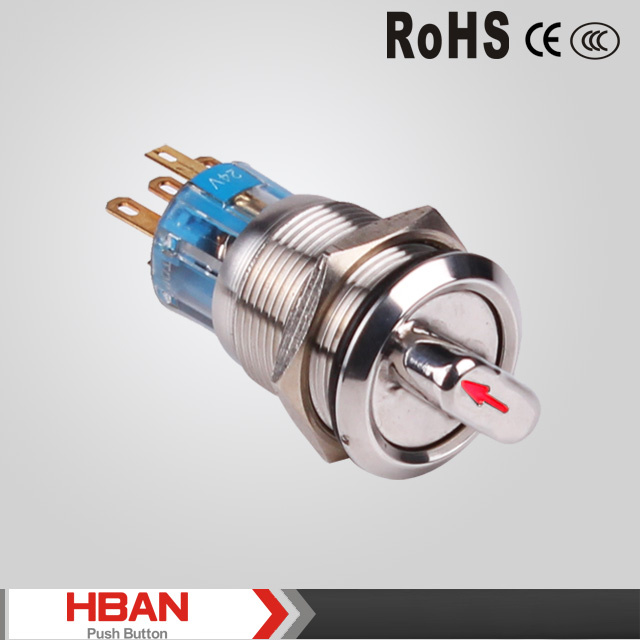

Ce RoHS stainless Steel Three Position Selector Switch

Prod Model:	HBS1-AGQ-11X/21
Item No.:	Hbs1-Agq-11X/21
Switch Rating:	3A/250VAC
Operation Type:	Momentary/Maintain
Operation Position:	2 Position/3 Position
Protection Degree:	IP67,Ik10
Contact Material:	Silver Alloy
Crust Material:	Stainless Steel
Mounting Hole Size:	19mm
Contact Configuration:	1no1nc/2no2nc
Illuminated Type:	Arrow Illumination
Type:	Composite
Usage:	Check Button
Kind:	Double-pole on-off Switch
Brand:	Hban

Product Description

CE ROHS stianless steel three position selector switch

Item No:

HBS1-AGQ-11X/21  (1NO1NC,selector switch 2 position,latching)
HBS1-AGQ-11X/22  (1NO1NC,selector switch 2 position,momentary)
HBS1-AGQ-22X/31 (2NO2NC,selector switch 3position,latching)
HBS1-AGQ-22X/33  (2NO2NC,selector switch 3 position,momentary)


Product Description:

mounting hole size:diameter 19mm
switch rating:3A/250VAC
Contact configuration:1no1nc/2no2nc
operation type:momentary/latching
operation positiion:2 positions/3 positions
protection degree:ip65

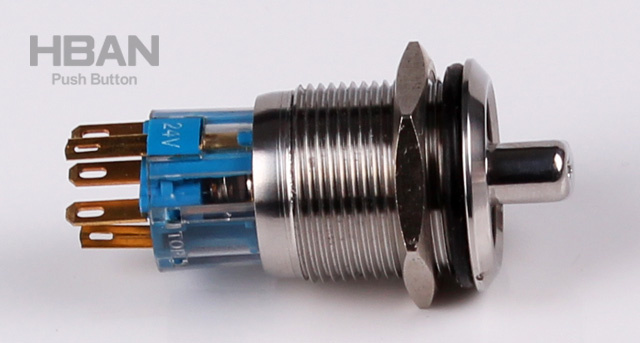

product picture

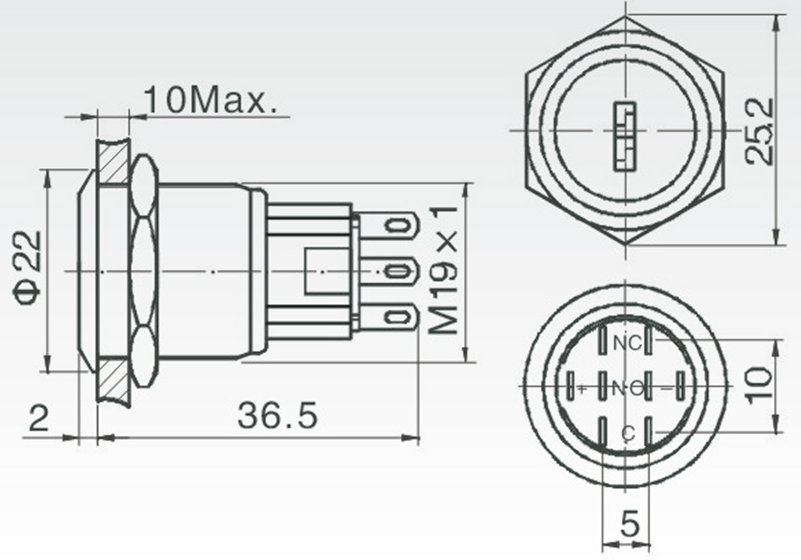

Product drawing:





product specification


item No		HBS1-AGQ-11X/21	HBS1-AGQ-11X/22	HBS1-AGQ-22X/31	HBS1-AGQ-22X/33
Switch rating		5A/250VAC
mounting hole size		19mm
terminal type		pin terminal
contact resistance		≤50mΩ
insullation resistance		≥1000mΩ
dielectric strength		2000VAC
Operating temperature		-25ºC~55ºC
Mechanical life		500,000 times
electrical life		50,000 times
contact material		silver alloy
button material		stainless steel
case material		stainless steel
base material		PBT

Packing details:

We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10 boxes / 20 boxes into A 5 layers corrugated export carton.


Company profile:

Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch,illuminated push button switch, for more than 13 years with CE RoHS UL CCC SGS ISO9001 certificates.

Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.

We can customize push button switch according to your specification, If you have any requirementS or questionS, please feel free to contact us.

We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
