CE Standard Electronic Type RCCB

Name: CE Standard Electronic Type RCCB
Brand: all-electronics-online.com
SKU: 725541225
Availability: InStock
Rating: 4.3 (47 reviews)

Price:	US $ 1.8-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	STR, ALR, EPR, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	230V/400V
No. Of Pole:	1,2,3,4
Rated Sensitive Current:	10,30,100,300mA
Standards:	IEC61009-1
Type Of Tripping:	B,C,D
Width:	35mm DIN Rail
Type Of Terminal:	Lug or Pin
Capacity:	6ka
Protection Degree:	IP20
Protection:	Gound Fault
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Certification:	CCC
Structure:	RCCB
Poles Number:	Customized

Product Description

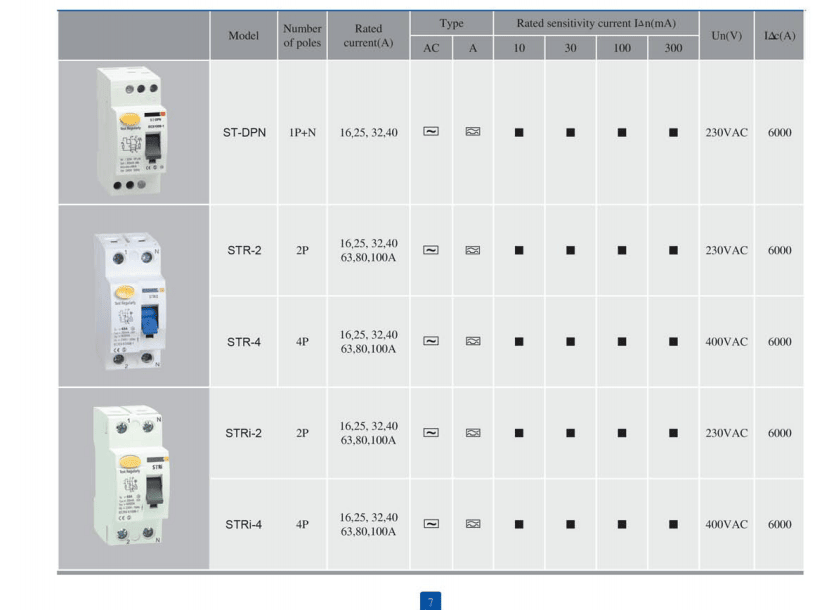

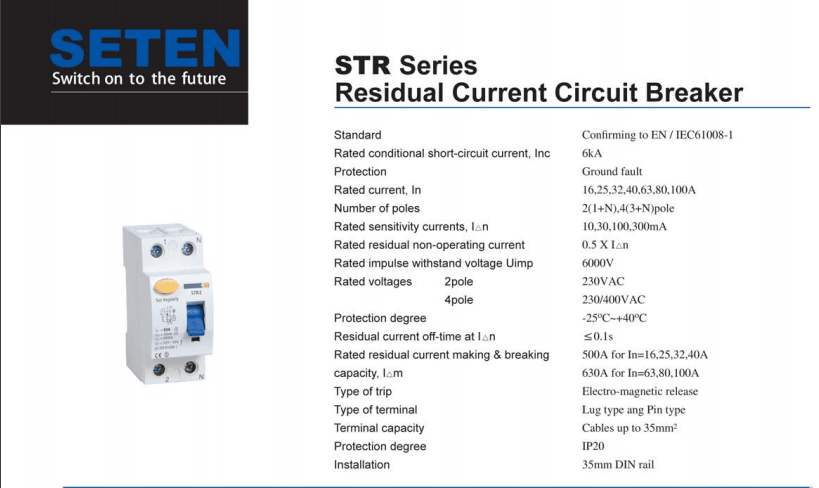

STR1 Series Residual Current Circuit Breaker

Catalogue

Number

Rated

Current (A)

Number

of Pole

Rating

Type

Un(V)

IΔc(A)

STR1-63/2P

16,20,25,32,

40,50,63

10,30,

100,300

AC,A

230VAC

6000

STR1-63/4P

16,20,25,32,

40,50,63

10,30,

100,300

AC,A

400VAC

6000

The RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the fault circuit immediately on the occasion of shock hazard of earth leakage of trunk line. Thus, it is suitable to avoid the shock hazard and fire caused by earth leakage. The RCCB is mainly suitable for useing in varieties of plants and enterprises, buildings constructions. It can be used in circuits up to 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use on DC pulse system.
