| Prod Model: |
HBS1-AGQ-11DT/S, 11DTZ/S, 22DT/S, 22STZ/S |
| Item No.: |
Hbs1-Agq-11d/S |
| Switch Rating: |
5A/250VDC |
| The Front Shape: |
Flat Round |
| The Crust Material: |
Stainless Steel |
| Protection Degree: |
IP67,Ik09 |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Operation Type: |
Momentary |
| Size: |
16mm |
| Contact Configuration: |
1no1nc/ 2no2nc |
| Illumination Type: |
DOT Illumination with Logo |
| Type: |
Composite |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
ISO9001,Ce,RoHS,CCC |
Product Description
CE TUV 19mm metal on off symbol,12v blue led light push button switch
Item No.:HBS1-AGQ-11DT/S (1no1nc,logo with illumination,stainless steel)
HBS1-AGQ-11DTZ/S (1no1nc,latching,stainless steel)
HBS1-AGQ-11DT/S (1no1nc,momentary,logo with illumination,stainless steel)
HBS1-AGQ-22DTZ/S (2no2nc,latching,logo with illumination,stainless steel)
HBS1-AGQ-22DT/N (2no2nc,momentary,logo with dot illumination,nickel-plated brass)
HBS1-AGQ-11DTZ/N (2no2nc,latching,logo with dot illumination,nickel-plated brass)
Mounting Hole Size: Φ 19mm
Switch Rating: 5A/250VDC
The Front Shape: FLAT ROUND
The Crust Material: Nickel-plated Brass / Stainless Steel
Protection Degree: IP67, IK09
Contact configuration:1NO1NC
Specification| Item No | HBS1-AGQ-11DT/S | HBS1-AGQ-11DTZ/S | HBS1-AGQ-22DT/S | HBS1-AGQ-22DTZ/S |
| mounting hole size | 19mm |
| contact confuguration | 1no1nc | 1no1nc | 2no2nc | 2no2nc |
| Switch Type | C(SINGAL BREAKPOINT SNAP-ACTION CHANGEOVER CONTACT) |
| Switch Specification | Ith:5A Ui: 250VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >2,000,000 times |
| Electrical Life | >50,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 2.5-4N |
| Operating Stroke | About 2.8mm |
| Protection Degree | IP67,IK09 |
| Material | Contact | Sliver Alloy |
| Button | Nickel-plated Brass | Stainless Steel |
| Case | Nickel-plated Brass | Stainless Steel |
| Base | PBT |
| lamp parameters | Lamp type | (LED)Dot illumination with logo |
| | lamp color | R/W/G/O/Y/B |
| | Lamp voltage | 6V/12V/24V/26V/110V/220V |
| | Life | 50000hours |

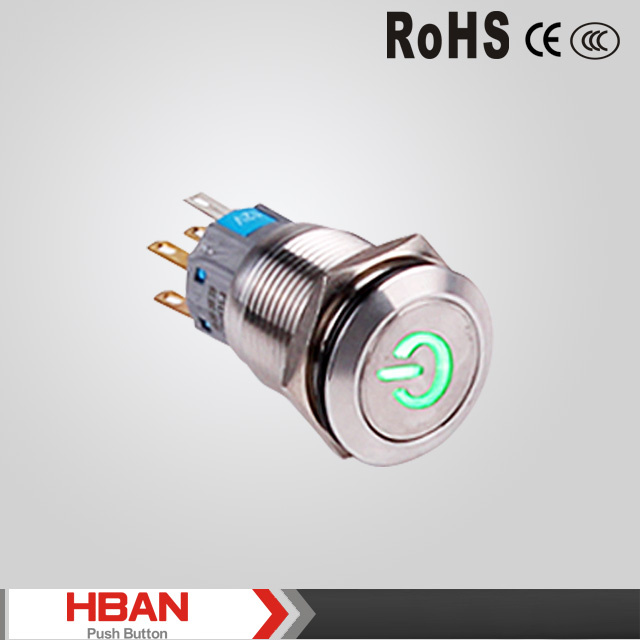

Product picture
Packging Details: We pack 40 pieces diameter 19mm metal push button switches into 1 foam box to protect them. We supply 40 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10boxes / 20 boxes into
A 5 layers corrugated export carton.
