| Prod Model: |
hby5-11ts |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
22mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP40 |
| Crust Material: |
PC |
| Switch Rating: |
10A/600V AC |
| The Front Shape: |
Rectangle/Square/Round |
| Operation Pressure: |
3.5n |
| Operation Stroke: |
About 3.1mm |
| Type: |
Composite |
| Usage: |
Reset Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description

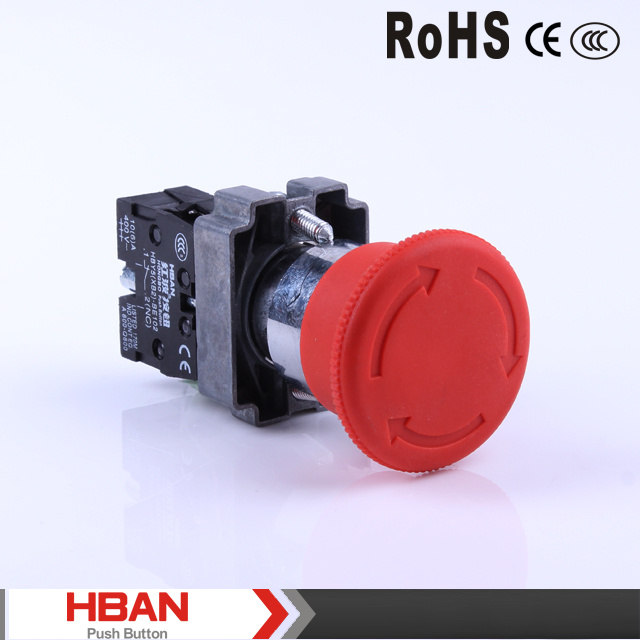

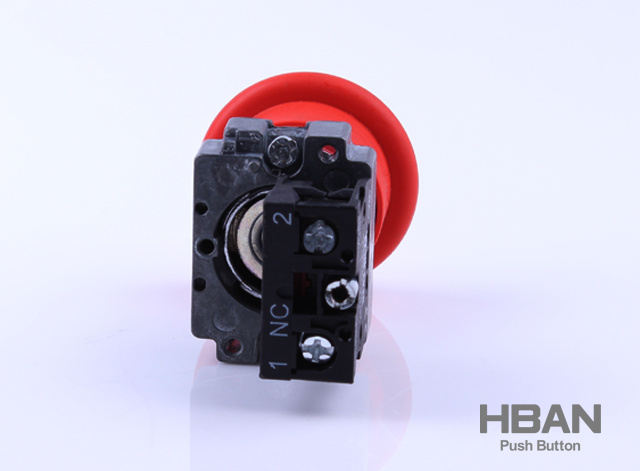

CE TUV 22mm 10A/600V red mushroom head emergency stop switch
Item No:HBY5-01TS
HBY5-11TS
HBY5-02TS
HBY5-22TS
Mounting hole size :22mm
Contact Configuration:1NC/2NC/1NO1NC/2NOCNC
Head shape:Round
Operation Type:Momentary/Latching
Terminal type :Screw terminal
IP Degree:IP40
Tel:0086-577-62708000 Fax :0086-577-62708007
| Item NO. | HBY5-01TS | HBY5-11TS |
| Front Head Shape | Round,Red,emergency stop,1NC | Round,Red,emergency stop,1NO1NC |
| Item NO. | HBY5-02TS | HBY5-22TS |
| Front Head Shape | Round,Red,emergency stop,2NO | Round,2NO2NC,emergency stop,Red |
| Terminal Type | Screw terminal |
| Switch Type | 1NC/1NO1NC/2NO2NC |
| Switch Specification | 5A/250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100 MΩ |
| Dielectric Strength | 2000V,AC 50Hz,1 min |
| Operating Temperature | 1000V,AC 50Hz,1 min |
| Shock Resistance | ≥10g |
| Operating Temperature | -25°C ~ +55°C |
| Mechanical Life | 1,000,000 times |
| Electric Life | >30,000 times |
| Operating Stroke | About 3 mm |
| Protection Degree | IP40 |
| Material | Contact | Sliver ,Sliver Alloy |
| Rated insulation voltage | AC600V |
| Heating current | 10A |
| Rated Current | 24V | 48V | 110V | 220V | 380V | 500V |
| DC | | | 2.2A | 1.1A | | |
| AC PF=0.7 | 8A | 4A | 10A | 6A | 4A | 2A |
Packing Details:We pack 40 pieces diameter 19 mm push button switch into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates. Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
