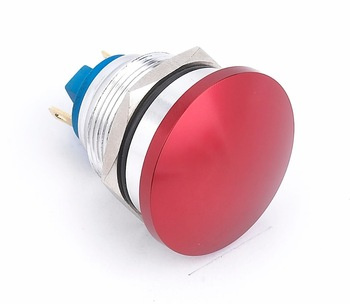

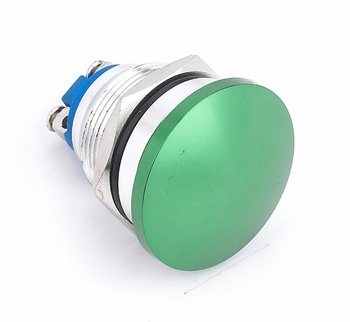

Ce TUV 22mm Mushroom Head Screw Terminal Type Momentary Push Button Switch
| Price: |
US $ 1.8-2.6/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HBGQ22M-10/T |
| Item No.: |
Hbgq22m-10/L/T |
| Switch Rating: |
2A/36VDC |
| The Front Shape: |
Mushroom |
| The Crust Material: |
Nickel-Plated Brass, Stainless Steel, Zn Al Alloy |
| Protection Degree: |
IP65, Ik08 |
| Contact Configutation: |
1 No |
| Contact Material: |
Silver Alloy |
| Terminal Type: |
Screw Terminal |
| Certificate: |
UL SGS Ce RoHS TUV ISO9001 |
| Operation Type: |
Momentary |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Brand: |
Hban |
| Contact Type: |
Type X Contact |
| Certification: |
ISO9001, Ce, RoHS, CCC |
Product Description
CE TUV 22mm mushroom head screw terminal type momentary push button switchItem No.:HBGQ22M-10/L/N (1NO,MOMENTARY,NICKEL-PLATED BRASS)
HBGQ22M-10/L/S (1NO,momentary,screw terminal,stainless steel)
HBGQ22M-10/L/A (1NO,Momentary,screw terminal,zn-al alloy)

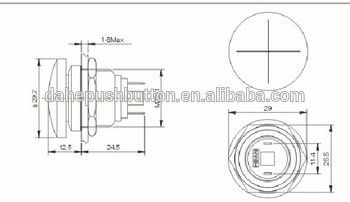

HBGQ22M-10/J/A (1NO,Momentary,pin terminal.zn-al alloy)Mounting Hole Size: Φ 22mm
Switch Rating: 2A/36VDC
The Front Shape: DOMED
The Crust Material: Nickel-plated Brass / Stainless Steel / Zn-al alloy
Protection Degree: IP65, IK08
terminal type:pin terminal / screw terminal
contact configuration:1no (1nc can be made to order)
contact material:silver alloy | Item No. | HBGQ22M-10/L/T | HBGQ22M-10/T |
| Specification | 1NO Momentary | 1NO Momentary |
| Terminal Type | SCREW TERNIMAL | Pin terminal |
| Switch Type | X( TWO TERNIMAL BREAKPOINTS SLOW MOVING CONTACT) |
| Switch Specification | Ith:2A Ui: 36VDC |
| Contact Resistance | ≤50m Ω |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000V AC |
| Operating Temperature | -20degree~+55degree |
| Machanical Life | >2,000,000 times |
| Electrical Life | >50,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5~14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8 mm |
| Protection Degree | IP65,IK08 |
| Material | Contact | Sliver Alloy |
| Button | Nickel-plated Brass/ zn al-alloy | Stainless Steel |
| Case | Nickel-plated Brass / zn al-alloy | Stainless Steel |
| Base | PBT |
Packging Details: We pack 20 pieces diameter 16mm metal push button switches into 1 foam box to protect them. We supply 20 pieces rubber rings and 1 piece guarantee card with these switches. Then we packed this foam box into a plastic bag, it will packed into a small box with 3 layers corrugated. Finally, we packed 10boxes / 20 boxes into
A 5 layers corrugated export carton.About Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,
Electronics, production control, medical, banks, ships, automation and other
Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
