Ce TUV Hby5 Series 22mm 10A/250V Momentary Latching LED Push Button Switch
| Price: |
US $ 2.06-2.14/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HBY5-10D |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
22mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP40, Ik09 |
| Crust Material: |
PC |
| Panel Thickness: |
0.5~5mm |
| Iimpact Resistance: |
Grater Than 10g |
| Operating Stroke: |
5.5mm |
| Max Withstand Voltage: |
3000VAC |
| Type: |
Composite |
| Usage: |
Start Button |
| Kind: |
Double-pole on-off Switch |
| Brand: |
Hban |
Product Description

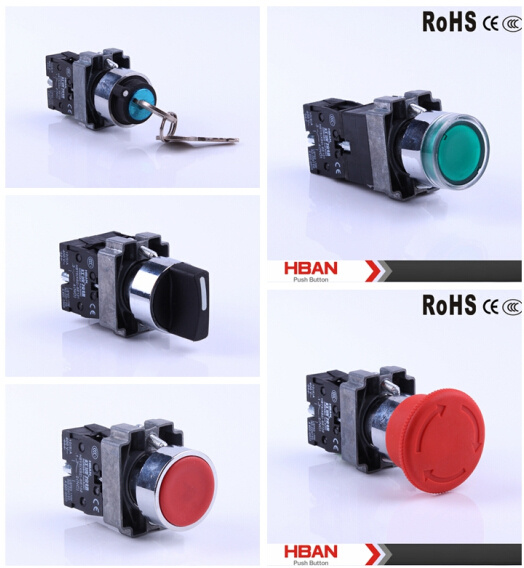

CE TUV HBY5 series 22mm 10A/250V momentary latching LED push button switch Item NO: HBY5-10D (Momentary,led)
HBY5-10 (momentary,1NO)
HBY5-11X/2 (Selector switch,2 positions)

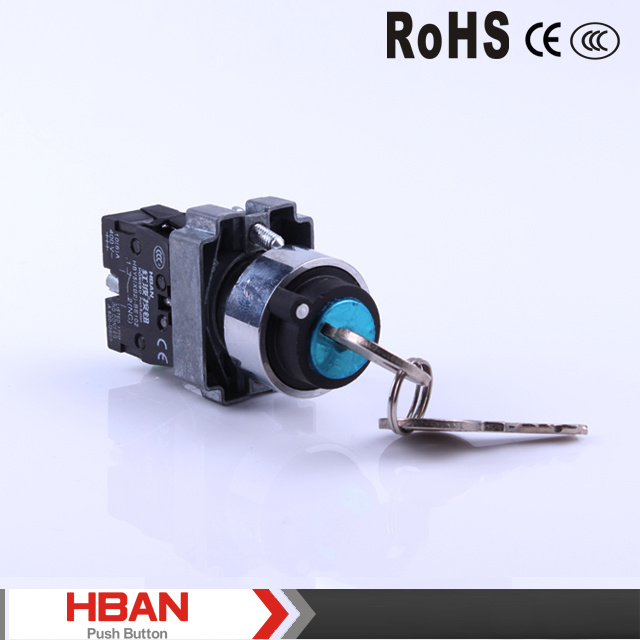

HBY5-11Y/2 (key switch, 2 positions)

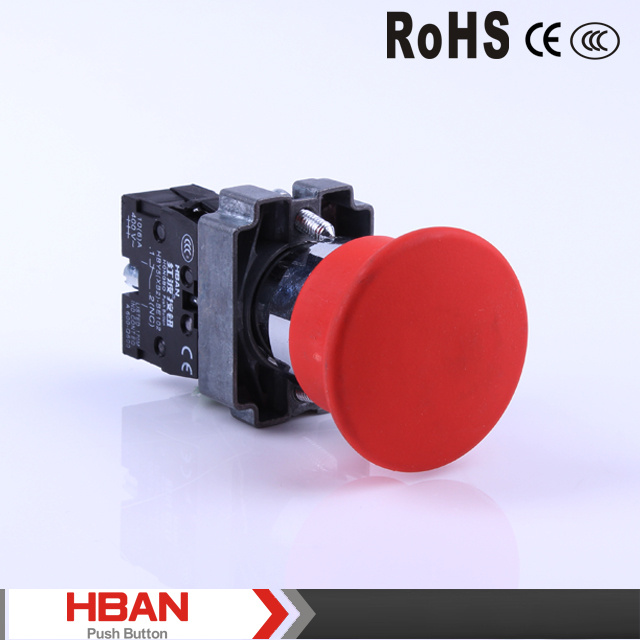

HBY5-10TS (mushroom head emergency stop switch)
Mounting Hole Size:dia.22mm
Lamp Type:LED
Protection Degree:IP40,IK10
Lamp Color:Red / Green / Yellow / Orange / Blue / White
The Crust Material: PC
CE ROHS CERTIFICATE
PUSH BUTTON SWITCH
Item NO. | HBY5-10Dseries |
| Specification | push button switch |
| Head Shape | Flat |
| Terminal Type | Screw Terminal |
| Dielectric Strength | 2000VAC |
| Operating Temperature | -20 degree ~ + 55 degree |
| Panel Thickness | 5.5 mm |
| Torque | 2~5Nm |
| Protection Degree | IP40,IK10 |
| Material | Shade | PC |
| Case | PC |
| Base | PBT |
| Lamp Specification | Type | LED illumination |
| Rated Voltage | 2V /6V/12V/24V/36V/110V/220V |
| Rated Current | About 30mA ~1 mA |
| LED Color | Red /Green/Yellow/Orange/Blue/White |
| LED Lifetime | 50000 hours |
y5
Packing Details:We pack 20pieces diameter 22 mm push button switch into 1 foam box to protect them .We supply 20pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.About Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push button
Switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.
Our products are widely used in machinery, machine tools, electric power,Electronics, production control, medical, banks, ships, automation and other Industries.
We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.
We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .
Tel: 0086-577-62708000 Fax: 0086-577-62708007 Other imformation:1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer.
2) over 13 years experience of manufacture and selling
3) lowest price from factory
4) up to 5 years product quality warranty
5) safety payment methods including paypal,western union,T/T,moneygram
6) specially customizing products as per your requests
7) products with CCC CE ROHS UL ISO9001 SGS TUV certification
8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight
9) providing samples for free befor placing order
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
Tel: 0086-577-62708000 Fax: 0086-577-62708007
