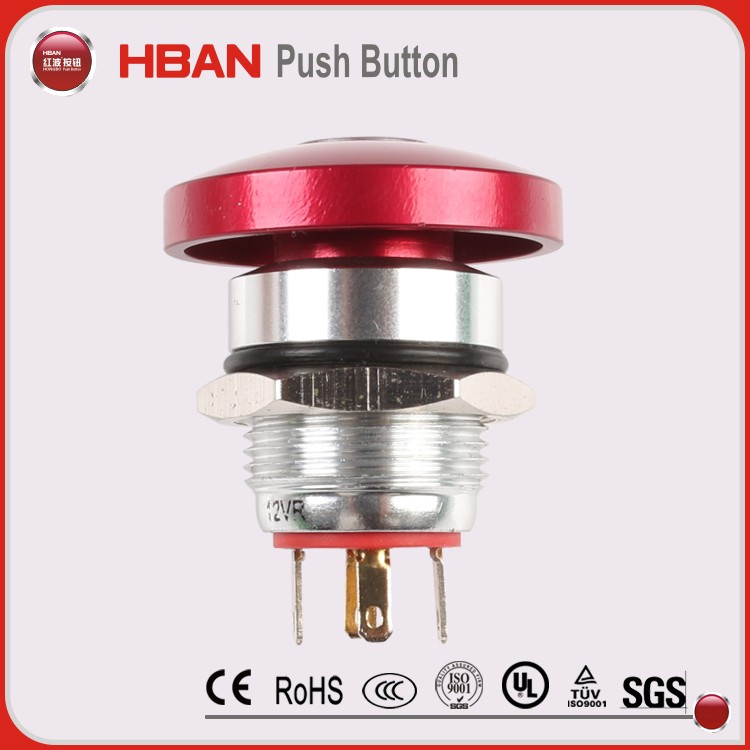

Ce UL Red Mushroom LED Push Button Switch with DOT LED Light

Ce UL Red Mushroom LED Push Button Switch with DOT LED Light
Price: US $ 0.1-2.31/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: HBGQ16M-10D/J/T
Mounting Hole Size: 16mm
Switch Rating: 2A/36VDC
Contact Configuration: 1no
Operation Type: Momentary
Terminal Type: Pin Terminal
The Front Shape: DOT Illuminated Mushroom
Crust Material: Zn-Al Alloy
Protection Degree: IP65 Ik09
Mechanical Life: 1000000
Electrical Life: 200000
Type: Normal Open
Usage: Start Button
Kind: Single-pole on-off Switch
Contact Type: Type X Contact
Brand: Hban
Certification: RoHS TUV

Product Description

CE UL red Mushroom led push button switch with dot led light



1.Specification

Mounting hole size:16mm
Switch Rating:2A/36VDC
Contact confirguration:1NO
Operation Type:Momentary
The front shape:Mushroom
The crust material:Zn-al alloy


SpecificationHBGQ16M-10/J/T
The Front ShapeMushroom
Terminal TypePIN Terminal(2x0.5mm)
Switch TypeTwo terminal breakpoints slow moving contact
Switch Specification2A/36VDC
Contact Resistance<50mΩ
Insulation resistance>1000mΩ
Dielectric Strength2000VAC
Operation Temperature-20ºC~ 55ºC
Mechanical Life>1,000,1000 times
Elecrical Life  >200,000 times
Panel Thickness1~10mm
Torque5-14Nm
Operation Pressureabout 4N
Operation Strokeabout 1.5mm
Protection DegreeIP65 IK08
Material                                         Znal alloy
ContactSilver Alloy
ButtonZn-al alloy
CaseZn-al alloy
BasePBT
Lamp Parameters
TypeDot-Illumination
Rated Voltage2V/6V/12V/24V/36V
ColorR/G/B/Y/W/O
Life50000 Hours







2.Package:
ITEMPC/BOXBOX/CTNPCS/CTNCBM
HBGQ16M-10D40251000435X380X335


3.Application
