Cebr7 Residual Current Breaker with Overload Protection

Name: Cebr7 Residual Current Breaker with Overload Protection
Brand: all-electronics-online.com
SKU: 615750364
Availability: InStock
Rating: 5 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEBR7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	2
Structure:	Conventional Circuit Breaker

Product Description

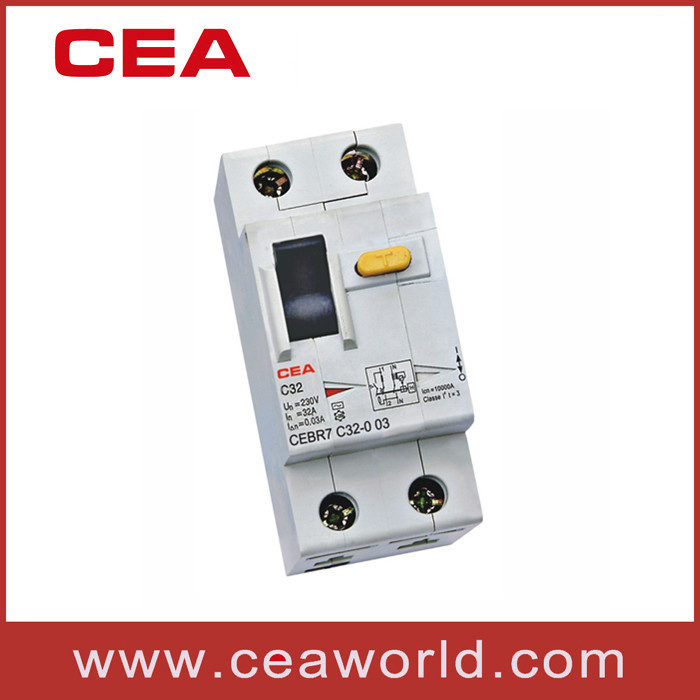

CEBR7 Residual Current Breaker With Overload Protection(RCBO)
Poles Number: 2P

Application:
CEBR7 RCBO, function as combination of circuit breaker and residual current device, which protect human from the fault of electric because of over-current, short circuit, earth fault current. OLLB7 is self-protecting up to a maximum short-circuit current 63A. All breaking capacities comply with Standard IEC/EN 61009.

Techincal Data:
1. Residual current device with overcurrent protection
2. Combine in residual current device function and MCB over-current protection function
3. Short circuit capacity: 6KA
4. Rated current(A): 6, 16, 20, 25, 32, 40, 50, 63A
5. Rated leakage operating current(mA): 30, 100, 300mA
6. AC and A types, B-C characteristic
7. Modular DIN Rail products 35mm.

Standard	IEC61009,GB16917,BS EN61009
Rated VOltage(Un)	2Pole:230V AC
Rated Current(In)	25,32,40A
Rated Residual Operating Current(I n)	30,100,300,500mA
Rated Residual Non-operating Current(I no)	0.5I n
Rated Current off-time	<=0.1s
Minimum Value of Rated Operating and Breaking Capacity(lm)	500A
Rated Conditional Short-circuit Current(Inc)	3kA
Installation	On symmetrical DIN rail

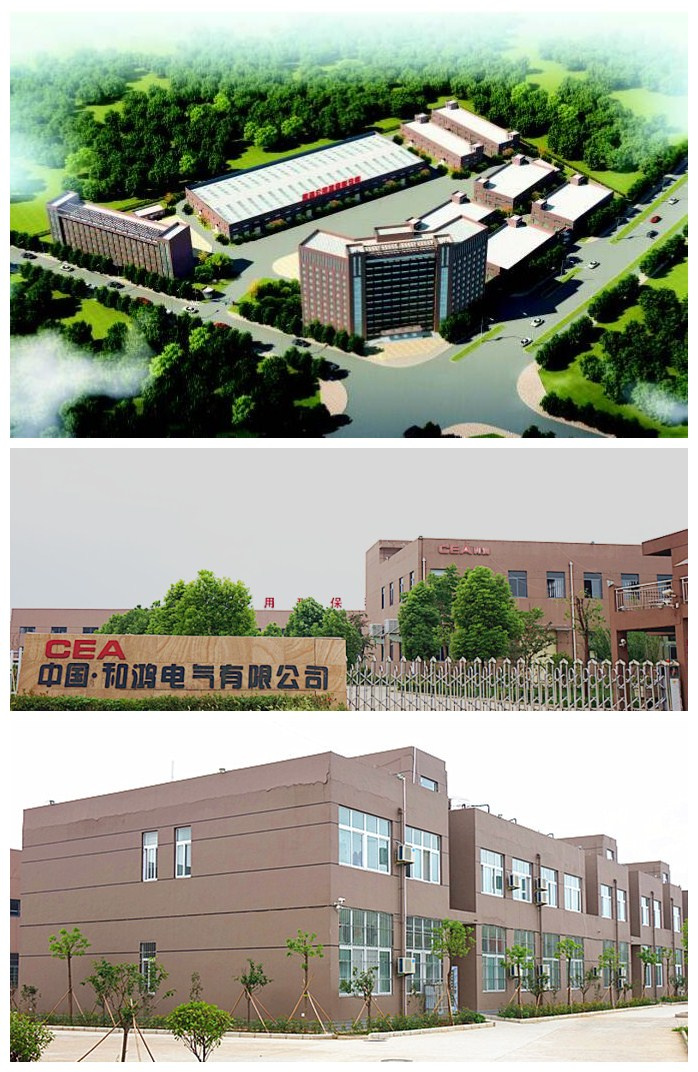

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

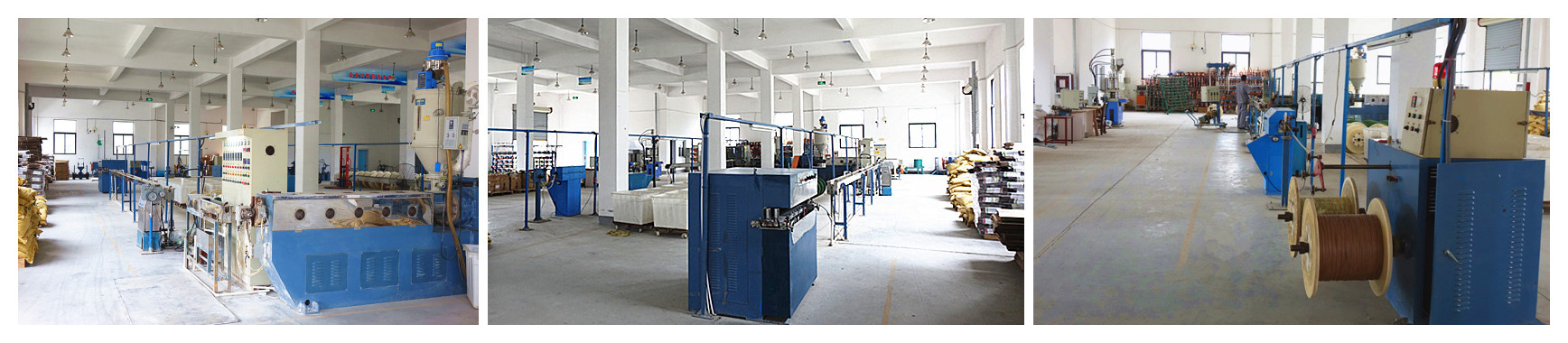

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
