| Prod Model: |
GYFXTY-FL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Armored: |
No Armored |
| Fiber Type: |
G652D |
| Fiber Material: |
Doped Silica |
| Strength Member: |
Two Parallel FRP |
| Material Of Jacket: |
HDPE/Lszh /Flame Retardant Sheath |
| Tube: |
Central Loose Tube |
| Bend Radius: |
Static 10*Cable-D: Dynamic 20*Cable-D |
| Applications: |
Aerial, Conduit, Underground |
| Fiber: |
Single Mode |
| Certificate: |
ISO9001 Tlc RoHS |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
Other |
| Core: |
2-24 Cores |
| Brand: |
Efon |
| Sheath Material: |
PE/Lszh Sheath/Flame Retardant PE/Anti-Rodent PE |
Product Description

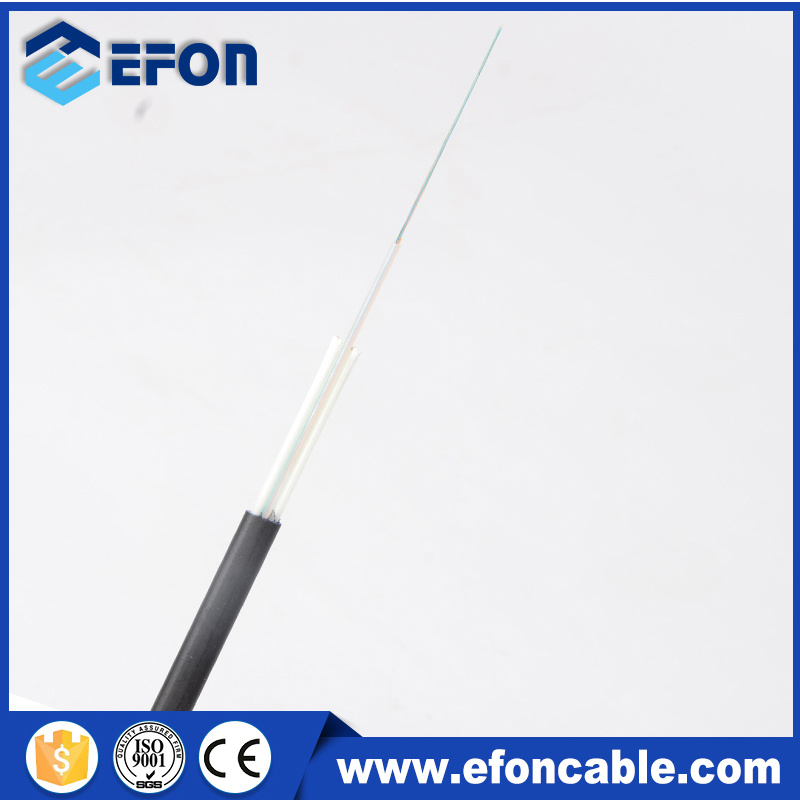

Central Tube FRP Strength Member 6Core Singlmode Fiber Optic Cable
Description:
Designed for quick installation and ease in handling, EFON Flat-Span Drop cable serves as the last link for the FTTx networks of today. The design is Uni-Loose Tube containing up to 24 fibers.Two embedded FRP member to provide the mechanical properties of the cable. The finished product, with its compact size, acts as a self-supporting aerial solution for those last mile drops to the customer's home or office.

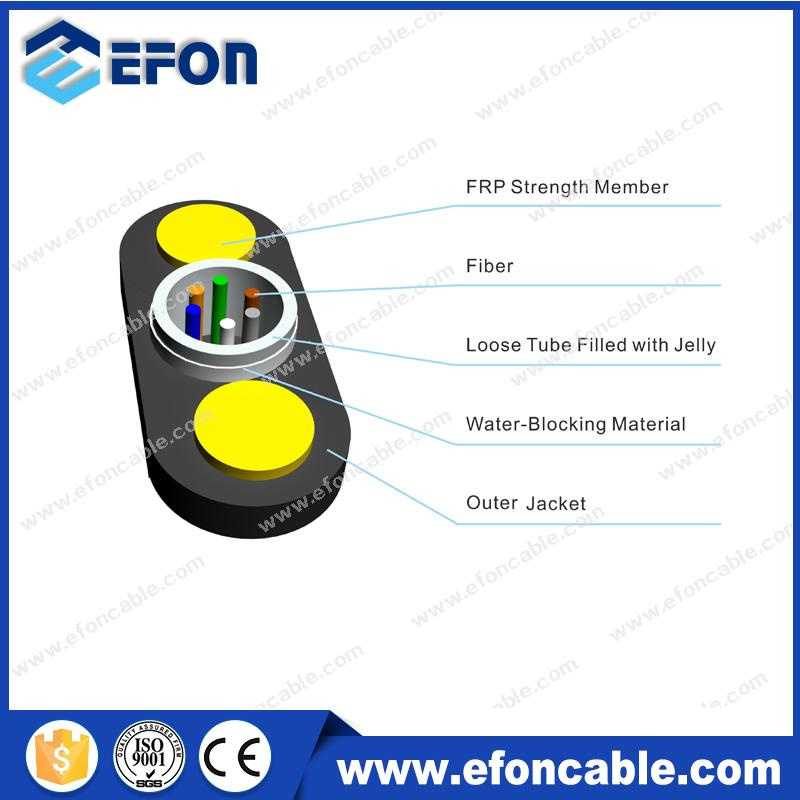

Product Construction:
Fiber:
2-24 fibers
Uni-loose tube gel-filled
Strength Member:
Embedded FRP (Fiber glass reinforce plastic)
Outer Jacket:
Black UV and waterproof polyethylene (PE).
Features:
- Compact size, use universal cable clamp make installation easily.
- Uni-tube gel-filled construction for superior fiber protection.
- Two embedded FRP member to provide high tensile and crush resistance.
- UV and waterproof design.
- Designed for use with inexpensive attachment hardware.
- Self-supporting no messenger needed.
Applications:
- Aerial installation.
- FTTx, access.
Optical Characteristics:
Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m |
Attenuation (+20X) | 850 nm | | | <3.0 dB/km | <3.3 dB/km |
1300 nm | | | <1.0 dB/km | <1.0 dB/km |
1310 nm | <0.36 dB/km | <0.40 dB/km | | |
1550 nm | <0.22 dB/km | <0.23 dB/km | | |
Bandwidth | 850 nm | | | >500 MHz-km | >200 Mhz-km |
1300 nm | | | >500 MHz-km | >500 Mhz-km |
Numerical Aperture | | | 0.200±0.015 NA | 0.275±0.015 NA |
Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | | |
Structure and Technical Specifications
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance
(N/100mm) | Aerial Install span with 1%sag |
Short Term | Long Term | Short Term | Long Term | NESC Light | NESC Medium | NESC Heavy |
2~12 | 4.5×8.0 | 39 | 1500 | 600 | 1000 | 300 | 100meters | 70meters | 50meters |
14~24 | 4.9×8.4 | 45 | 1500 | 600 | 1000 | 300 | 80meters | 60meters | 40meters |
Note: Larger spans can be achieved if necessary with installation sags larger than 1% of span.
This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more
detailed information.
Hybrid designs (containing single mode and multi mode fiber) and composite designs (containing copper conductors)
are also available.
