| Prod Model: |
SD1000A1600V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Vrrm: |
200V-5000V |
| If: |
1000A |
| Irrm: |
80mA |
| Vfm/Ifm: |
2.0V/3000A |
| Manufacturing Technology: |
Discrete Device |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
Ceramic Seal |
| Application: |
Inverter, Welder, AC DC Motor Control |
| Model: |

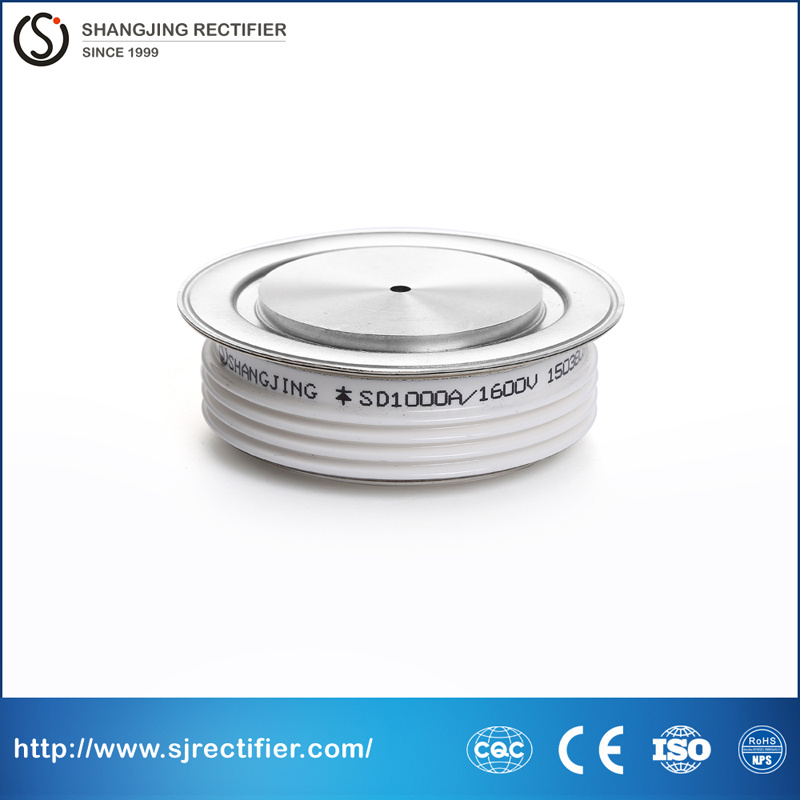

SD1000A1600V |
| Batch Number: |
2016+ |
| Brand: |
Shangjing |
Product Description
Features1. All diffuse te chinics
2. Ceramic type seal
3. Bifacial cooled
4. Typical Applications
5. Big power transformer
6. Welder
7. Motor control
8. Charger
Typical Application1. Big power transformer
2. Welder
3. Charger
4. Motor control
FAQ
1. A: Could I put my own logo on the product?
Q: Sure, our customers' logo can be printed or put on Ceramic Disc Type Seal Rectifier Diode
.
2. A: How about the longevity of the item?
Q: It's beyond 180 days.
3. A: How about the certificates?
Q: CE, RoHS, ISO, etc.
4. A: Could you supply original import semiconductors?
Q: Yes, the variety of original import semiconductors could be provided for clients, such as westcode, Eupec, Mitsubishi, TOSHIBA, POSEICO, etc.
5. A: Could I buy 1 pc sample in first and small order?
Q: Of course, we support sample order and small order, especially for new customers under certain condition.
6. A: How much for 1 pc sample?
Q: Based on what kind of sample the client need.
7. A: How long does it take to make a sample?
Q: It's normally within one week.
Thanks for your reading. If any product meets your need, welcome to send us an email. We're sure that any of your information will be attentioned without any delay.| Type | VRRM | IF(AV) | IRRM | VFM/IFM | Rth(J-hs) | Tjm | M 2 | Outline |
| THS55° C |
| 25° C |
|
|
|
| V | A | mA | V/A | ° C /W | ° C | kN |
| SD200C | 200-3000 | 200 | 16 | 1.8/600 | 0.090 | 150 | 3.3-5.5 | E1/E2 |
| SD300C | 200-3000 | 300 | 30 | 1.8/900 | 0.065 | 150 | 5.3-10 | E1/E2 |
| SD400C | 200-3000 | 400 | 40 | 1.8/1200 | 0.040 | 150 | 10-20 | E1/E2 |
| SD500C | 200-5000 | 500 | 40 | 1.8/1500 | 0.040 | 150 | 10-20 | E2/E3/E5 |
| SD600C | 200-5000 | 600 | 40 | 1.8/1800 | 0.033 | 150 | 10-20 | E3/E5 |
| SD800C | 200-5000 | 800 | 80 | 2.2/2400 | 0.022 | 150 | 19-26 | E5/E6 |
| SD1000C | 200-5000 | 1000 | 80 | 2.0/3000 | 0.022 | 150 | 19-26 | E5/E6/E8 |
| SD1200C | 200-5000 | 1200 | 120 | 2.2/3000 | 0.020 | 150 | 21-30 | E8 |
| SD1500C | 200-5000 | 1500 | 120 | 2.0/3000 | 0.020 | 150 | 21-30 | E8/E9 |
| SD2000C | 200-5000 | 2000 | 160 | 2.2/4000 | 0.016 | 150 | 30-40 | E11/E12/E13 |
| SD2500C | 200-5000 | 2500 | 200 | 2.2/5000 | 0.011 | 150 | 35-47 | E11/E12/E13 |
| SD3000C | 200-5000 | 3000 | 160 | 2.0/5000 | 0.016 | 150 | 30-40 | E11/E12/E13 |
| SD3500C | 200-5000 | 3500 | 200 | 2.0/5000 | 0.011 | 150 | 35-47 | E14/E15 |
| SD4000C | 200-5000 | 4000 | 200 | 2.0/5000 | 0.009 | 150 | 70-85 | E14/E15 |
| SD5000C | 200-5000 | 5000 | 200 | 2.5/5000 | 0.0135 | 170 | 70-85 | E14/E15 |
