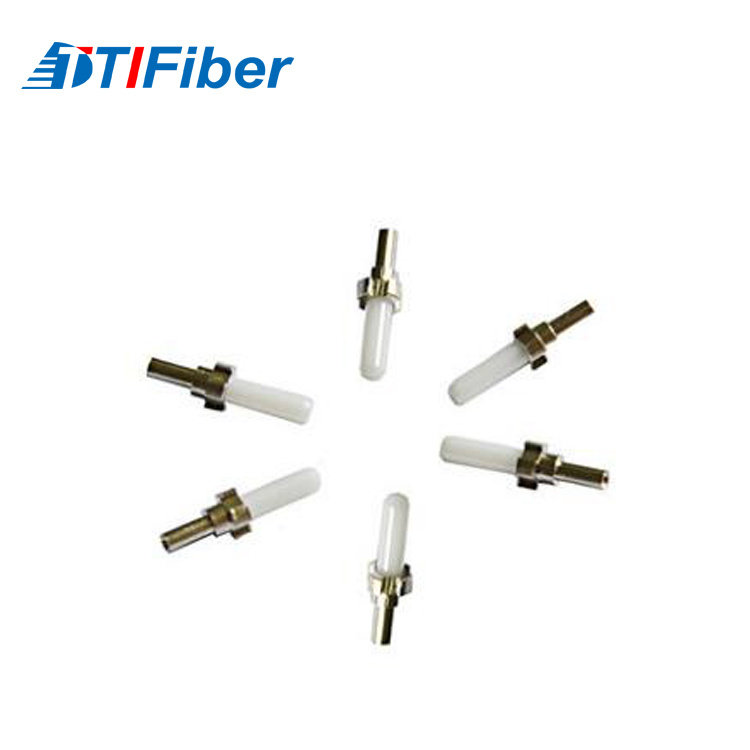

Ceramic Singlemode Mu Fiber Optic Ferrule

Name: Ceramic Singlemode Mu Fiber Optic Ferrule
Brand: all-electronics-online.com
SKU: 771667025
Availability: InStock
Rating: 4.6 (102 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	mu ferrule
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	PC, Upc/APC
Material:	Ceramic/Zirconia, Metal
Diameter:	2.5mm(FC/Sc/St), φ1.25mm (LC)
Transmission Medium:	Single-Mode
Structure:	MU
Number Of Cores:	Single-Core
Ferrule Endface:	PC(',UPC)
Connector Type:	Mu

Product Description

Quick Detail:

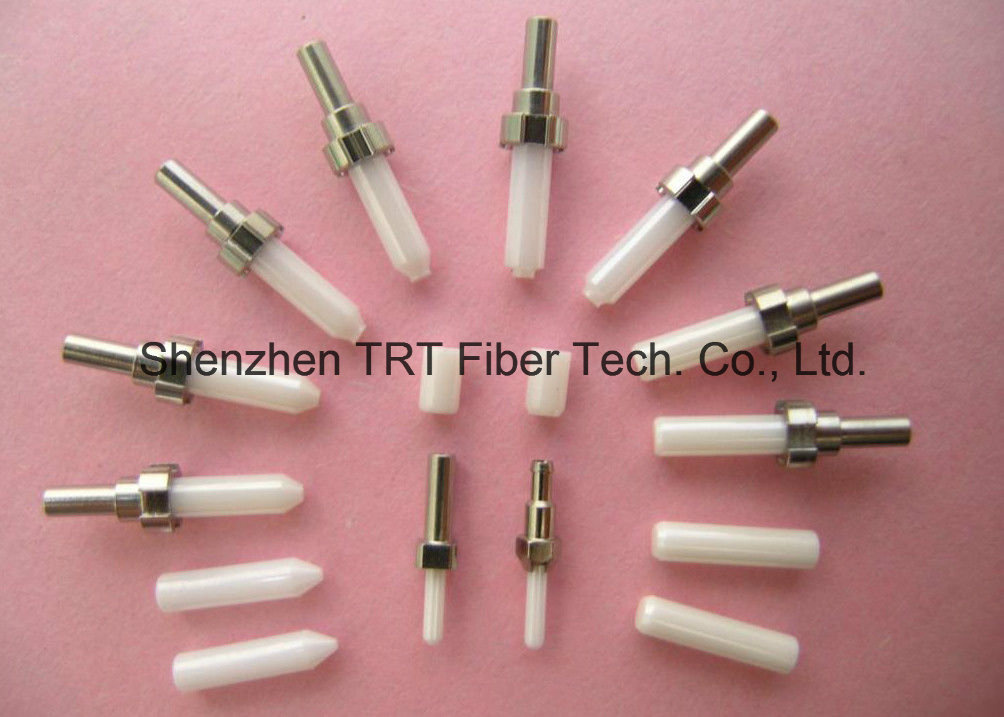

Name: MU Fiber Ferrule
Type: Standard, Angle, Step
Material: Ceramic/Zirconia, Metal
Ferrule End-face: UPC APC
Outer Diameter : φ2.5mm(FC/SC/ST), φ1.25mm(LC/MU)
Inner Diameter: 125,125.5,126um(SM), 127,128um(MM)

Description:

Fiber optic ceramic ferrules are important component of optical connectors and fiber optic patch cord.

Features:
High reliability
High reflectivity
High quality and competitive price
Good the coaxial tolerance and size accuracy
Properties of high intensity, the wear resistance, high anti-aging
Low insertion loss, high frequency of insert

Application:

Applied for fiber connector/pigtail/patch cord
Data network communication
CATV LAN & WAN
Telecommunication

Specification:

Material	Zirconia (Ceramic)
OD ( outer diameter )	2.499mm +/-0.0005(SM)
OD ( outer diameter )	2.499mm +/-0.001(MM)
ID	125,125.5,126um(SM)
	+1um/-0
	127,128um(MM)
	+3um/-1um
Concentricity	<1.0um(SM) <4.0um(MM)
Length	10.5mm+/-0.05mm
Flange	SUS303
Flange	Brass

Shenzhen TRT Fiber Tech. Co., Ltd is specialized in R&D, manufacturing and marketing of fiber optic such as fiber optic cable, fiber optic patch cord/jumper, fiber pigtail, fiber connector, fiber adapter, fiber attenuator, fiber patch panel, ODF, fiber splice closure and other related fiber products.

With a powerful R&D team, TRT Fiber is able to manufacture products according to customer's specifications and requests, even with customized raw materials. We not only offer OEM service, but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service. We ensure every piece of our fiber optic products is with excellent performance and appearance.

TRT has been putting a lot of investments to keep pace with fiber optic industry standard. With high quality raw materials, advanced manufacturing equipments and highly skilled workers, we ensure every piece of our fiber optic products is with excellent performance and appearance.

Welcome to be TRT business partners, we are sure to bring you more profits. Thank you.
