Ces 2p Series Residual Current Device (CES 2P)

Name: Ces 2p Series Residual Current Device (CES 2P)
Brand: all-electronics-online.com
SKU: 615750634
Availability: InStock
Rating: 5 (77 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CES 2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Operation:	Electromagnetic
Structure:	Conventional Circuit Breaker

Product Description

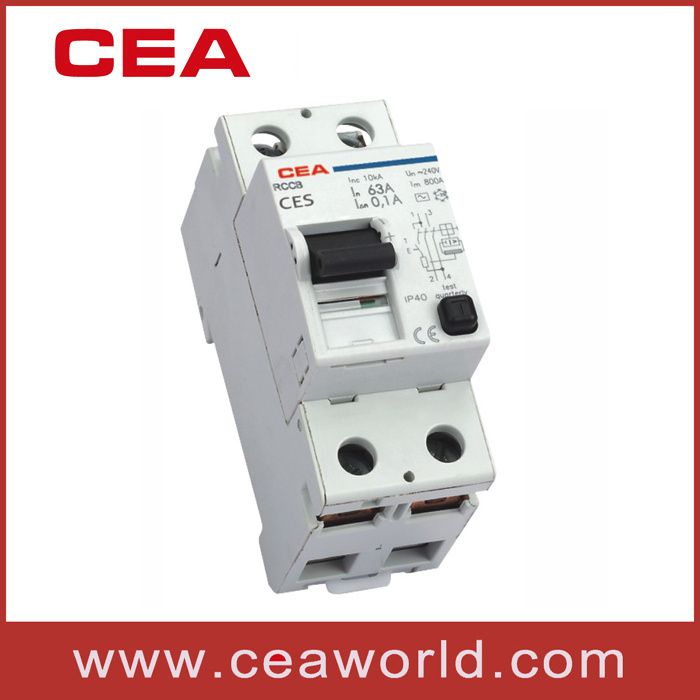

CES 2P series Residual current breaker (without over-current protection)

APPLICATION
DFS series Residual current breaker (without over-current protection) is suitable
For the line of AC 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A.

When there is human electricity shock or if the leakage current of the line
Exceeds the prescribed value, it will cut off the power rapidly to protect human
Safety and prevent the accident due to the current leakage. It can be used as
Infrequent changeover of the line in normal situation. It is applicable to industrial
Site, commercial site, tall building and civil house.

It complies with standard of IEC/EN61008.1 and GB16916.1
SPECIFICATION:

Frame class	63A
Rated working voltage	240/415V
Rated frequency	50/60Hz
Rated working current	16, 25, 40, 63A
Rated residual operating current	0.03, 0.1, 0.3, 0.5A
Rated residual un-operating current	0.015, 0.05, 0.15, 0.25A
Sensibility	A & AC Type
Maximum operating time	IΔ n t≤ 0.1s, 5IΔ n t≤ 0.04s
Rated making and breaking capacity	In≤ 50A 500A, In≤ 63A 630A
Limiting value of un-operating current	6In
Rated limiting short-circuit current	6000A
Pole number	2P, 4P
Mechanical life	10000
Electric life	4000

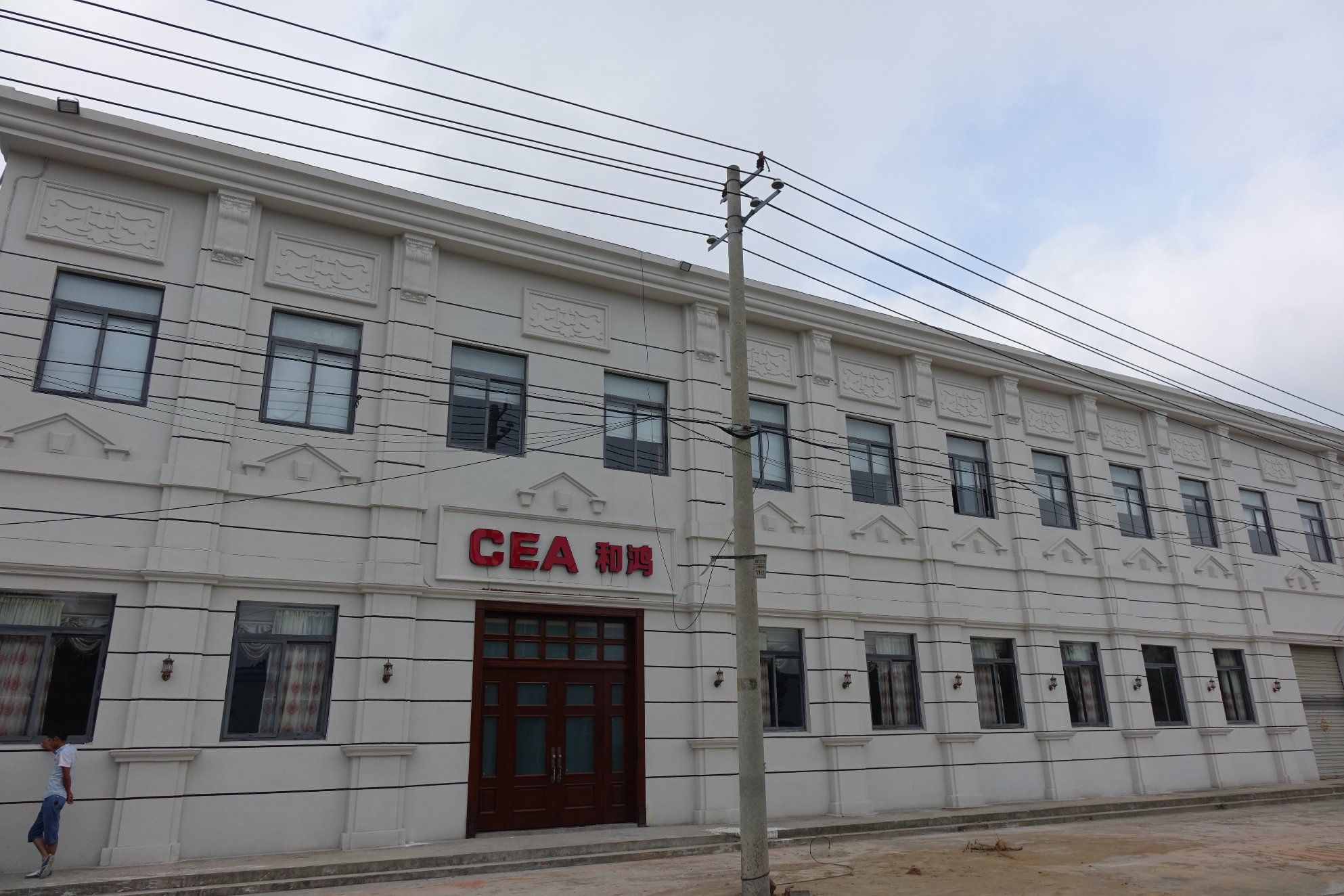

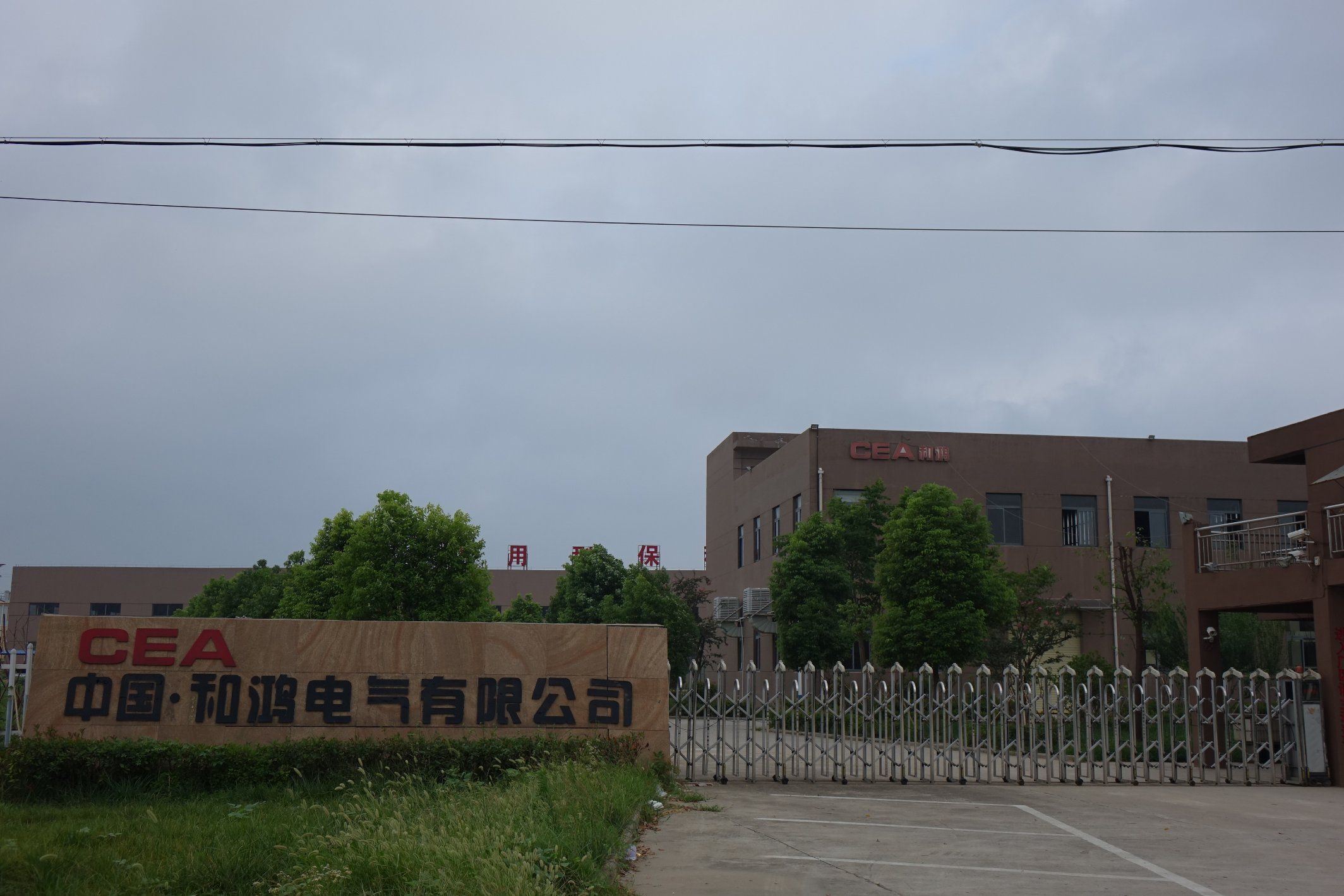

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

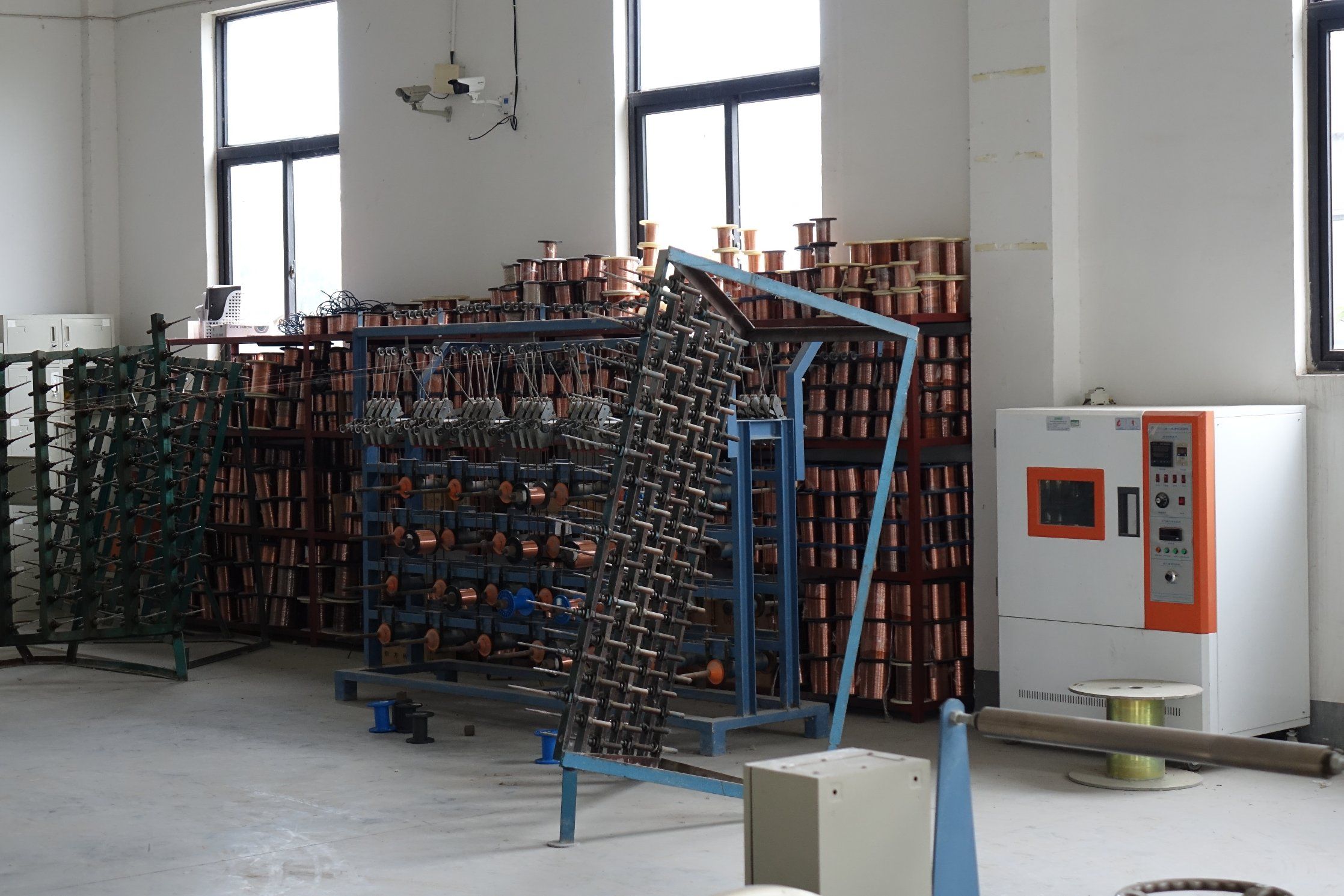

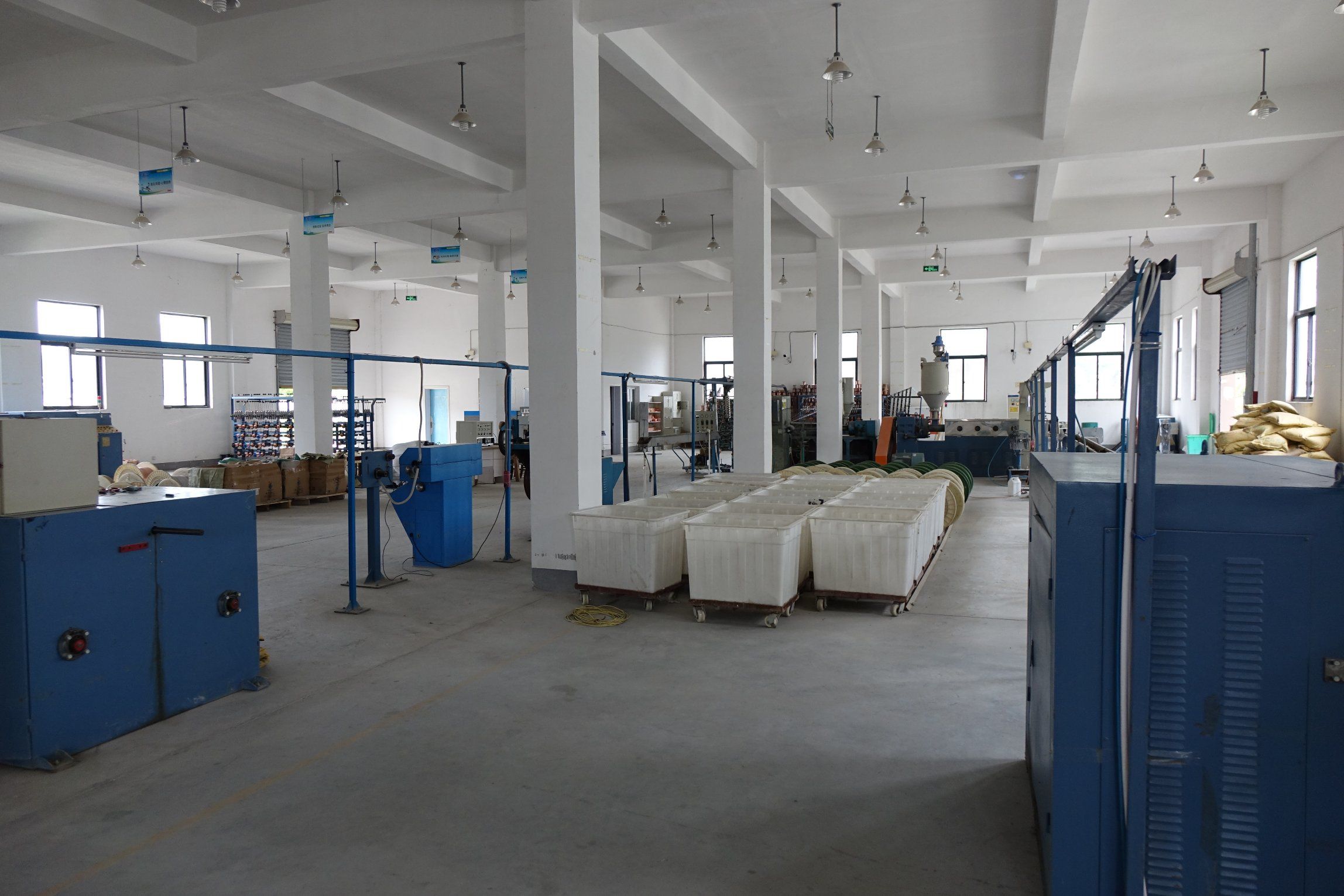

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
