Cey30 Residual Current Device (CEY30 2P)

Name: Cey30 Residual Current Device (CEY30 2P)
Brand: all-electronics-online.com
SKU: 615750644
Availability: InStock
Rating: 4.4 (28 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	3000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEY30 2P,
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	Conventional Circuit Breaker

Product Description

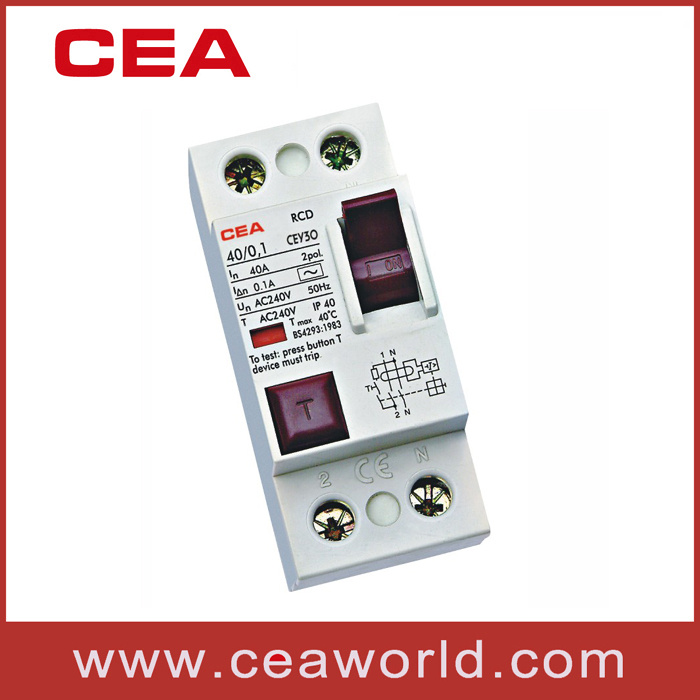

CEY30 circuit breaker

Application:
CEY30 Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits. And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.

Standard: IEC61008

Technical Data:

Type	CEY30 (NFIN)
Number of poles	2P, 4P
Rated Current(In)	25, 32, 40 63, 80, 100A
Rated residual operating current( IΔ n)	10, 30, 100, 300, 500mA
Rated residual non-operation Current( IΔ no)	0.5IΔ n
Rated Voltage(Un)	AC 2P: 230/240V 4P: 400/415V
Residual current off-time	≤ 0.1s
Type	AC
Ultimate short-circuit breaking capacity (Inc)	3000A
Endurance	≥ 4000
Terminal protection	IP20

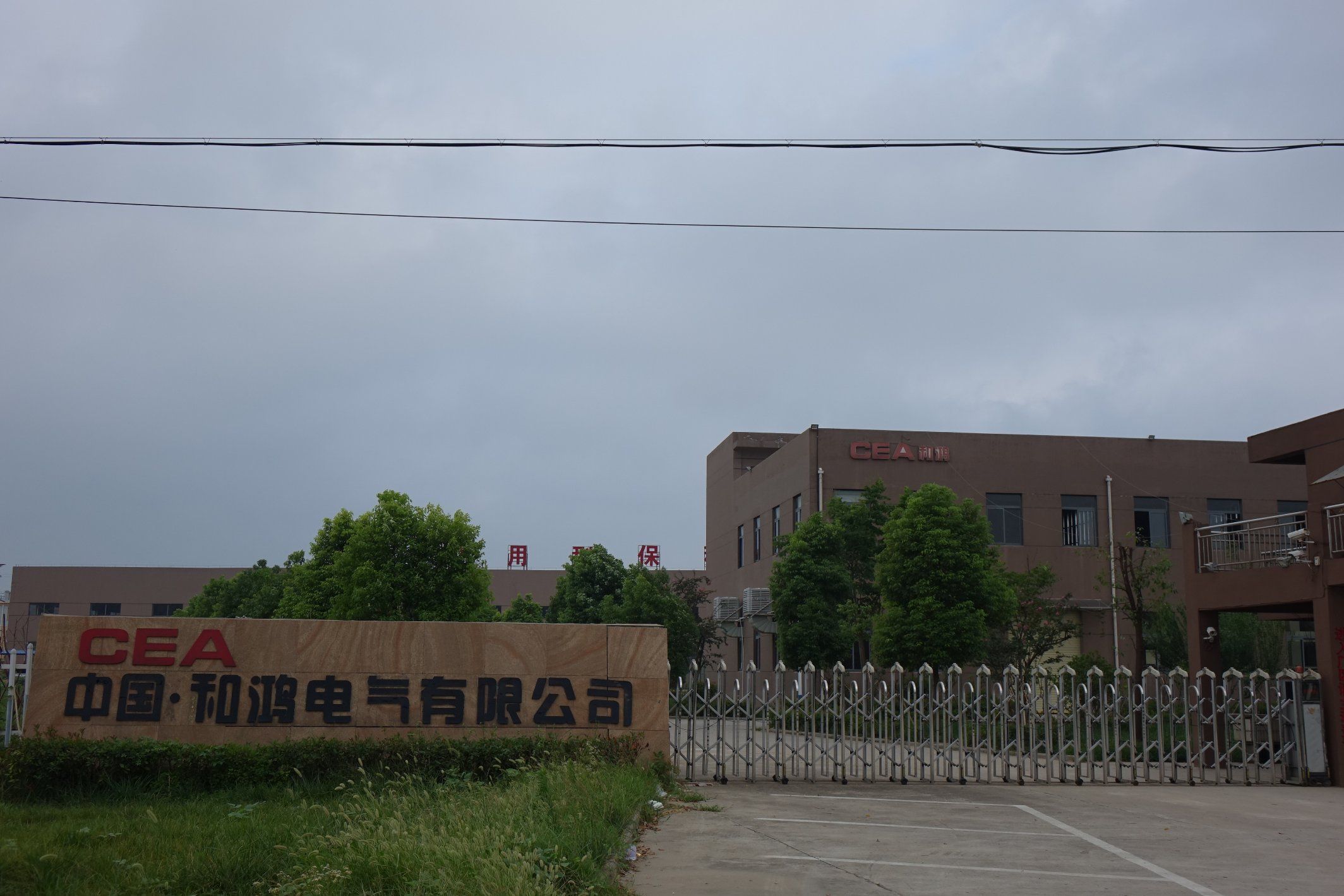

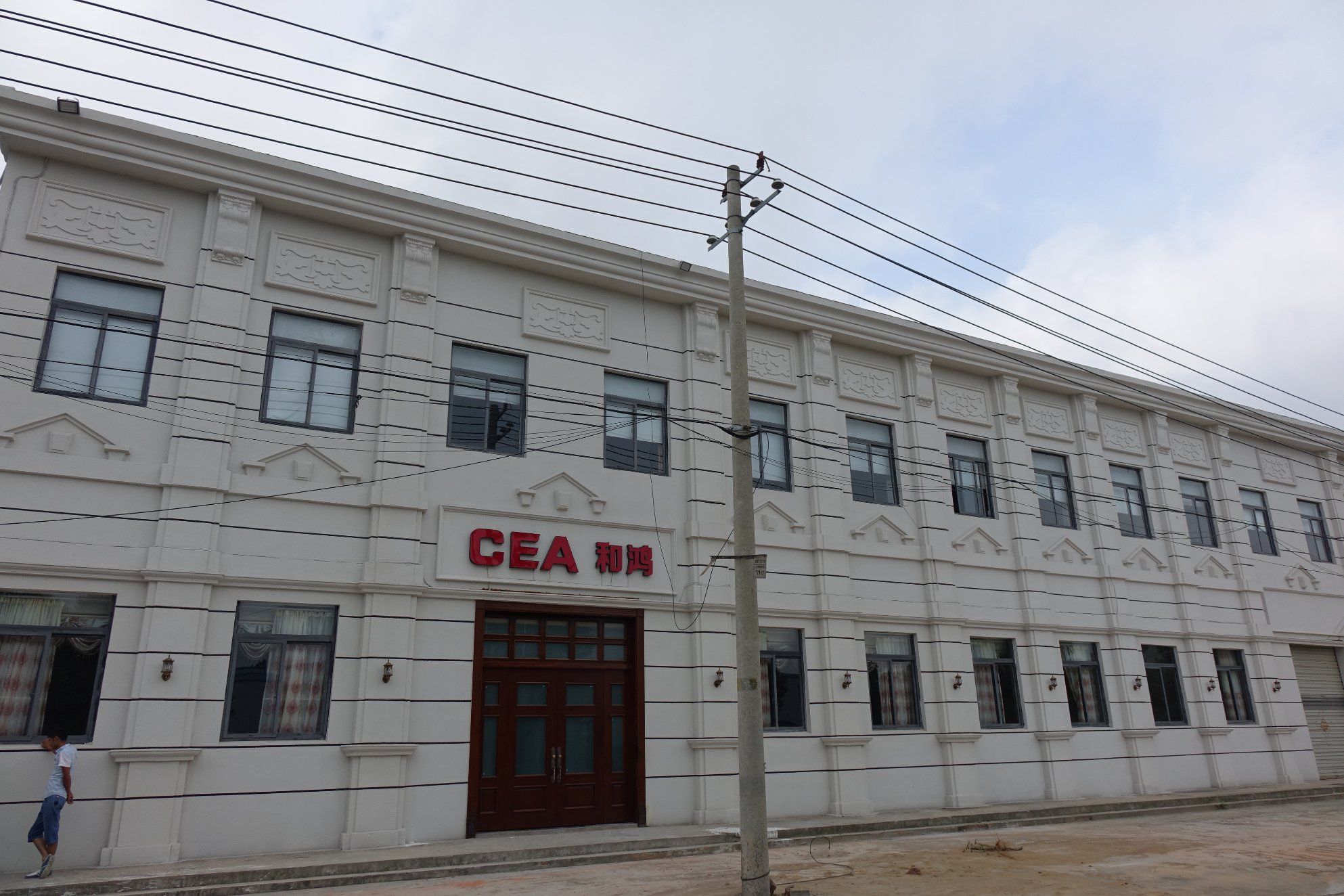

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

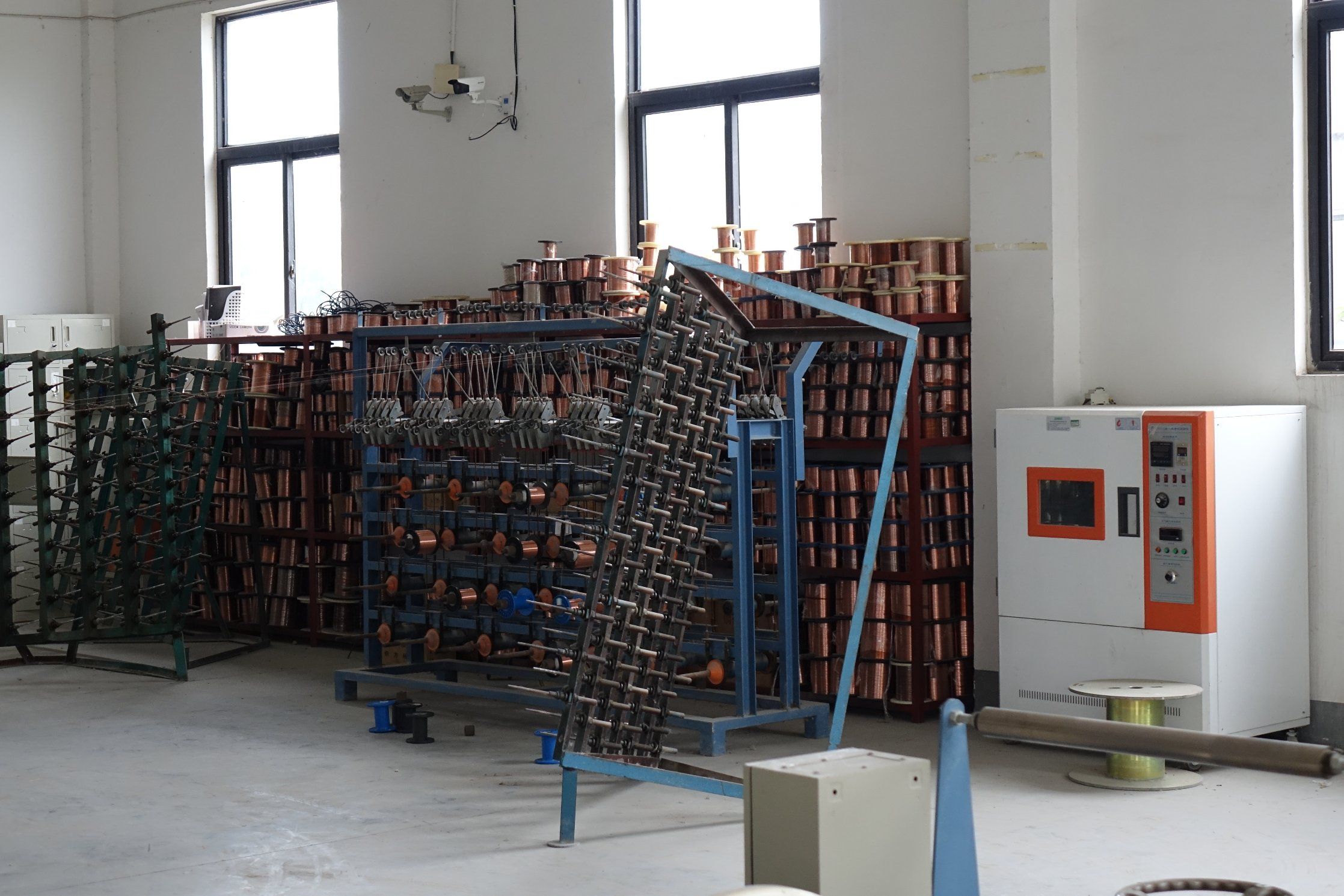

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
