Cfbhx-Sb Cantilever Beam Load Cell Sensor 3t

Name: Cfbhx-Sb Cantilever Beam Load Cell Sensor 3t
Brand: all-electronics-online.com
SKU: 804300435
Availability: InStock
Rating: 4.5 (104 reviews)

Price:	US $ 30-120/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBHX-SB
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Cfbhx-Sb Cantilever Beam Load Cell Sensor 3t
Insulation Resistance:	≥5000mΩ(50VDC)
Measure Range:	3t/5t/10t/15-20t
Driving Voltage:	25-300kg/500kg
Zero Output:	±1%Fs
Safety Overload:	150%F·s
Sensitivity:	2.0/3.0±0.05

Product Description

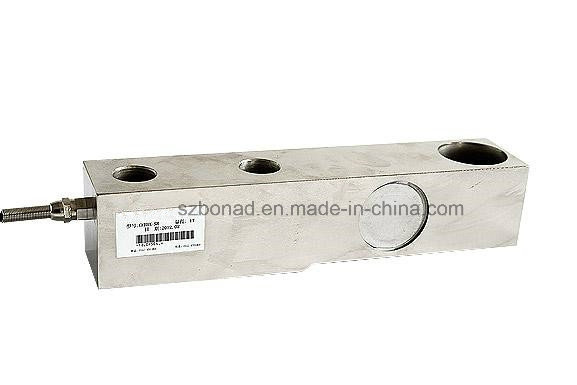

CFBHX-SB cantilever beam load cell sensor 3t

The elastomer of this sensor adopts shear cantilever structure, one side is fixed another bears stress, high structural strength, can be used in a variety of loading and measuring . It has the follow features: high accuracy, stability and reliable performance, easy installation .
Applies to electronic scales, scales and other measuring, weighing measurement and control systems for industrial automation

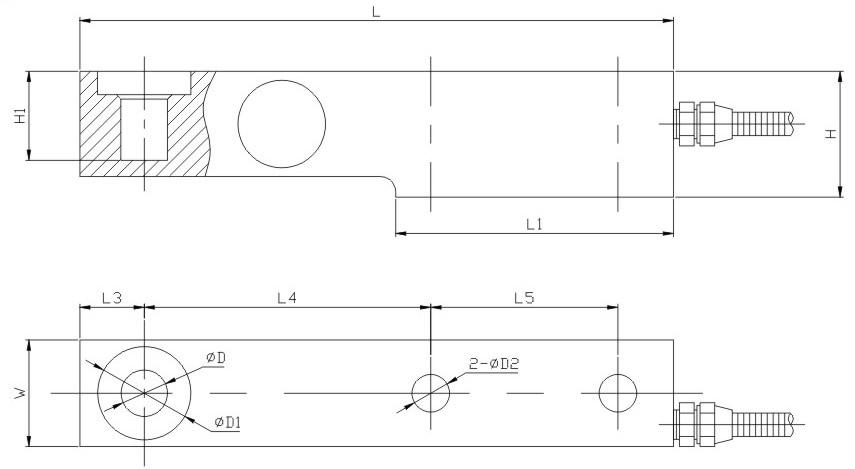

Measuring Range	L1	L2	L3	L4	L5	W	H1	H1	D	D1	D2
0.3-2t	203	95	22	98	64	36.5	43	30.4	16	32	13
3t	203	95	22	98	64	36.5	43	30.4	16	32	15
5t	235	110	22	124	66	47.5	52	30	22	38	20
10t	279	133	32	140	82.5	60	67	20	32	48	28
15-20t	318	153	38	159	89	70	82.5	24	38	54	34

Technical Parameters

Parameters	Unit	Parameters	Parameters	Unit	Technical Index
Sensitivity	mV/V	2.0/3.0±0.05	temperature sensitivity coefficient	≤%F·S/10ºC	±0.02
Nonlinear	≤%F·S	±0.03	Operating Temperature Range	ºC	-40ºC~+80ºC
Lag	≤%F·S	±0.03	Input Resistance	Ω	352±10Ω
Repeatability	≤%F·S	±0.03	Output Resistance	Ω	400±10Ω
Motility changes	≤%F·S/30min	±0.03	Safety overload	≤%F·S	150% F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10ºC	±0.02	Recommended excitation voltage	V	10V-15V

FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
How to contact us ?

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
