Shenzhen Bonad Instrument Co., Ltd. >> Cfbpb400 Digital Pressure Sensor for Petroleum

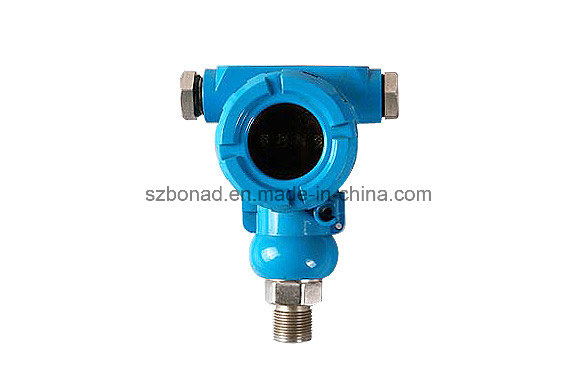

Cfbpb400 Digital Pressure Sensor for Petroleum

Cfbpb400 Digital Pressure Sensor for Petroleum
Price: US $ 45-299/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: BND-CFBPB400
Delivery Time: 3-7days
Warranty: 1year
Product Name: Digital Pressure Sensor
Isolation Diaphragm: 316stainless Steel
Overload: 2-5 Times of Range
Rated Pressure: 0.5kpa-60MPa
Recommended Excitation Voltage: 15-36VDC
Accuracy: 0.1/0.25/0.5

Product Description

CFBPB400 digital pressure sensor for  petroleum


Technical parameters
Measure medium medium compatible with 316 such as gas,liquid,oil etc
standard
Operating tempt:(-40~80)ºC
Compensation tempt:(-20~70)ºC

Measure form and range
Gauge (G)--max(0-60)MPa,min(0-0.5)KPa
Absolute pressure(A)--max(0-4)MPa,min(0-0.5)KPa
Negative pressure(B)--max(-0.1-40)MPa,min(-0.2-0.2)KPaWorking tempt-40~80ºC compensation tempt:(-20~70)ºC
Accuracy grade0.1,0.25,0.5Process connectionM20×1.5exteralnal thread(Φ3inner bore)or customize
overload2-5 times of range Isolation diaphragm316stainless steel
Long-term stabilityLess than 0.25%FS/year,less than 0.5%FS/yearInterface material1Cr18Ni9Ti
Supply power15-36VDC(standard voltage 24VDC)Canning materialsalloy
Output signal(4-20)mA,(0-10/20)mA
(0-5)V,(1-5)V,(0-10)V
Waterproof levelIp65

Display usagePointer or digital (adjustable)





FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc



HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
