Cfbpm Flat Membrane Liquid Pressure Sensor

Name: Cfbpm Flat Membrane Liquid Pressure Sensor
Brand: all-electronics-online.com
SKU: 804271665
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	US $ 45-299/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBPM
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Spoke Transducer
Input Resistance:	3kΩ~6kΩ
Output Resistance:	350±5Ω
Rated Pressure:	1.6~120MPa
Recommended Excitation Voltage:	6V-10V
Accuracy:	0.2%

Product Description

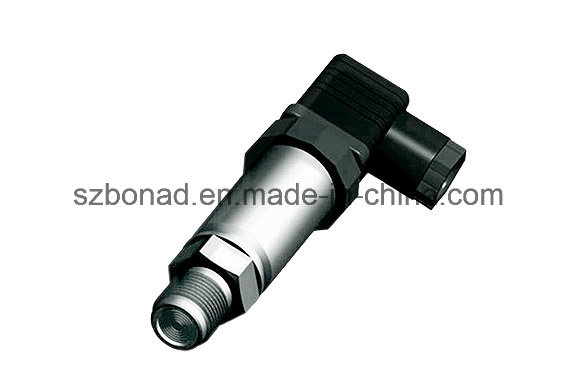

CFBPM Flat membrane liquid pressure sensor

Technical parameters

parameters	unit	Technical parameter	parameter	unit	Technical parameter
accuracy	%	0.2	input resistance	Ω	3kΩ~6kΩ
Rated pressure	MPa	1.6~120MPa	Output resistance	Ω	350±5
Max pressure	%	150	Supply voltage	V	6~10
Rated output	mV/V	0~2	Compensation temperature range	ºC	-10~+150
Tolerance of zero	%	±2	Used tempt range	Ω	-10~+150
Zero tempt error	%/10K	0.5	Storage tempt range	ºC	-20~+150
Rated output tempt error	%/10K	0.5

FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
