Cfbpt/B Universal Pressure Sensor

Name: Cfbpt/B Universal Pressure Sensor
Brand: all-electronics-online.com
SKU: 804279685
Availability: InStock
Rating: 4.8 (31 reviews)

Price:	US $ 45-299/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBPT
Delivery Time:	3-7days
Warranty:	1year
Product Name:	5.Cfbp High - Precision Pressure Sensor
Insulation Resistance:	≥5000m&Omega 50VDC
Measure Range:	1MPa-80MPa
Driving Voltage:	10V~15V
Zero Output:	±1%Fs
Safety Overload:	150%F·s
Sensitivity:	1.0±0.05mv/V

Product Description

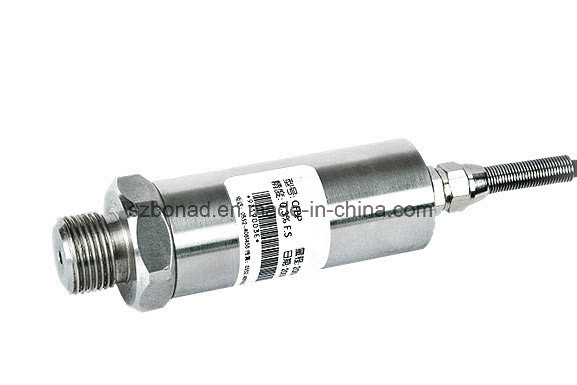

CFBPT/B Universal pressure sensor

This sensor With round diaphragm structure, good sealing, reliable and durable, the standard interface can be exchanged with similar products at home and abroad. Widely used in oil fields, machine tools, chemicals, electric power, metallurgy, natural gas and other occasions, pressure measurement

Technical parameters:(1Mpa-80Mpa)

Parameter	unit	Technical parameter	parameter	Unit	Technical parameter
sensitivity	mV/V	1.0±0.05	Sensitivity tempt coefficient	≤%F·S/10ºC	±0.3
No-linear	≤%F·S	±0.25	Working tempt range	ºC	-20ºC~+80ºC
hysteresis	≤%F·S	±0.25	Input resistance	Ω	1K±20Ω
Repeat ability	≤%F·S	±0.2	Output resistance	Ω	1K±5Ω
creep	≤%F·S/30min	±0.1	Safety overload	≤%F·S	150%F·S
Zero output	≤%F·S	±1	Insulation resistance	MΩ	≥2000MΩ(50VDC)
Zero tempt coefficient	≤%F·S/10ºC	±0.3	Driving voltage	V	10V~15V

FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
