CFR8-50 Residual Current Circuit Breaker with Overcurrent Protection RCBO
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
CFR8-50 |
| Pole No: |
1p+N |
| Rated Voltage: |
240V AC |
| Residual Current Characteristics: |
AC |
| Tripping Curve: |
B,C,D |
| Rated Frequency: |
50/60Hz |
| Rated Current(a): |
6,10,16,20,25,32,40,50 |
| Standard: |
IEC61009 |
| Rated Short-Circuit Capacity: |
10ka |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Certification: |
RoHS |
| Poles Number: |
1p+N |
Product Description

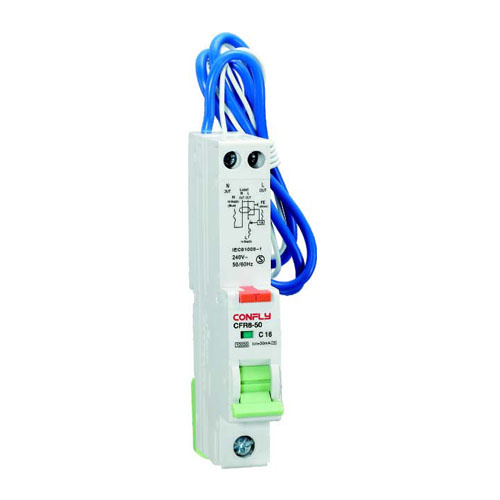

CFR8-50 Residual Current Circuit Breaker with Overcurrent Protection RCBO
Elegant appearance; cover and handle in arc shape make comfortable operation.
Contact position indicating window
Transparent cover designed to carry label.
RCBO handle can be locked either at "ON" position or at "OFF" position to prevent
unwanted operation of the product.
Provides protection against earth fault/leakage current, short-circuit and overload
High short-circuit capacity
Provides complementary protection against direct contact by human body.
Effectively protects electric equipment against insulating failure
Contact position indication
Technical Data:
Standard: IEC61009
Residual current characteristics: AC
Pole No.: 1P+N
Tripping curve: B,C,D
Rated short-circuit capacity:10kA
Rated current (A):
6,10,16,20,25,32,40,50
Rated voltage: 240V AC
Rated frequency: 50/60Hz
Rated residual operating current(mA):
30,100,300
Tripping duration: instantaneous≤0.1s
Construction and Feature
Technical Data
Electro-mechanical endurance:
4000 cycles
Connection terminal: pillar
terminal with clamp
Connection capacity:
Flexible conductor 10mm²
Rigid conductor 16mm²

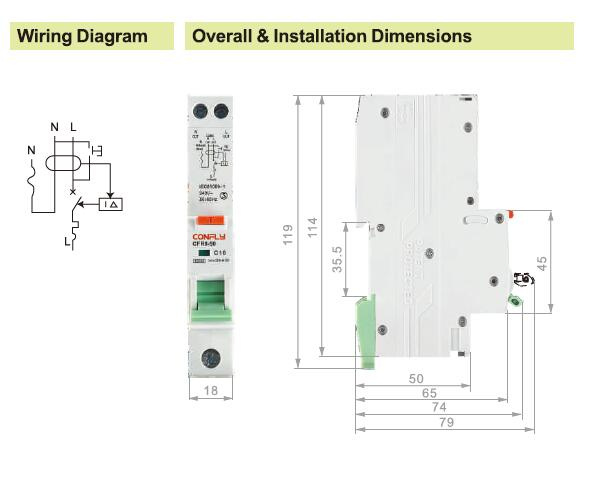

Installation:
On symmetrical DIN rail 35mm
Panel mounting
Our Promise:
1. Quality is our Culture
2. Delivery time guaranteed
3. Superior service to satisfy customer request
4. Insist win-win development
Product Range
MCB, RCCB, ELCB, RCBO, MCCB, ID, MOTER PROTECTION CIRCUIT BREAKER, ISOLATOR
AC CONTACTOR, RELAY, TIMER, SWITCH, FUSE, STARTER, METER
IND. PLUG, SOCKETS AND COUPLINGS, FUSE
DISTRIBUTION BOX(METAL & PLASTIC), BUSBAR
ELECTRICAL ACCESSORIES(CABLE TIE/CLIP/GLAND)
FAQ
Q 1: What is your minimum order quantity for whole of your products ? A1: Most of the items no have MOQ requirement, you can even buy 1pc
Q 2: How about the delivery time ?
A 2: It depends on your order quantity, normally for large order quantities, shipment within 45days.
Q 3: How about the package?
A 3:The carton is strong enough for air and sea shippment.
Colorful box will be designed according to your requirement.
Q 4: Could you offer Form A or C/O ?
A 4: It totally no problem. We can issue Form A and C/O as per customer's need once boat leave.
Q 5: Would you accept OEM ?
A 5: OEM. totally no problem for us. But it require bigger Q'ty than normal.
Q 6: We want to know month capacity.
A 6: 300000pcs/month Q 7: Where is your market?
A 7: Our products are popular in Russia, Hungary, UK,Ireland,Sweden,France, Spain, Swiss, Norway, Portugal, Chile, Uruguay, South of America, Asia, many of Africa countries and so on.
Q 8: what kind of certificate you have ?
A 8: CE, SEMKO,CB, ROHS,VDE.
Q 9: what kind of payment terms can you offer ? A 9: Normal terms of payment in international business such as T/T, Western Union, Paypal, L/C at sight. Usual way of payment for by sea goods: 30% advance ,70% balance before shipment. Q 10: If we bought your products, but found quality problem, how to solve?
A 10: After confirmed, if the quality problem is caused by us not for outer sector,We will compensate each piece to customer.
