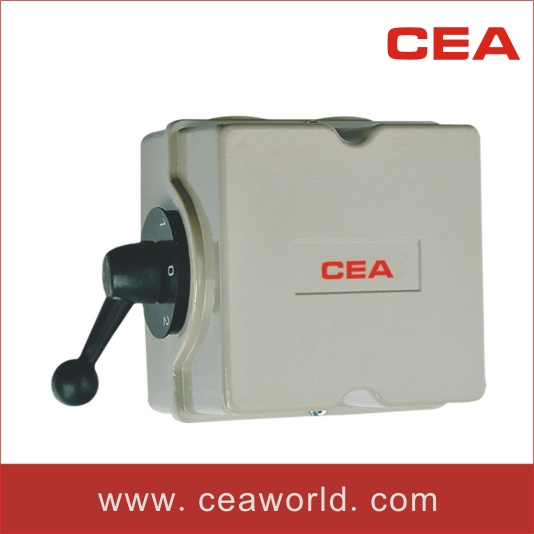

Changover Switch / Cam Starter (CFL1-25)

Name: Changover Switch / Cam Starter (CFL1-25)
Brand: all-electronics-online.com
SKU: 736436155
Availability: InStock
Rating: 4.8 (101 reviews)

Price:	US $ 5.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CFL1-25
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Volt:	230~690V
Rated Current:	100A
Usage:	Digital Products

Product Description

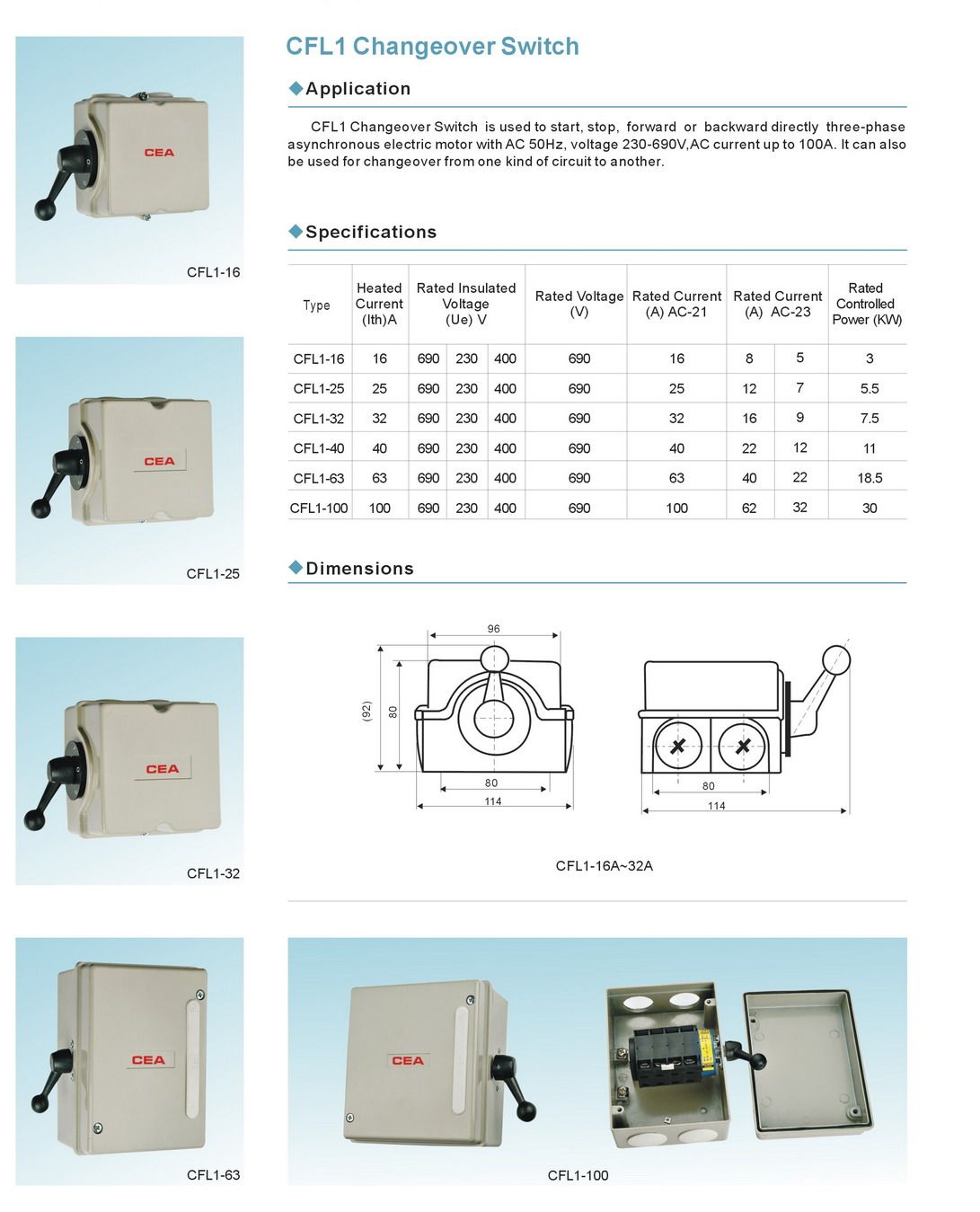

CFL1 Changeover Switch is used to start, stop, forward or backward directly three-phase asynchronous electric motor with AC 50Hz, voltage 230-690V, AC current up to 100A. It can also be used for changeover from one kind of circuit to another.

Type	Heated Current (Lth)A	Rated Insulated Voltage (Ue) V			Rated Voltage (V)	Rated Current (A) AC-21	Rated Current (A) AC-23		Rated Controlled Power (KW)
CFL1-16	16	690	230	400	690	16	8	5	3
CFL1-25	25	690	230	400	690	25	12	7	5.5
CFL1-32	32	690	230	400	690	32	16	9	7.5
CFL1-40	40	690	230	400	690	40	22	12	11
CFL1-63	63	690	230	400	690	63	40	22	18.5
CFL1-100	100	690	230	400	690	100	62	32	30

Founded in 1999, CEA Group International Co., Ltd.Is being acknowledged as one of the most respected nationwide manufacturers and exporters of low voltage electrical apparatus in P.R of China.

The Group, comprising 5 factories, owns a production area of 50, 000m2 and employs more than 1, 000 staff.During the past 13 years, we invested abundant resources in both research and development and employee training programs.The company was ranked in the front of 100 tops of wenzhou private enterprises." CEA" is named as a famous trademark in domestic and overseas markets.Our company has took the lead in applying IS09001 Quality Management System and ISO14001 Environmenttal Management System.Many products are certified under international certificate, such as CB, CE, BS, VDE, UL, SONCAP, CCC.

Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of LED lighting, Circuit Breakers, Contactors, Relays, Starters, Switches, , Wire & Cable and Electrical Accessories etc.As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching South East Asia, Middle East, South America, Africa, Europe.

We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"enable us to survive and succeed in today's intensively competitive market.Hence, we will be with overall technology support, good service to meet the requirements of world.

Enquiries from both domestic and overseas customers are cordially welcomed.Just Tell Us Your Requirements and Let Us Do The Rest For You!
