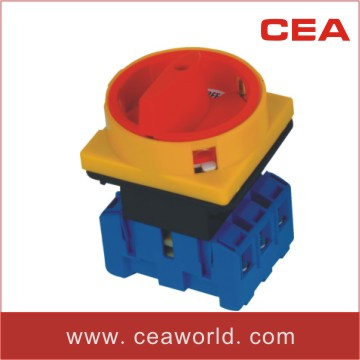

Changeover Switch / Rotary Switch / Cam Switch /Selector Switch (FD11)

Name: Changeover Switch / Rotary Switch / Cam Switch /Selector Switch (FD11)
Brand: all-electronics-online.com
SKU: 690470145
Availability: InStock
Rating: 4.8 (29 reviews)

Price:	US $ 5.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FD11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Insulation Voltage:	690V
Rated Thermal Current:	25A~100A
Rated Operating Voltage:	220V~500V
Usage:	Digital Products

Product Description

Application

FD11 load break switch is suitable for air-conditioning system and pump system, used as main switch for insulation and safely isolation.
It is manual isolating switch, meet with isolating requirement, FD11 control switch is used toON/ OFF control, urgent stop, complies with DIN VDE 0113, IEC60947-31DIN VDE 0660(EN60947-3) standards.

Model	Rated Insulation Voltage Ui(V)	Rated Thermal Current Lth (A)	AC-201A AC-21A (A)	AC-22A	Rated Operating Voltage Ue (V)	AC-3(KW)	AC-23 (KW)
FD11-25	690V	25A	25A	20A	220	3	4
					380	5.5	5.5
					500	7.5	7.5
FD11-32	690V	32A	32A	32A	200	4	5.5
					380	7.5	11
					500	7.5	11
FD11-40	690V	40A	40A	40A	220	7.5	7.5
					380	11	15
					500	15	18.5
FD11-63	690V	63A	63A	63A	220	11	11
					380	18.5	22
					500	22	30
FD11-80	690V	80A	80A	80A	220	15	18.5
					380	22	30
					500	30	37
FD11-100	690V	100A	100A	100A	220	18.5	22
					380	30	37
					500	37	45
