| Prod Model: |
SSR-80DA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Voltage: |
014:3-14VDC, 032:3-32VDC |
| Controlling Current: |
6-35mA |
| Make-on Voltage: |
3VDC |
| Break-off Voltage: |
1VDC |
| Reverse Voltage: |
32VDC |
| Load Voltage: |
38:40-400VAC |
| Load Current: |
10, 15, 20, 25, 30, 40.60, 80, 100, 120A |
| Instant Voltage: |
38:1000VAC |
| On-off Time: |
<=10ms |
| Ambient Temperature: |
-30oc ~ +80oc |
Product Description

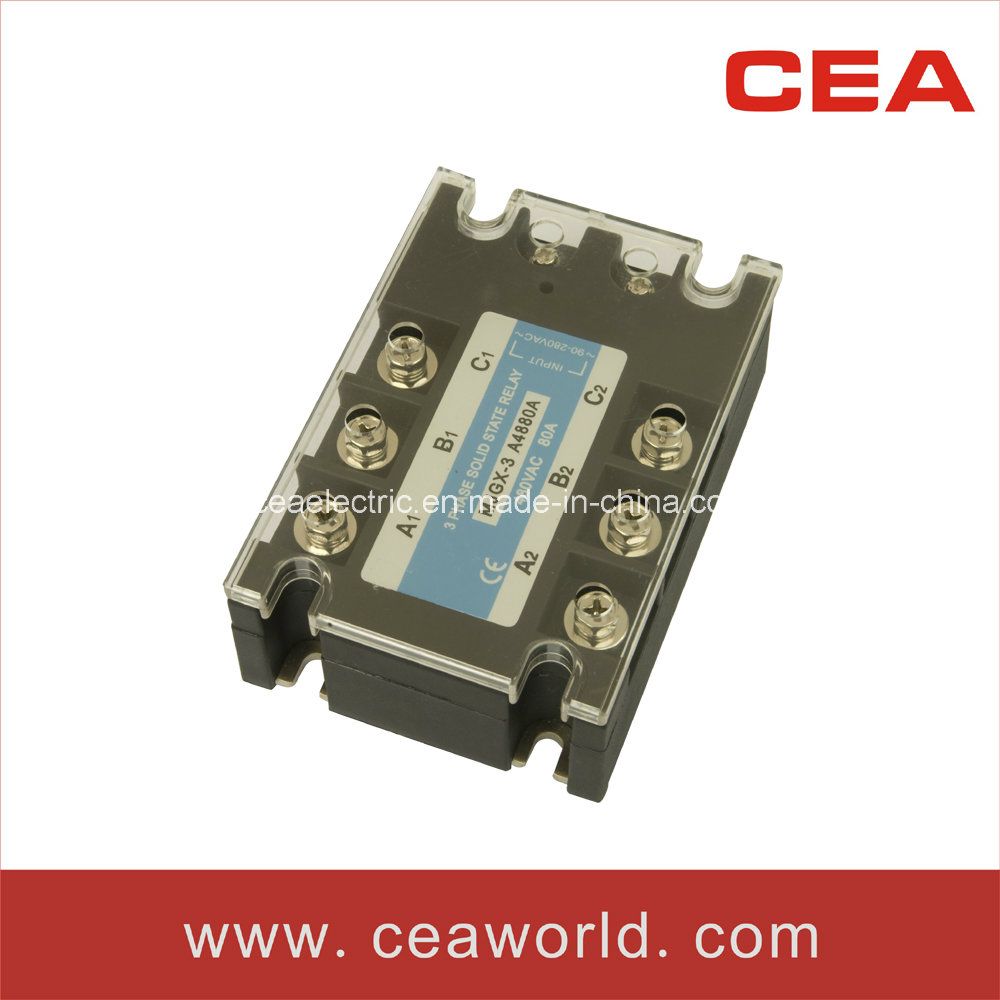

Solid State RelayA solid state relay (SSR) is an electronic switching device in which a small control signal controls a larger load current or voltage.
It comprises a voltage or current sensor which responds to an appropriate input (control signal), a solid-state electronic switching device of some kind which switches power to the load circuitry either on or off, and some coupling mechanism to enable the control signal to activate this switch without mechanical parts.
The relay may be designed to switch either AC or DC to the load. It is functionally equivalent to an electromechanical relay, but has no moving parts.
Features
Current: 0.5A-400A
Voltage: 12V-680V
Small General outline Vacuum Weld Techinics
Make R/C(MOV)inside could absorb out ITSM
LED mean turn on or OFF
Clarity protect Panel
IEC standard
Input & output type could chose DC/AC, AC/AC, DC/DC, AC/DC
Typical Applications
AC DC switch & Temp. Control
Automate Control
Numerical Control Machinery
Type | Input Voltage | Output Voltage |
Output Current |
SSR-10DA | 3-32VDC | 24-380VAC |
10A |
SSR-20DA | 3-32VDC | 24-380VAC |
20A |
SSR-25DA | 3-32VDC | 24-380VAC |
25A |
| SSR-40DA | 3-32VDC | 24-380VAC |
40A |
| SSR-10AA | 80-250VDC | 24-380VAC |
10A |
| SSR-20AA | 80-250VDC | 24-380VAC |
20A |
| SSR-25AA | 80-250VDC | 24-380VAC |
25A |
| SSR-40AA | 80-250VDC | 24-380VAC |
40A |
Type |
Input Voltage | Output Voltage | Output Current |
| ZG3NC-210B |
3-32VDC | 30-240VAC | 10A |
| ZG3NC-310B |
3-32VDC | 90-480VAC | 10A |
| ZG3NC-215B |
3-32VDC | 30-240VAC | 15A |
| ZG3NC-315B |
3-32VDC | 90-480VAC | 15A |
| ZG3NC-220B |
3-32VDC | 30-240VAC | 20A |
| ZG3NC-320B |
3-32VDC | 90-480VAC | 20A |
| ZG3NC-225B |
3-32VDC | 30-240VAC | 25A |
| ZG3NC-325B |
3-32VDC | 90-480VAC | 25A |
| ZG3NC-240B |
3-32VDC | 30-240VAC | 40A |
| ZG3NC-340B |
3-32VDC | 90-480VAC | 40A |
| ZG3NC-250B |
3-32VDC | 30-240VAC | 50A |
| ZG3NC-350B |
3-32VDC | 90-480VAC | 50A |
| ZG3NC-260B |
3-32VDC | 30-240VAC | 60A |
| ZG3NC-360B |
3-32VDC | 90-480VAC | 60A |
| ZG3NC-270B |
3-32VDC | 30-240VAC | 70A |
| ZG3NC-370B |
3-32VDC | 90-480VAC | 70A |
| ZG3NC-280B |
3-32VDC | 30-240VAC | 80A |
| ZG3NC-380B |
3-32VDC | 90-480VAC | 80A |
| ZG3NC-210A |
80-250VAC | 30-240VAC | 10A |
| ZG3NC-310A |
80-250VAC | 90-480VAC | 10A |
| ZG3NC-215A |
80-250VAC | 30-240VAC | 15A |
| ZG3NC-315A |
80-250VAC | 90-480VAC | 15A |
| ZG3NC-220A |
80-250VAC | 30-240VAC | 20A |
| ZG3NC-320A |
80-250VAC | 90-480VAC | 20A |
| ZG3NC-225A |
80-250VAC | 30-240VAC | 25A |
| ZG3NC-325A |
80-250VAC | 90-480VAC | 25A |
| ZG3NC-240A |
80-250VAC | 30-240VAC | 40A |
| ZG3NC-340A |
80-250VAC | 90-480VAC | 40A |
| ZG3NC-250A |
80-250VAC | 30-240VAC | 50A |
| ZG3NC-350A |
80-250VAC | 90-480VAC | 50A |
| ZG3NC-260A |
80-250VAC | 30-240VAC | 60A |
| ZG3NC-360A |
80-250VAC | 90-480VAC | 60A |
| ZG3NC-270A |
80-250VAC | 30-240VAC | 70A |
| ZG3NC-370A |
80-250VAC | 90-480VAC | 70A |
| ZG3NC-280A |
80-250VAC | 30-240VAC | 80A |
| ZG3NC-380A |
80-250VAC | 90-480VAC | 80A |
Type | Input Voltage |
Output Voltage | Output Current |
| ZG33-310B | 3-32VDC |
30-240VAC | 10A |
| ZG33-320B | 3-32VDC |
90-480VAC | 20A |
| ZG33-325B | 3-32VDC |
30-240VAC | 25A |
| ZG33-340B | 3-32VDC |
90-480VAC | 40A |
| Z333-310A | 80-250VAC |
90-480VAC | 10A |
| Z333-320A | 80-250VAC |
90-480VAC | 20A |
| Z333-325A | 80-250VAC |
90-480VAC | 25A |
| ZG33-340A | 80-250VAC |
90-480VAC | 40A |
Company Profile:

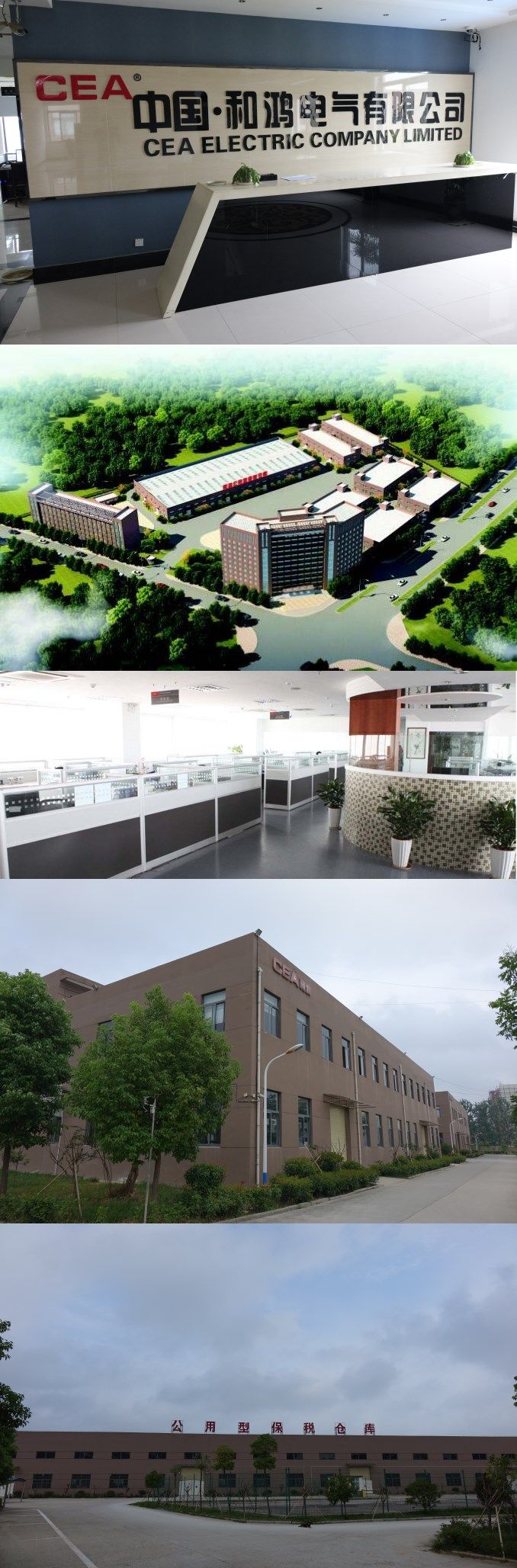

Founded in 1999, CEA Elecreic Co., Ltd is acknowledged as one of the most respected electrical apparatus and LED lighting manufacturer in China. The company located in Fuyang city Anhui Province, owns production area of 50,000m2 and employs more than 5oo staffs.The company is approved by ISO9001 Quality Management System and ISO14001 Environment Management System, GB/T 28001 Occupational Health and Safety Management System. Products certificated with UL, SAA, C-TICK, CB, CE, ROHS, CCC. CEA brand is registered in more than 40 countries and regions. Branch offices are established in USA, HK, and general agency in Brazil and Russia. With qualified R&D team and professional engineers, the company has established advanced test center. Company product line mainly includes LED lightings, cables & wires, industrial control apparatus, instruments, complete equipment and electronic parts & components. The company's LED lightings product included LED Flood Light, LED Tunnel Light, LED Street Light, LED High Bay Light, LED Tube, LED Bulb, LED Down Light. Products widely used in roadway, factory, department store, hospital, school, golf course, villa, farm and etc. With energy saving, environmental friendly, high efficiency performance, CEA LED lightings have gained reputation in over 80 countries and regions in Southeast Asia, North & South America, Europe, Africa, CIS.With enterprise tenet "Be NO.1 Electrical equipment supplier, Realize Green energy resource", and enterprise spirit "credit, unity, innovation and striving", we are willing to work with you and build a bright future.
