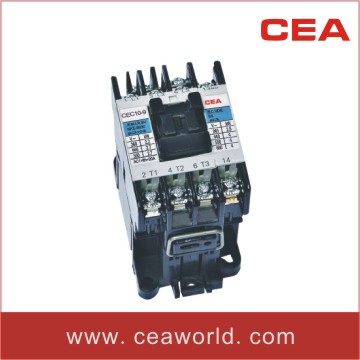

SC AC Contactor

Name: SC AC Contactor
Brand: all-electronics-online.com
SKU: 690367555
Availability: InStock
Rating: 4.6 (68 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEC10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

CEC10 series AC contactor are suitable for AC 50Hz or 60Hz, rated voltage up to 660V, mainly used for putting through long distance, breaking circuit and frequently starting control AC motor. It can also be used for counter-cage motor in the case of reducing working current. It conforms with IEC60158 &IEC60337

Type		CEC10 -03	CEC10 -04	CEC10 -05	CEC10 -4-0	CEC10 -4-1	CEC10 -5-1	CEC10 -1N	CEC10 -2N	CEC10 -2SN	SEC10 -3N	CEC10 -4N	CEC1 -5N	CEC10 -6N
Max. Value of Motor	200-240V	2.5	3.5	3.5	4.5	5.5	5.5	7.5	11	15	18.5	22	30	37
	380-440V	4	5.5	5.5	7.5	11	11	15	18	22	30	40	55	60
	500-550V	4	5.5	5.5	7.5	11	11	15	18	25	37	37	55	60
	600-660V	4	5.5	5.5	7.5	75	7.5	11	15	22	30	37	55	60
Operating Current AC3(A)	200-240V	11	13	13	18	22	22	27	39	52	65	80	105	126
	380-440V	9	12	12	16	22	22	30	37	48	65	80	105	120
	500-550V	7	9	9	13	17	17	24	29	38	60	60	85	90
	600-660V	5	7	7	9	9	9	15	19	26	38	44	64	72
Rated Heating Current(A)		20	20	20	25	32	32	50	60	80	100	135	150	150
Aux-Contact Layout	Standard	INO	INO	INO	INO	INO INC	INO INC	2NO 2NC	2NO 2NC	2NO 2NC	2NO 2NC	2NO 2NC	2NO 2NC	2N0 2NC
Aux-Contact Layout	Other	INC	INC	2NC or 2NC	INC	2NC	2NC or 2NC	4NO 4NC	4NO 4NC	4NO 4NC	4NO 4NC	4NO 4NC	4NO 4NC	4NO 4NC
Life of kobadilrty (1× 10 4 )	Electra. I Machanical	200	200	200	150	200	200	200	200	200	200	100	100	100
Life of kobadilrty (1× 10 4 )	Electra. I Machanical	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
