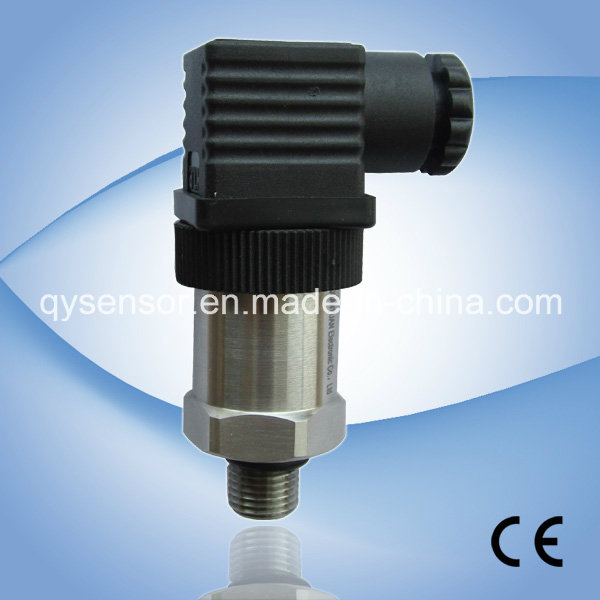

Cheap Ceramic Pipeline Pressure Sensor/ Water Pressure Transmitter

Name: Cheap Ceramic Pipeline Pressure Sensor/ Water Pressure Transmitter
Brand: all-electronics-online.com
SKU: 780439555
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	US $ 26-30/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QP-83C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Character:	Strong Corrosion Resistance
Working Temperature:	-20~100 Centigrade
Power Supply:	24VDC
Electrical Connection:	DIN43650
Pressure Connector:	Customize
Product Name:	Cheap Ceramic Pressure Sensor/ Water Pressure

Product Description

Model: QP-83C Cheap ceramic pressure sensor/ water pressure transmitter
Range: 0~0.5MPa, 0~0.6MPa, 0~1MPa, 0~1.6MPa, 0~2MPa, 0~2.5MPa, 0~3MPa, 0~4MPa, 0~5MPa, 0~10MPa, 0~16MPa, 0~20MPa

Feature:
It has a strong corrosion resistance
Good stability
Integral structure, easy installation
Be suitable for a wide range of using
The range of medium temperature: -20ºC~100ºC
The range of high temperature: -30ºC~150ºC(Customized)
Adopting high precision components, it's will to work in the harsh environment.

Dimensions:

Technical Specifications

Measuring media	Gases or liquids which are compatible to 316L stainless steel
Measuring range	0~0.5MPa, 0~0.6MPa, 0~1MPa, 0~1.6MPa, 0~2MPa, 0~2.5MPa, 0~3MPa, 0~4MPa, 0~5MPa, 0~10MPa, 0~16MPa, 0~20MPa
Pressure type	Gage pressure
Signal output	transmitter, mA (2 wires)	4~20mA
Signal output	transmitter, Vdc (3 wires)	0~5V, 0~10V,1~5V, 0~20mA
Combined accuracy	%FS	±0.5(Standard), ±1(Max)
Long stability	≤±0.2%FS/year
Power supply	Vdc	12~36(Standard 24Vdc)
Compensated temp.	ºC	-10~+60
Operating temp.	ºC	-20~100
Temperature coefficient of ZERO	%FS/10ºC	≤±0.3
Temperature coefficient of SPAN	%FS/10ºC	≤±0.3
Insulation resistance	MΩ	>500 @ 100Vdc
Electrical connection	DIN43650
Material	Stainless steel
Pressure connection	G 1/4,ZG1/4, M20×1.5, M14×1.5(Customized)
Environment protection	IP	65
Safe overload	%FS	150
Ultimate overload	%FS	200

Contact for more details:

Chloe Shu
Sales Engineer

TEL: +86-916-2257989
MOB: +86 15336190378

http://www.qysensor.com
https://cn.linkedin.com/pub/chloe-shu/74/445/964

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
