Cheap Good Quality AC Motor Run Capacitor

Name: Cheap Good Quality AC Motor Run Capacitor
Brand: all-electronics-online.com
SKU: 719855012
Availability: InStock
Rating: 5 (143 reviews)

Price:	US $ 0.20/Piece
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB60
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	1-50uf

Product Description

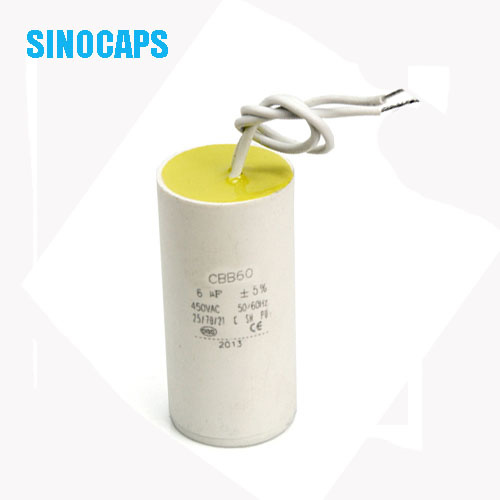

SINOCAPS #CBB60 AC motor run capacitor

Detailed product description:

1. Used widely in motors, air conditioner, water pumps,air etc

2.High performance & Long life Capacitor.

3. Work well even in hot area

Main feature:

Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.

Applications:

Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.

SINOCAPS Motor run capacitor

Capacitance Range	1μF~150μF
Rated Voltage	250VAC~500VAC(50/60Hz)
Capacitance Tolerance	±5% or Fulfilled upon request
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Standard Temperature	-25ºC~+70ºC,-40ºC~+85ºC
Climate Class	25/70/21, 40/85/21
Test Voltage	Between terminals	AC≥2.00Un 2S NO BREAKDOWN
	Between terminals and case	AC≥2000V 2S NO BREAKDOWN
Insulation Resistance	Between terminals	Rj·C≥3000MΩ.μF
	Between terminals and case	Rj≥1000 MΩ.μF
Security Level	P0, P1, P2
Executing Standard	GB/T3667.1-2005, IEC60252-1:2001, IEC252

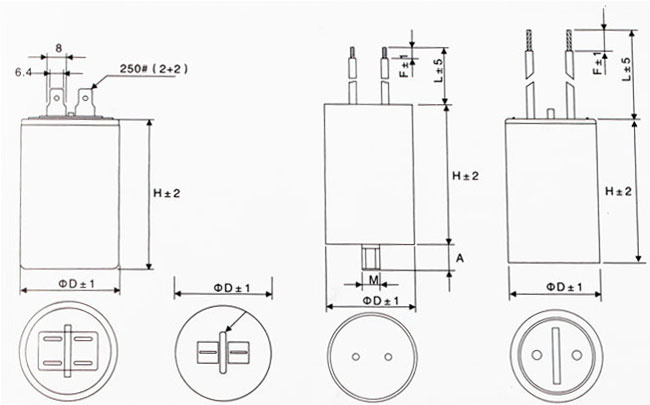

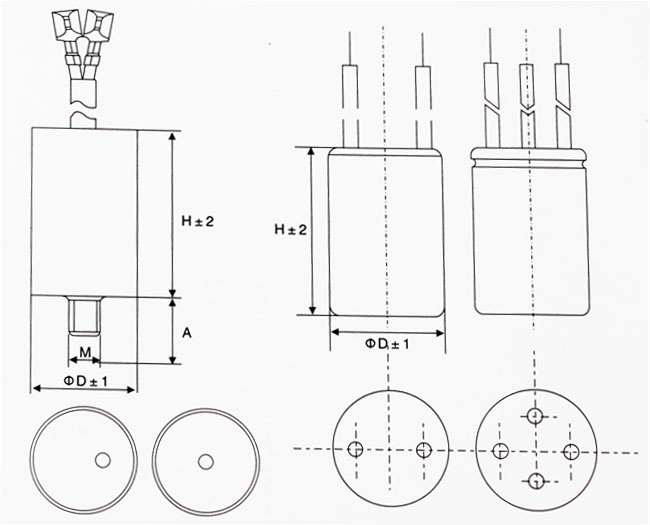

Capacitance and dimension(mm) of SINO Motor run capacitor

Standard Capacity (μF)	250V AC~300V AC		350V AC~400V AC		400V AC~450V AC
Standard Capacity (μF)	D(mm)	H(mm)	D(mm)	H(mm)	D(mm)	H(mm)
3	25	45	25	45	25	45
4	25	45	25	45	25	45
5	25	45	25	45	34	50
6	25	45	25	65	34	50
7	25	45	25	65	32	60
8	30	50	30	60	32	60
10	30	50	30	60	32	60
12	30	60	32	60	34	60
12.5	30	60	32	60	34	70
13	30	60	32	60	34	70
14	30	60	34	60	38	70
15	32	60	34	60	38	70
16	32	60	34	60	38	70
18	32	60	34	70	40	70
20	32	60	34	74	40	70
25	34	60	38	70	42	70
30	34	70	42	70	42	90
35	42	70	42	70	45	90
40	42	70	45	90	50	90
45	42	70	45	90	50	90
50	45	70	45	90	50	100
55	45	90	50	90	50	100
60	45	90	50	90	50	100
70	45	90	50	100	55	120
75	45	90	50	120	55	120
80	46	95	50	120	55	120
90	50	90	55	120	60	120
100	50	90	55	120	60	120
120	50	120	60	120
150	55	120
Note: Fulfilled upon request.
