Cheap Single Sided PCB Board Fr4 with White Soldermask
| Price: |
US $ 0.45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-178-V1.78 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Hot Air Soldering Leveling(HASL),Lead Free |
| Solder Mask Color: |
White |
| Colour Of Component Legend: |
Black |
| Minimum Trace And Space: |
Minimum Trace and Space |
| Minimum / Maximum Holes: |
0.6/7.2mm |
| Minimum Trace and Space: |
7 Mil/7 Mil |
| Via: |
Non Plated Through Hole(Npth) |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
Product Description

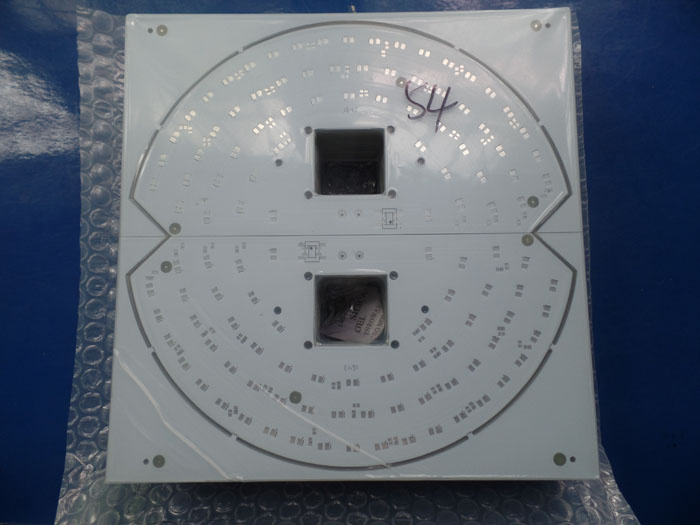

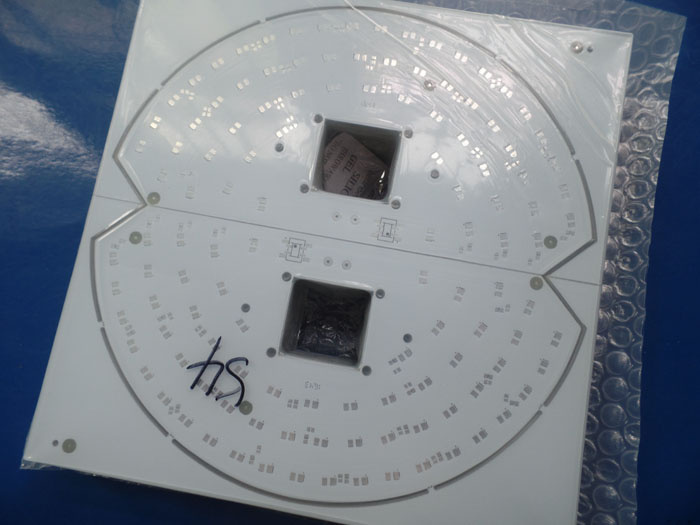

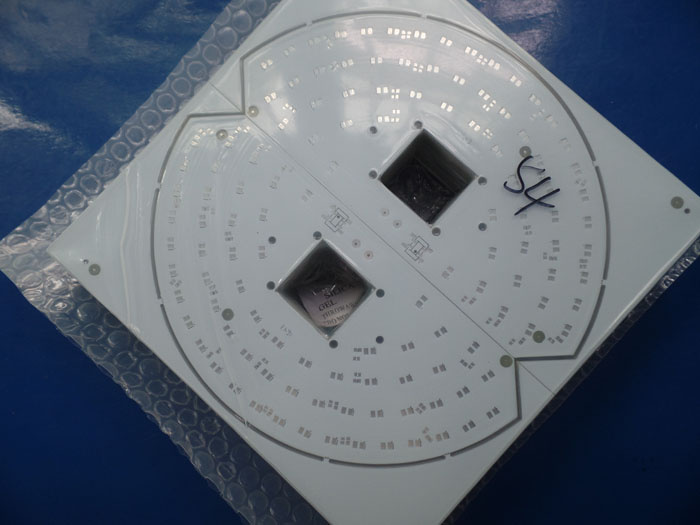

Single Sided Cheap PCB FR-4 1.5mm Thick White Solder Mask HASL Applied In LED
lighting
Commodity IntroductionThis is a type of FR-4 PCB for the application of LED lighting. It's a single sided layer board
at 1.6mm thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 195 x 192mm=2PCS |
| BOARD TYPE | |
| Number of Layers | Single sided PCB, 1 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | Copper ------- 35um(1oz) TOP layer |
| FR-4 1.5 mm |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7mil/7mil |
| Minimum / Maximum Holes: | 0.6/7.2mm |
| Number of Different Holes: | 2 |
| Number of Drill Holes: | 19 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 1.5mm, Tg>130ºC |
| Final foil external: | 1oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Hot air soldering leveling(HASL),lead free, Sn>=2.54µm |
| Solder Mask Apply To: | Bottom, 12micron Minimum |
| Solder Mask Color: | White,PSR400 WT02 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | Bottom |
| Colour of Component Legend | Black |
| Manufacturer Name or Logo: | No special requirement |
| VIA | Non Plated Through Hole(NPTH) |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | LED lighting,
Electrical Inverter
Wifi 3G Router
Router Umts
Ac To Dc Rectifier
Power Inverter Reviews |
TYPE OF ARTWORK TO
BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
