Cheaper 3pin Battery Terminal Connectors Quick Coupling Outdoor Audio Connectors

Name: Cheaper 3pin Battery Terminal Connectors Quick Coupling Outdoor Audio Connectors
Brand: all-electronics-online.com
SKU: 798282015
Availability: InStock
Rating: 4.9 (135 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF-24-J03PE-04-001, YF-24-C03SX-04-001
Certification:	UL, Ce, RoHS, CCC, ISO9001
Protection Level:	IP44/IP65
Product Type:	3pin Electrical Wire Connector
Pin:	3pin
Current Rating(a):	20A
Application:	Power, Automobile, RF, Audio & Video, PCB, Microwave, FPC, UHF

Product Description

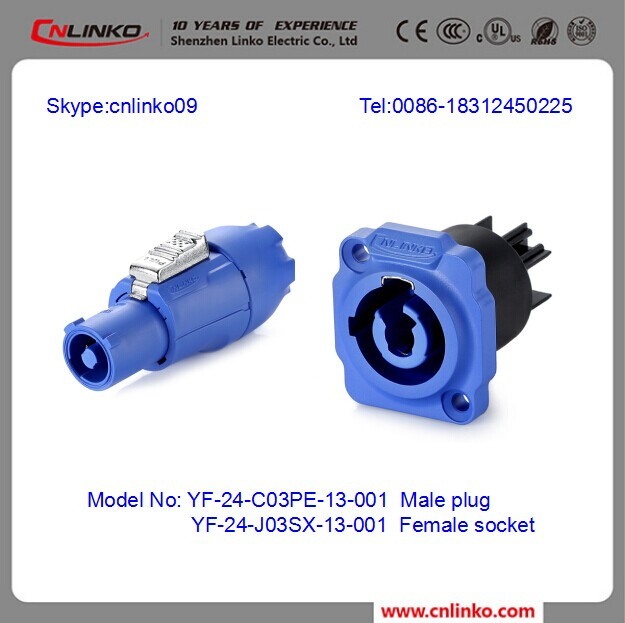

Cheaper 3pin battery terminal connectors quick coupling outdoor audio connectors

YF series electrical connectors IP44/IP67
1.locking 3-pin connector of the device ,with contacts for the middle, straight, pre- adaptation safety ground
2.high current capacity 20A/250VAC
3.use blue (input) and grey(output) to distinguish right plug and socket
4.ast and easy locking system
5.beryllium copper imported from the U.S silver-plated make quality assurance, increasing the
stability and effective temperature control
6.IP44 and IP65 for choice.
7.20A rms current rating
8.unique copper core needle avoid drop

YF-24-J03PE-03-001,YF-24-C03SX-03-001 plug &socket
Specifications:
Connecting mode:	Latching Lock connect
Protection level:	IP44/IP67
Cable specification:	2.5mm2 ~ 4mm2 /14~12AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	500V
Contact resistance:	<3mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	Solder
Prevent the combustion level:	UL94-V0
Produce type:	3pin Electrical Wire Connector

Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP67)
- Vibration resistance,impact resistance,stretching resistance
- 1/4 bayonet connect; socket with cover

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery
