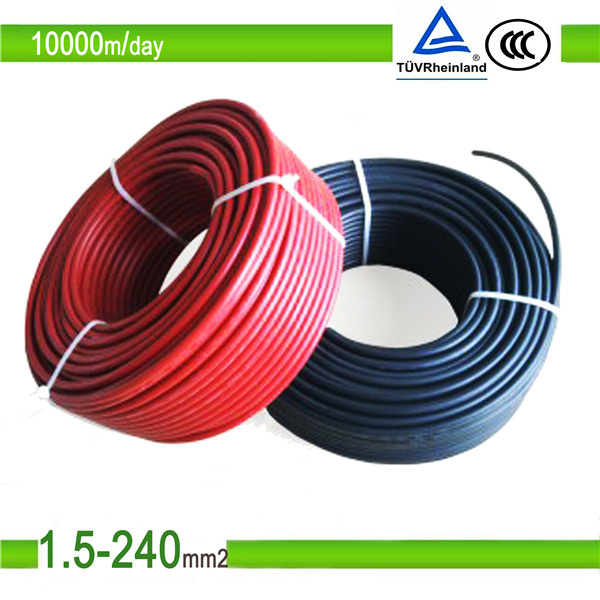

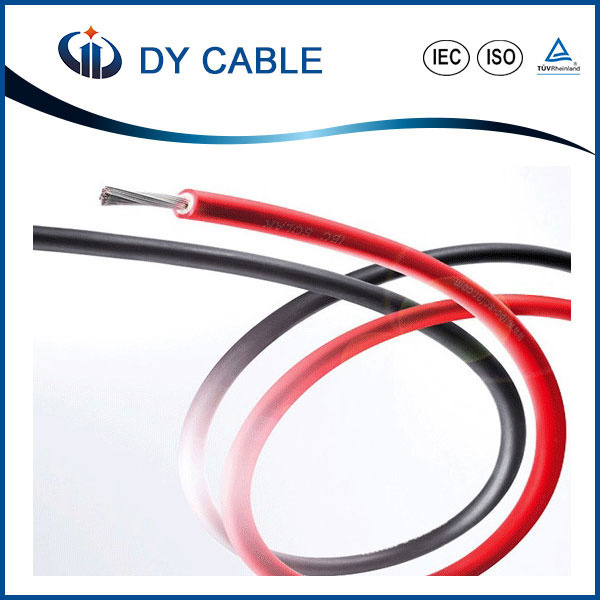

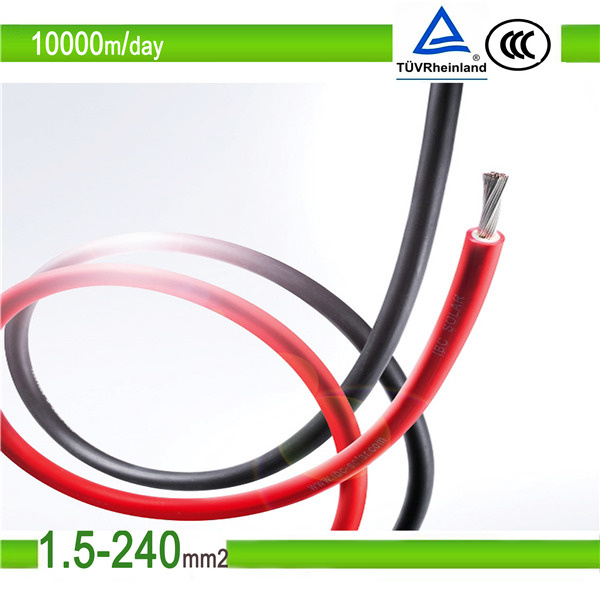

China 1*4mm2 Solar Cable Supplier
| Price: |
US $ 0.01-0.99/Piece |
| Min Order: |
100000/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
solar cable |
| Item Name: |
China 1*4mm2 Solar Cable Supplier |
| Sectional Area: |
1.5-35mm2 |
| Number Of Cores: |
One or Two |
| Lifetime: |
25years |
| Company Nature: |
Manufacturer and Trading Company |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Certification: |
TUV |
| Range Of Application: |
Industry, Solar System |
| Brand: |
Dayuan |
| Sheath Material: |
Xlpo or PVC |
| Insulation Material: |
Xlpo or XLPE |
| Conductor Material: |
Tinned Copper Wire |
| Application: |
Solar System |
Product Description
china 1*4mm2 solar cable supplier

solar cable information| Item | Performance | Parameter |
| 1 | conductor | tinned copper wire |
| 2 | insulation | XLPO |
| 3 | jacket | XLPO |
| 4 | color | black, red, blue... |
| 5 | rated voltage | AC: 0.6/1kv; DC:1.8kv |
| 6 | working temperature | -40ºC~+90ºC |
| 7 | projected lifetime | 25years |
| 8 | certification | TUV |
| 9 | features | Low smoke zero halogen, excellent properties of cold-resistant, UV-resistance, ozone-proof and weather-proof. Flame retardant, resistance to cut marks and penetration. |
Main soalr cable type specification Please note that we can make as your requirements| single core solar cables |
| Type | Sectional area(mm2) | Conductor | Insulation | Jacket | Weight(kg/km) |
| No./Dia | Outer dia | Thickness | Dia | Thickness | Dia |
| PV1-F | 1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 0.80 | 4.70 | 37.4 |
| PV1-F | 2.5 | 49/0.25 | 2.10 | 0.75 | 4.10 | 0.80 | 5.20 | 64.6 |
| PV1-F | 4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 0.80 | 5.70 | 64.6 |
| PV1-F | 6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 0.80 | 6.30 | 85.6 |
| PV1-F | 10 | 84/0.4 | 4.70 | 0.75 | 6.20 | 0.80 | 7.80 | 142.1 |
| PV1-F | 16 | 126/0.4 | 5.80 | 0.75 | 7.30 | 0.80 | 8.90 | 197.7 |
| PV1-F | 25 | 196/0.4 | 7.60 | 0.75 | 9.10 | 0.80 | 8.90 | 197.7 |
| two core solar cables |
| Type | Sectional area(mm2) | Conductor | Insulation | Jacket | Weight(kg/km) |
| No./Dia | Outer dia | Thickness | Dia | Thickness | Dia |
| PV1-F/Round | 2x1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 1.00 | 8.20 | 98.6 |
| PV1-F/Round | 2x2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 1.00 | 9.20 | 131.2 |
| PV1-F/Round | 2x4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 1.00 | 10.20 | 171.0 |
| PV1-F/Round | 2x6 | 78/03 | 3.20 | 0.75 | 4.70 | 1.00 | 11.40 | 225.8 |
| PV1-F/Flat | 2x1.5 | 30/0.25 | 1.60 | 0.75 | 3.10 | 0.80 | 4.7x9.5 | 76.2 |
| PV1-F/Flat | 2x2.5 | 49/0.25 | 2.10 | 0.75 | 3.60 | 0.80 | 5.2x10.5 | 100.4 |
| PV1-F/Flat | 2x4 | 52/0.3 | 2.60 | 0.75 | 4.10 | 0.80 | 5.7x11.5 | 130.7 |
| PV1-F/Flar | 2x6 | 78/0.3 | 3.20 | 0.75 | 4.70 | 0.80 | 6.3x12.7 | 172.7 |

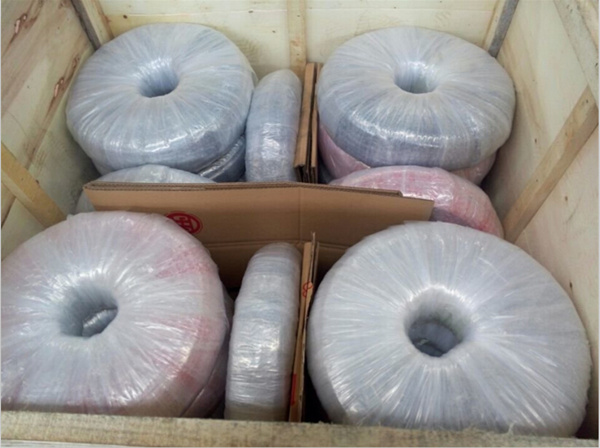

Solar Cable Package & Deliverysimple roll, plastic drum/reel, wooden pallet/box, cartons or customized as your requirement

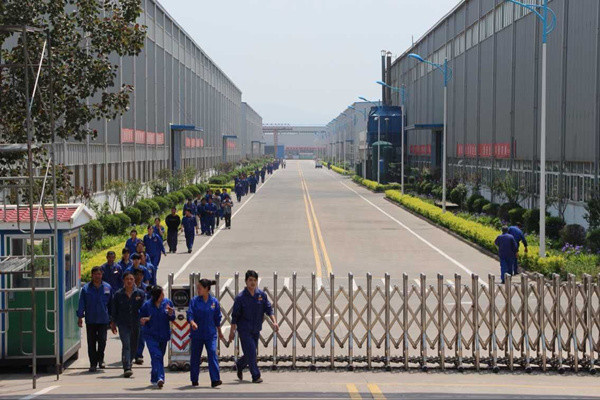

About Asian Sun Group1: a group with seven sub-companies;2: Factory about 200,081 square meters;3: 800 staffs and 40 engineers, 11 production lines;4: production capacity: 100,000m/day.

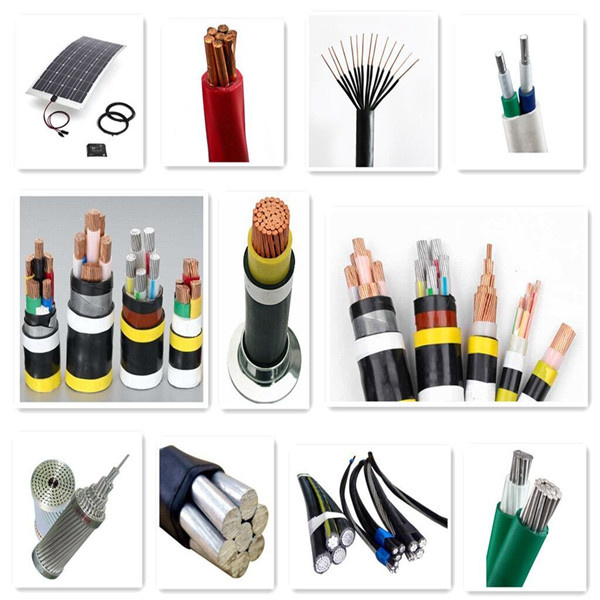

Our ProductsMainly Electric Cables & Wires, 300 Varieties, 2000Kinds Specifications| No. | Products Name |
| 1 | electrical wires, power cables, control cables |
| 2 | solar cables |
| 3 | aerial cables |
| 4 | all aluminum conductor(AAC) |
| 5 | aluminum conductor steel reinforced wire(ACSR) |
| 6 | all aluminum alloy conductor(AAAC) |
Service we can offer 1) Inquiries are answered within 12 hours and OEM is welcome.2) 11 production lines, experienced QC to control the quality of kinds of cables.3) CCC Certificated, and can provide CE, RoHS and SGS certificates before exporting.4) Grown from a small factory with annual turnover of $50,000,to over$50,000,000 during 10years.\5) Ship your order immediately after contracted. We ship worldwide.6) 800 staffs and 40 engineers, we all glad to provide you best service.Welcome You Visit Our Factory! Please Contact Us
----------------------------------------------------------
----------------------------------------------------------Contact person: Mandy Liunumber: +86 137 2168 9492
Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.
Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
