| Prod Model: |
tps cable |
| Jacket: |
PVC |
| Cross Section (mm2): |
as Your Requirement |
| Certificate: |
TUV, SAA, Ce, RoHS |
| Number Of Cores: |
Two Core, Three Core & Four Core |
| Rated Voltage: |
300/300V, 300/500V, 450/750V |
| Name: |
China Best Products Electrical TPS Cable |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Jiukai or OEM |
Product Description

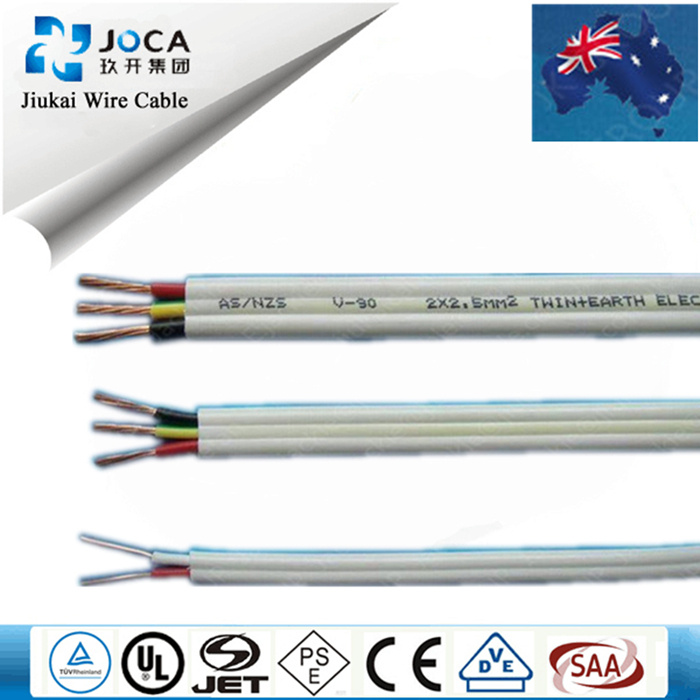

CHINA best products electrical TPS cable
Product Description
1. Conductor: 100% bare copper
2. Insulation: V-90 PVC, BLACK, RED, GREEN/YELLOW
3. Sheath: 3V-90 PVC, WHITE
4. Special requirement is available, like anti-oil, anti-UV, flame-resistant
5. Voltage: 450/750V
6. Working temperature: 90 celsius degree

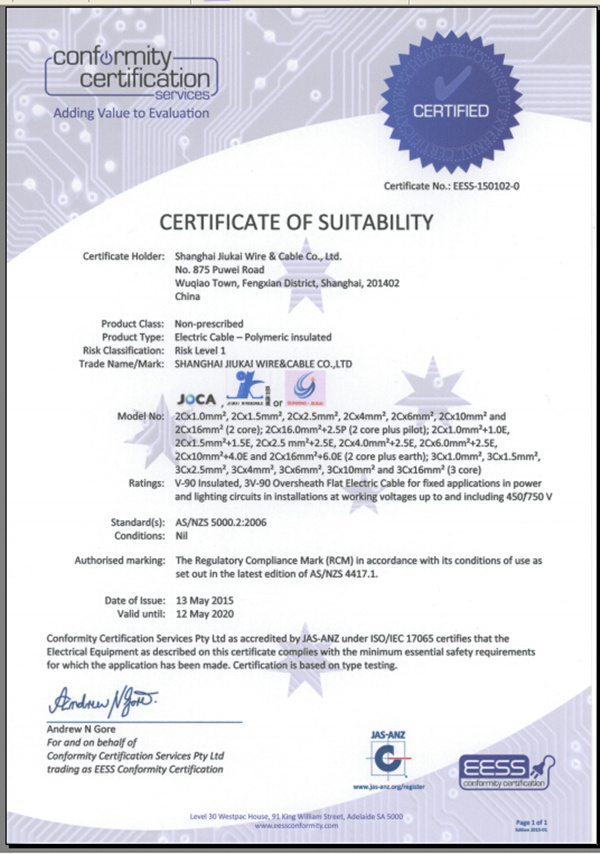

7. We have achieved the SAA certificate, cable is in super quality.
8. Application: It is widely used in house wiring and conduit.
Specification
Standard: IEC 60227 BS 6004
Conductor: BS 6360 Class 1 or 2, Stranded/solid copper wire
Insulation: BS 7655 TI 1 PVC compound
Operating Temperature: max 70C
Min Bending radius: 6D
Rated voltage: 450V/750V
Nominal sectional (size): 1.0mm, 1.5mm, 2.5mm, 4.0mm, 6.0mm2, 10mm, 16mmSq.
Copper conductor PVC insulated flexibe cable (electric wire)
Keeping working temperature under 70C for Long-range operation.
| No.of Cores x | Main | Normal | Normal | Earth | Over | Type |
| Nominal Cross | Conductor | Thickness | Thickness | Conductor | Diameter | |
| Sectional Area | Type | of Insulation | of Jacket | Area | of Cable | |
| (mm2 ) | | (mm) | (mm) | (mm2 ) | (mm) | |
| 1 | solid | 0.6 | 0.9 | 1 | 8.9*4.2 | 2C+E |
| 1.5 | Strand | 0.6 | 0.9 | 1.5 | 9.9*4.5 | 2C+E |
| 2.5 | Strand | 0.7 | 1 | 2.5 | 11.8*5.4 | 2C+E |
| 2.5 | Strand | 0.7 | 1 | 2.5 | 12.2*54 | 2C+E |
| 4 | Strand | 0.8 | 1.1 | 2.5 | 13.9*6.3 | 2C+E |
| 6 | Strand | 0.8 | 1.1 | 2.5 | 15*6.9 | 2C+E |
| 1.5 | Strand | 0.6 | 0.9 | 1.5 | 12.6*4.5 | 3C+E |
| 1 | solid | 0.6 | 0.9 | | 6.5*4.2 | 2C |
| 2.5 | Strand | 0.7 | 1 | | 8.9*54 | 2C |
| 4 | Strand | 0.8 | 1.1 | | 10.5*6.3 | 2C |
| 1 | solid | 0.6 | 0.8 | | 4 | Single core |
| 4 | Strand | 0.8 | 0.9 | | 6 | Single core |
Application
This cable are suited for cabling from the Fire Alarm, OWS and EMIS panels to detectors, speakers, horns, strobes, field modules, etc. TPS cables are PVC insulated and have an "Easy Tear" outer sheath making these cables easy to strip and terminate.
Product Advantages
1. The long-time permissible operation temperture of conductor shall not be higher than 70 or 90 centigrate.
2. Conductor maximum short circuit(not more than 5 seconds)temperature shall not be higher than 160 oC.
3. The power cable is not limited by drop in level when being laid, and the ambient temperature shall not be lower than 0 oC.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.
Our Advantages
1.Many Years of experience for supplying the OEM and customized cables to many World Leader cable Group.
3.Always Work for more profit for customer with our competitive Price .
4.TUV UL Certificate Passed .Quality Guarantee for 15years.

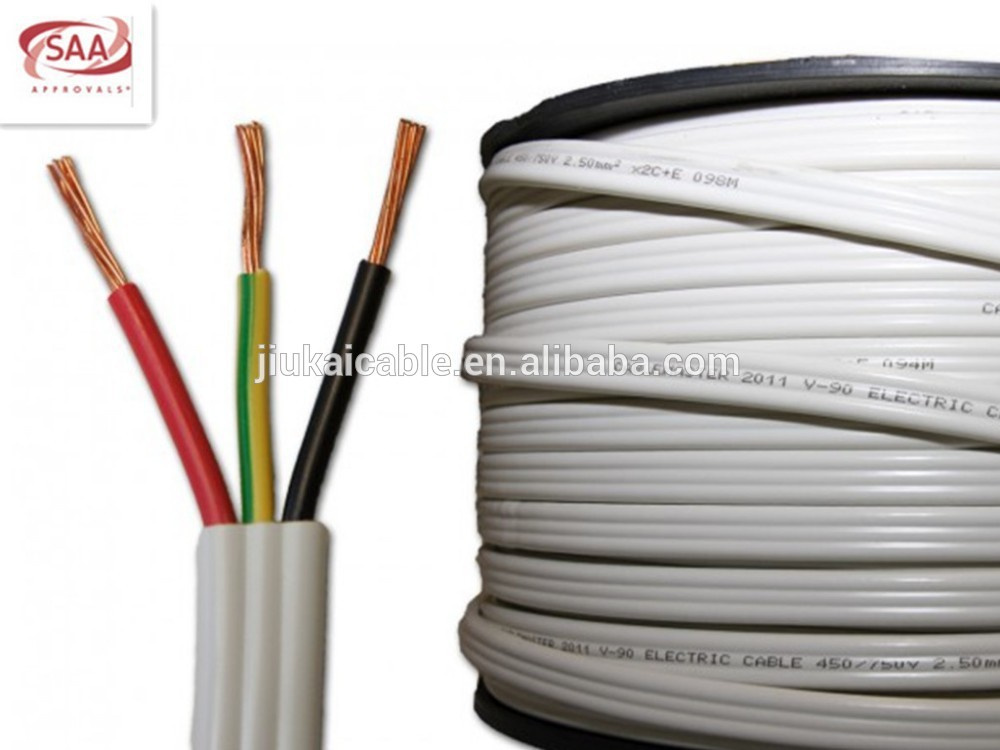

Real photos of products
