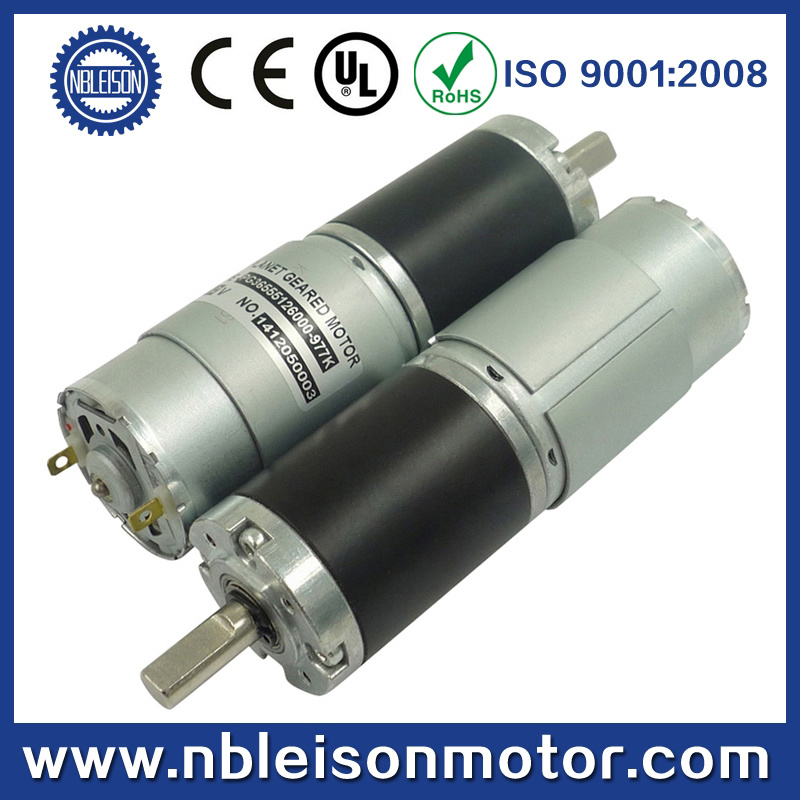

China CE RoHS 36mm 12 Volt 24 Vlot DC Planetary Geared Motor

Name: China CE RoHS 36mm 12 Volt 24 Vlot DC Planetary Geared Motor
Brand: all-electronics-online.com
SKU: 754099255
Availability: InStock
Rating: 4.9 (70 reviews)

Price:	US $ 8.89-15/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PG36555
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Construction:	Permanent Magnet
Commutation:	Brush
Effiency:	Ie1
Protect Feature:	Drip-Proof
Gear Type:	Planetary Gear
Structure And Working Principle:	Brush
Operating Speed:	Low Speed
Application:	Robot, Curtain
Brand:	Leison Motor
Certification:	CE

Product Description

DC Planetary Gear Motor:

1. Voltage: 6V 9V 12V 24V

2. Speed: 1-2000rpm

3. Torque: 1-100kg. Cm rated torque

4. Gearbox 36mm Dia X 26.4-52.4mm length

Shaft: 8mm Dia X 22mm Length

5. Motor's voltage, speed, torque, shaft can accept customizied requirment after evaluation.

4. Packing Details: 280-350g/PCS(approx) 40PCS/CTN 16kg/carton

5 The datasheet and price range only typical data for reference, Gear motor's price are usually decide by

Motor's reduction ratio and torque. Please fell free to contact with me if youwant this motor Specificaton or

Drawing.

Gearbox data:
Number of stages	1stages reduction	2stages reduction	3stages reduction	4stages reduction	5stages reduction
Reduction ratio	3.7, 5.2	13.7, 19.2, 26.9	50.9, 71.2, 99.5, 139	188, 264, 369, 516, 721	699, 977, 1367, 1911, 2672, 3736
Gearbox length" L" mm	26.4	32.6	38.9	45.3	52.5
Max. Running torque	3.0Kgf@ cm	6.0Kgf@ cm	8.0Kgf@ cm	12Kgf@ cm	20Kgf@ cm
Max. gear breaking torque	9.0Kgf@ cm	18Kgf@ cm	24Kgf@ cm	36Kgf@ cm	60Kgf@ cm
Gearing efficiency	90%	81%	73%	65%	59%

Motor data:
Motor name	Rated Volt. V	No load		Load torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	r/min	mA	r/min	gf. cm	W	gf. cm	mA
RS-555123000	12	≤ 140	3000	≤ 800	2200	150	3.3	600	3000
RS-555124500	12	≤ 220	4500	≤ 1200	3300	220	7.2	880	4800
RS-555126000	12	≤ 350	6000	≤ 2000	4500	300	13.5	1200	6000
RS-555243000	24	≤ 70	3000	≤ 400	2200	150	3.3	600	1600
RS-555244500	24	≤ 110	4500	≤ 600	3300	220	7.2	880	3000
RS-555246000	24	≤ 180	6000	≤ 1000	4500	300	13.5	1200	4000

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
