China Custom BGA PCB 12 Layer Electronics Board
| Price: |
US $ 0.99/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1853R1.3 |
| Board Thick: |
1.924mm |
| Minimum Trace And Space: |
5.5 Mil/5 Mil |
| Silkscreen Color: |
White |
| Minimum/Maximumhole: |
0.25/2.0mm |
| Soldermask Color: |
Green |
| Copper Thickness: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Via: |
Vin in Pad Under BGA Package |
| Board Plating: |
0.0030" |
| Test: |
100% Electrical |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

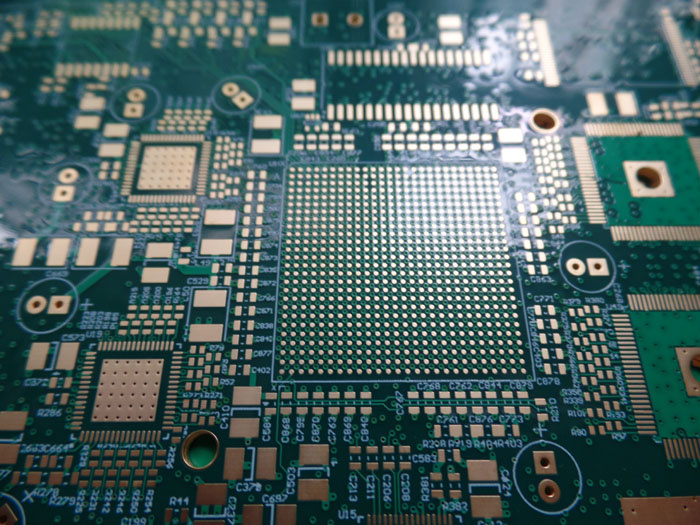

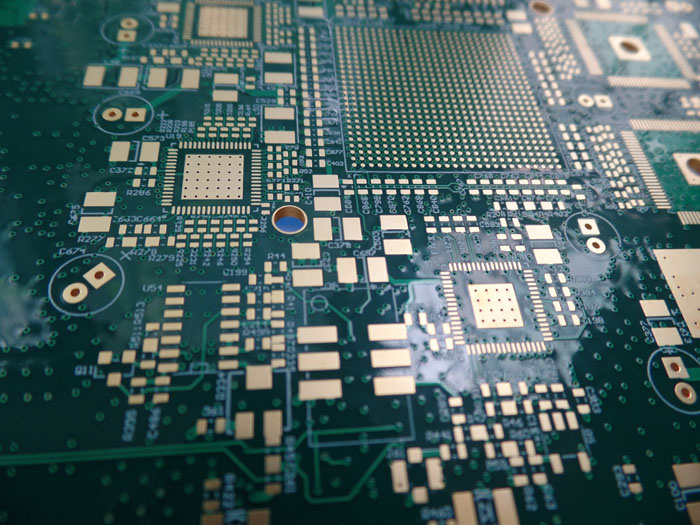

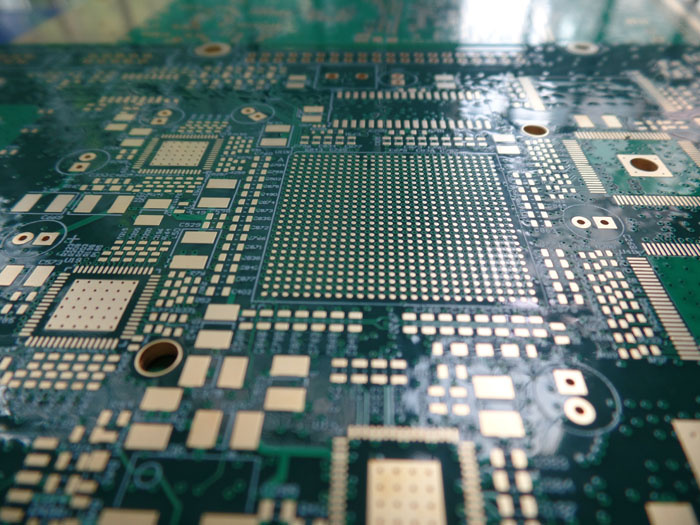

12 Layer Multilayer Printed Cirucit Board BGA and Via In Pad Technologies Applied In
Programmable Logic Controller
Commodity Introduction
This is a type of FR-4 PCB for the application of Programmable Logic Controller. It's a 12 layer
board at 1.924mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are

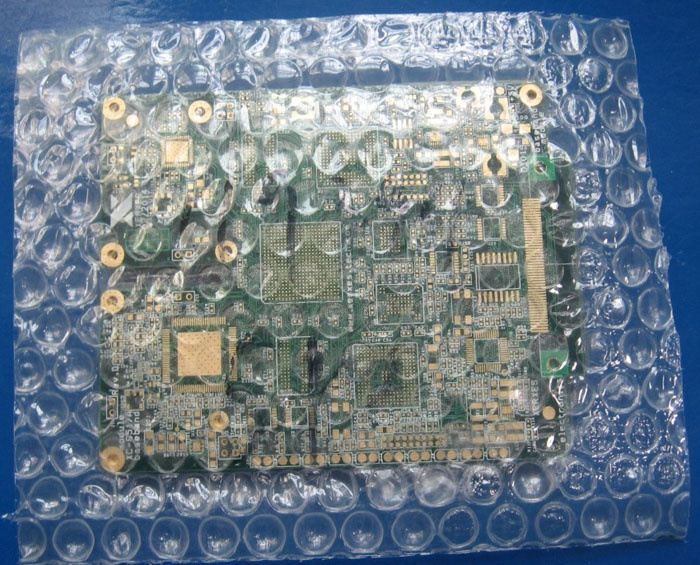

packed separately.
Parameters & Data Sheet| PCB SIZE | 90 x 120mm=1PCS=1design |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 12 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- TOP 17um(1oz)+plate 25um |
| 130 um prepreg 1080 x 2 |
| copper ------- L02 35um(1oz) |
| 150um core FR-4 |
| copper ------- L03 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L04 35um(1oz) |
| 150um core FR-4 |
| copper ------- L05 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L06 35um(1oz) |
| 150um core FR-4 |
| copper ------- L07 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L08 35um(1oz) |
| 150um core FR-4 |
| copper ------- L09 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L10 35um(1oz) |
| 150um core FR-4 |
| copper ------- L11 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- BOT 17um(0.5oz)+plate 25um |
| TECHNOLOGY | |
| Minimum Trace and Space: | 5.5mil/5mil |
| Minimum / Maximum Holes: | 0.25/2.0mm |
| Number of Different Holes: | 25 |
| Number of Drill Holes: | 1552 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140, TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.924mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 2 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and \leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented.
Vin in pad under BGA package |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Programmable logic controller, Wifi Module
Router Switch
Storage Server
GPS USB
Mobile Router |
TYPE OF ARTWORK TO
BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Adventages
1.RoHS materials
2, UL conform
3, Professional and experienced engineers
4.Save time: Market requires the products updating quickly. Bicheng PCB always works fast and
flexible to save the time of production from prototype to standard production, quick turn-around
or scheduled deliveries.
FAQ
Where do you sell your PCBs?
We sell our PCB's world widely.
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western &
Southern Europe, Northern Europe, Central & South Asian, and Middle Eas
