China Factory Large Span 36 Core ADSS Optic Cable

Name: China Factory Large Span 36 Core ADSS Optic Cable
Brand: all-electronics-online.com
SKU: 830437375
Availability: InStock
Rating: 4.5 (109 reviews)

Price:	US $ 0.2-1.8/Meter
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS
Application:	Communication
Type:	Single-mode Fiber
Certification:	ISO9001
Connection Structure:	Optical Fiber
Brand:	Tw-Scie or OEM
Sheath Material:	PE

Product Description

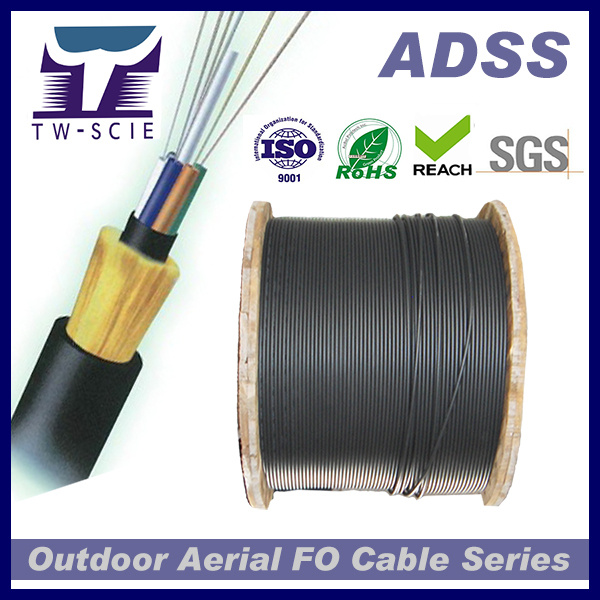

China Factory Large Span 36 Core ADSS Optic Cable

1. Cable Description

ADSS cable is loose tube stranded. Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

2. Application

• The actual status of overhead power lines is taken into full consideration
when ADSS cable is being designed.
• For overhead power lines under 110kV, PE outer sheath is applied.
• For power lines equal to or over 110kV, AT outer sheath is applied.
• The dedicate design of aramid quantity and stranding process can satisfy the demand
on various spans.

3. Characteristics
• It can be installed without shutting off the power.
• Light weight and small diameter reducing the load caused by ice and wind and the load
on towers and backprops.
• Good performance of tensile strength and temperature.
• The design life span is 30 years.

4. Cable Construction Details

F iber count	12F
Span length	100mt
SM fiber	Fiber type	G652D	Concentricity error	≤0.5um
	MFD	8.6~9.8um	Cladding non-circularity	≤0.7%
	Cladding diameter	124.8±0.7um	Fiber color	standard spectrum
Central strength member	Material	FRP	Diameter	2.0mm
Loose Tube	Material	PBT	Diameter	2.0mm
Tube-filling	Mateial	Filling compound
Water blocking system	Mateial	Filling gel
Inner sheath	Mateial	PE	Thickness	1.0±0.05mm
Outer strength member	Material	Kevlar yarn
Outer Sheath	Material	PE	Color	black
	Diameter	12.5±0.3mm	Thickness	2.0±0.05mm

5. Cable mechanical and environment chararcteristics

Maximum Tensile strength		3000N
Extra load		0.5%-0.7%
Wind speed		45m/s
Ice		5mm
Temperature		-40ºC~+70ºC

6. Fiber characteristics

Attenuation		1310um			≤0.36dB/km
		1550um			≤0.22dB/km

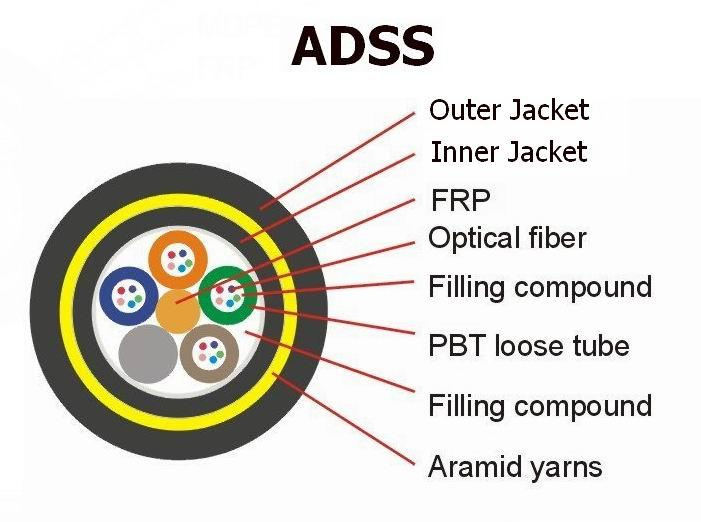

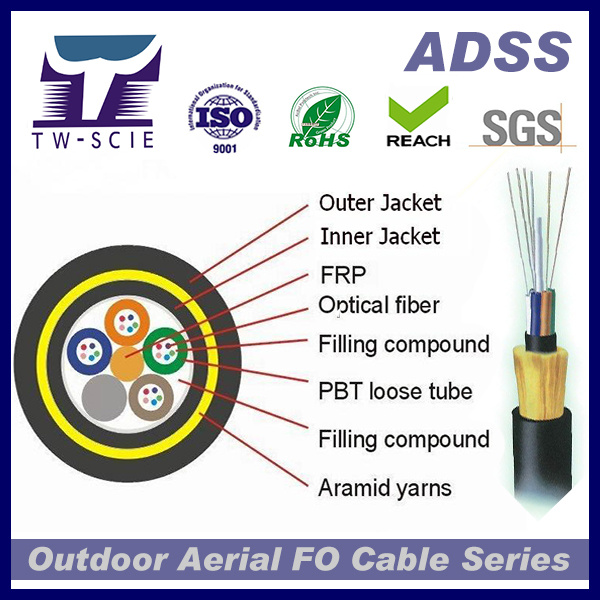

Structure Chart:

More Pictures:

24 Core Span=300meter Dielectric Optical Cable (ADSS)

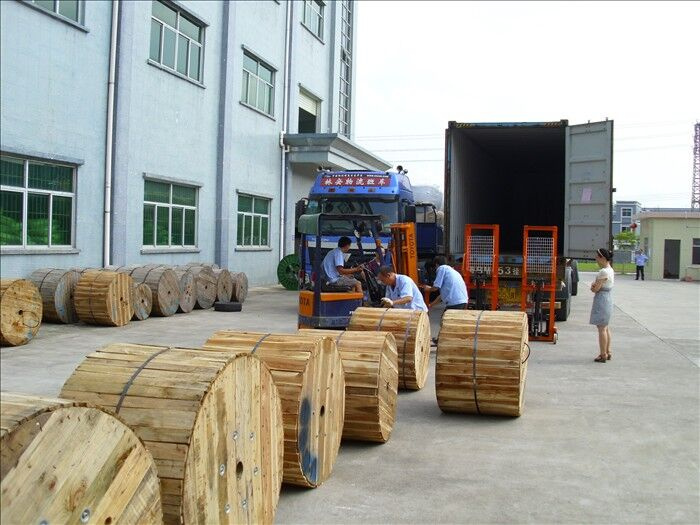

7. Package
Packing material: Wooden drum.
Packing length: 2km per drum or customization.

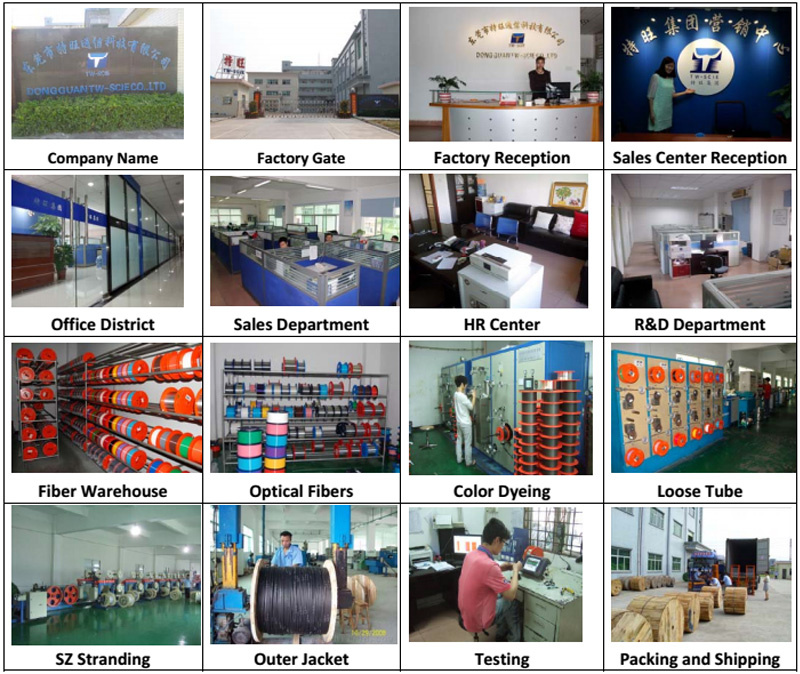

Company Overview:

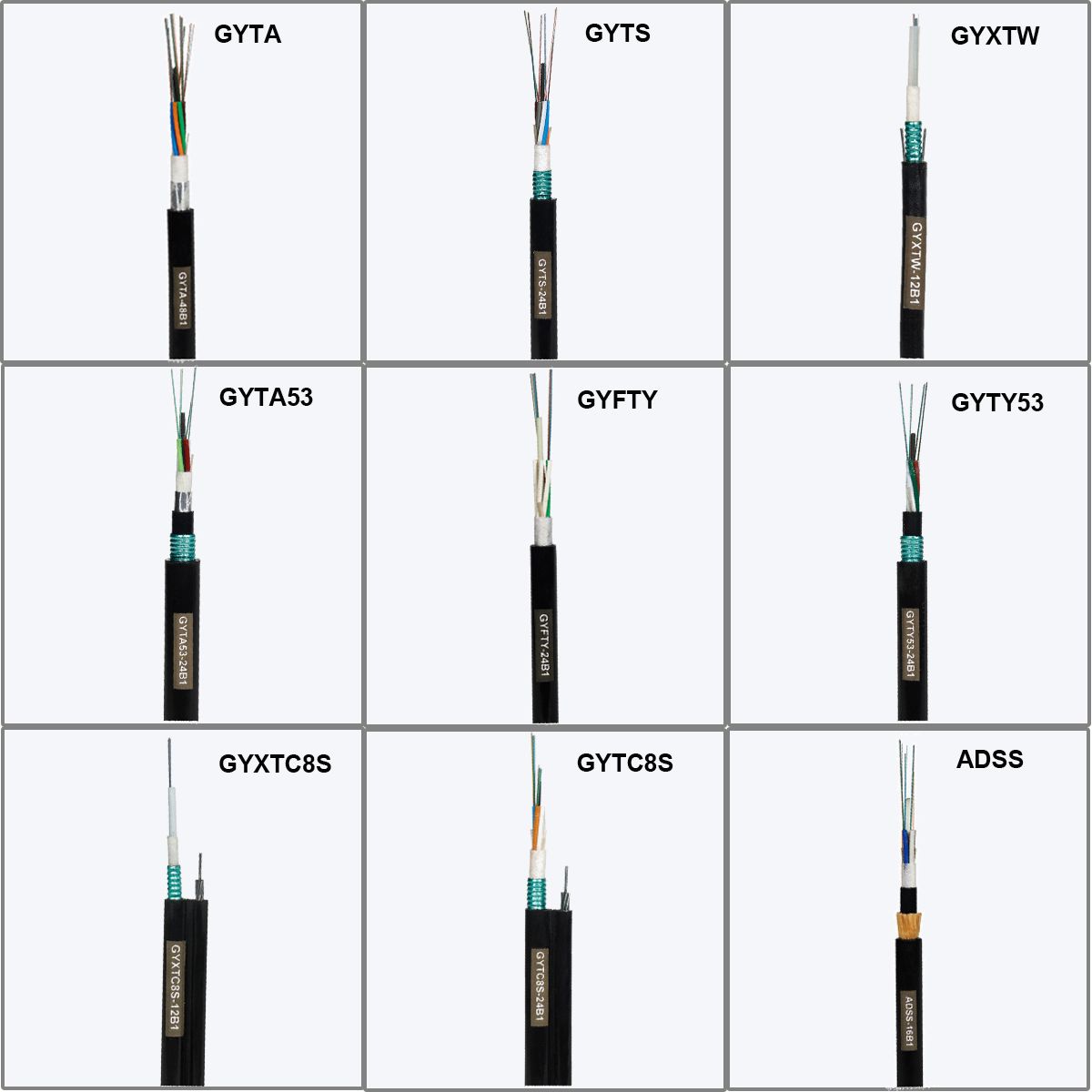

Related Products:

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
