China FTTH Connect Sc Upc Single Mode Fiber Patch Cords

Prod Model:	SC/UPC
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	RoHS
Brand:	Fiber Come

Product Description

Product Description

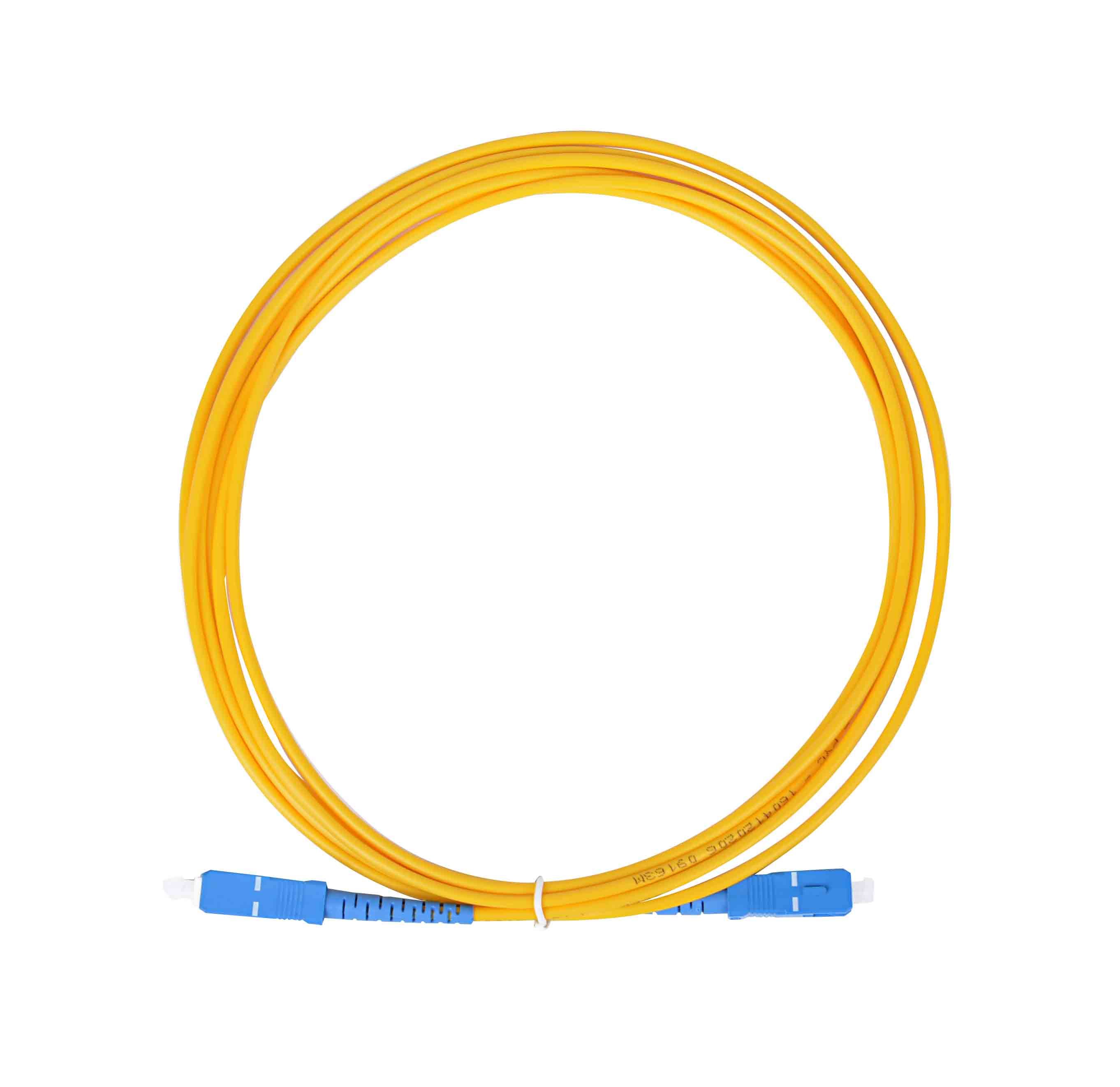

CHINA FTTH CONNECT SC UPC Single Mode Fiber Patch Cords


1. Cat5e/Cat6/Cat7 Patch cable
2. Passed Fluke test



Features
.  Available in G652D, G657A, OM1, OM2, OM3 and OM4 fiber types.
.  All dielectric construction with aramid yarn for physical protection and mechanical strength.
.  Double LSZH sheath cable gives more excellent tensile strength,
    mechanical, rodent, ultraviolet and environmental protection.

Mechanical, Environmental & Material Data

Fiber Mode	Singlemode or Multimode
Fiber count	1
Connector Style	SC, FC, ST, LC, MU, E2000, DIN
Polish or Ferrule Interface Type	PC, UPC, APC
Cable Lengths	Custom Lengths
Jacket Material	LSZH
Outer Jacket Color	Black
Inner Jacket Color	White
Strength Member	Aramid Yarn
Outer Jacket Diameter(mm)	4.6 ±0.1
Inner Jacket Diameter(mm)	3.0 ±0.1
Crush(N/100mm)	1000
Maximum Tensile Load(Long term)	150N
Maximum Tensile Load(Short term)	400N
Storage Temperature(°C)	-20°C to 60°C
Installation Temperature(°C)	-5°C to 50°C
Operating Temperature(°C)	-20°C to 60°C

Optical Characteristics

Fiber Type	Max. Attenuation(dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
							Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

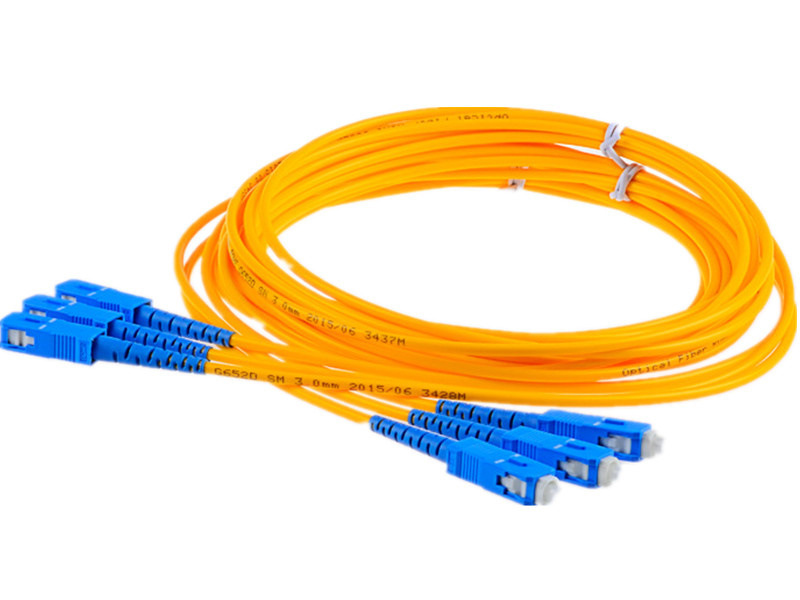

CHINA FTTH CONNECT SC UPC Single Mode Fiber Patch Cords








Item	Single Mode	Multi Mode
Insertion Loss	<=0.2dB	<=0.3bB
Insert-Pull Test	1000 times
Operating Temperature	-40ºC ~ +85ºC
Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um	127um concentricity deviations:>=1um
Suitable Fiber	9/125um	50/125um,62.5/125um
Return Loss	>=45dB(PC);>=60dB(APC)	>=35dB
Material	PVC/LSZH
Connect kits	Shell, tail cover, bag insert core, dustproof cap, white buckle, straight gear, spring, cap pressure spring, funnel

Connector Type Code

Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector	Code	Connector
FP	FC/PC	FA	FC/APC	LP	LC/PC	LA	LC/APC	MU	MU	DN	DIN
SP	SC/PC	SA	SC/APC	TP	ST/PC	TA	ST/APC	MT	MTRJ	E2	E2000

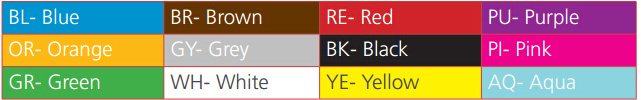

Color Code

Note:Yellow Jacket for SM, Orange Jacket for OM1~OM2, Aqua Jacket for OM3 and Purple Jacket for OM4.
(other colors may be available upon request).
