China PCB 4 Layer Board Blind Via with 1.6mm Thick
| Price: |
US $ 0.42/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1012R3.2 |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green |
| Inner Copper Thick: |
0.5 Oz |
| Minimum Trace And Space: |
7.9 Mil/5.9 Mil |
| Outer Copper Thick: |
1 Oz |
| Board Thick: |
1.6mm |
| Legend Color: |
White |
| Via: |
Blind Via |
| Minimum / Maximum Holes: |
0.3/0.3mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Bicheng Multilayer PCB 4 Layer Tg170 FR-4 Blind Via At 1.6mm Thick Applied In Temperature Module
Commodity Introduction

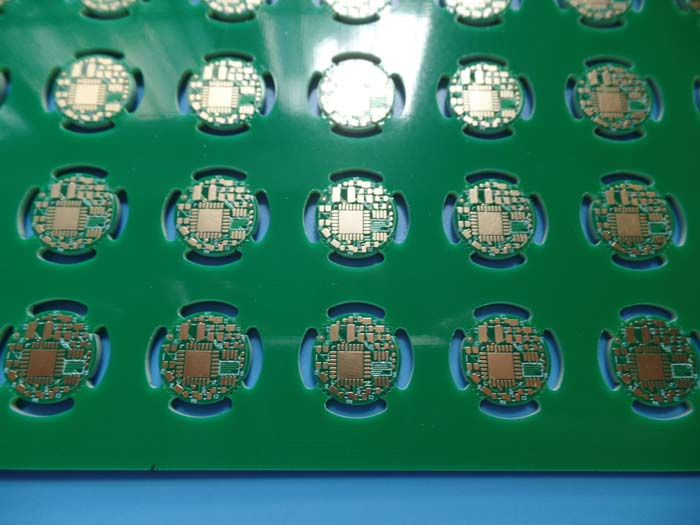

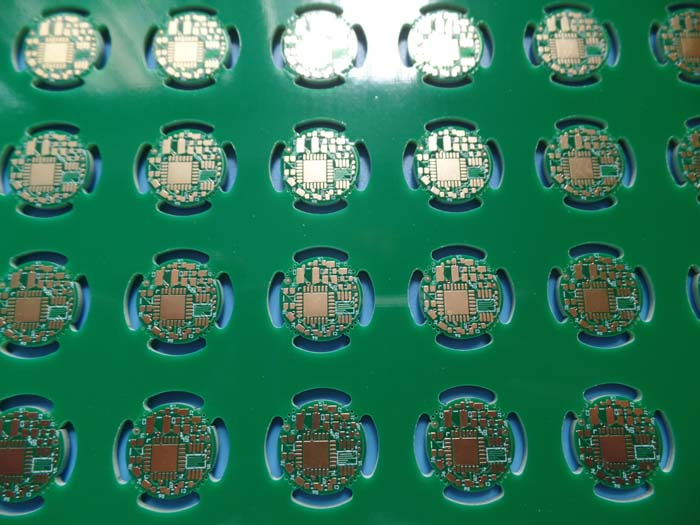

This is a type of FR-4 PCB for the application of Temperature Module. It's a 4 layer board at
1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Nanya and

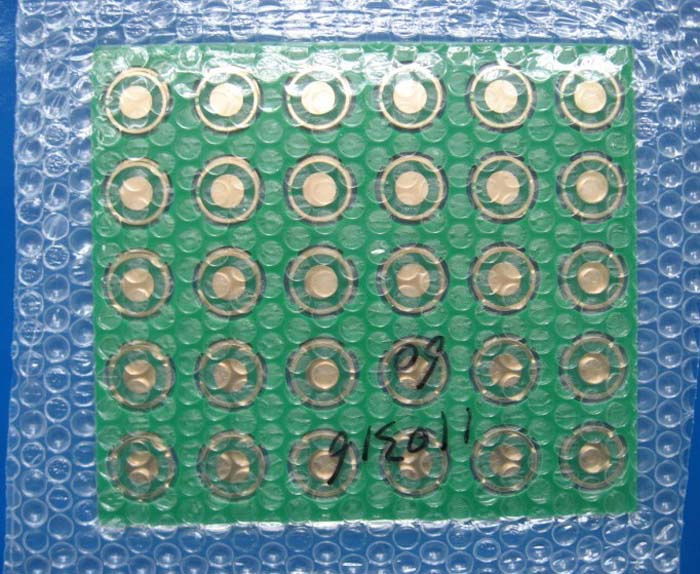

Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or
panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 173 x 197mm=30PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 18um(0.5oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 18um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 7.9mil/5.9mil |
| Minimum / Maximum Holes: | 0.3/0.3mm |
| Number of Different Holes: | 1 |
| Number of Drill Holes: | 865 |
| Number of Milled Slots: | 90 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (32.4%) 2 micoinch over
100 microinch nickel |
| Solder Mask Apply To: | Top and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, Fiducial Marks |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented,
Blind via from top to inner layer 2 |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Temperature module, Micro Usb
Gprs
Adapter
Phone Tracker
Wifi Repeater |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Laminates --- FR-4 Applied on printed circuit boards (PCBs)
FR-4 grade materials are generally used on the circuit board has many types, but most are based
on the so-called four function (Tera-Function) composite material which is composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant.
FR-4 is the primary insulating backbone upon which the vast majority of rigid printed circuit boards (PCBs) are produced. A thin layer of copper foil is laminated to one or both sides of an FR-4 glass epoxy panel. These are commonly referred to as copper clad laminates (CCL).
FR-4 copper-clad sheets are fabricated with circuitry interconnections etched into copper layers to produce printed circuit boards (PCBs). More sophisticated and complex FR-4 printed circuit boards (PCBs) are produced in multiple layers, also known as "multilayer circuitry".
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

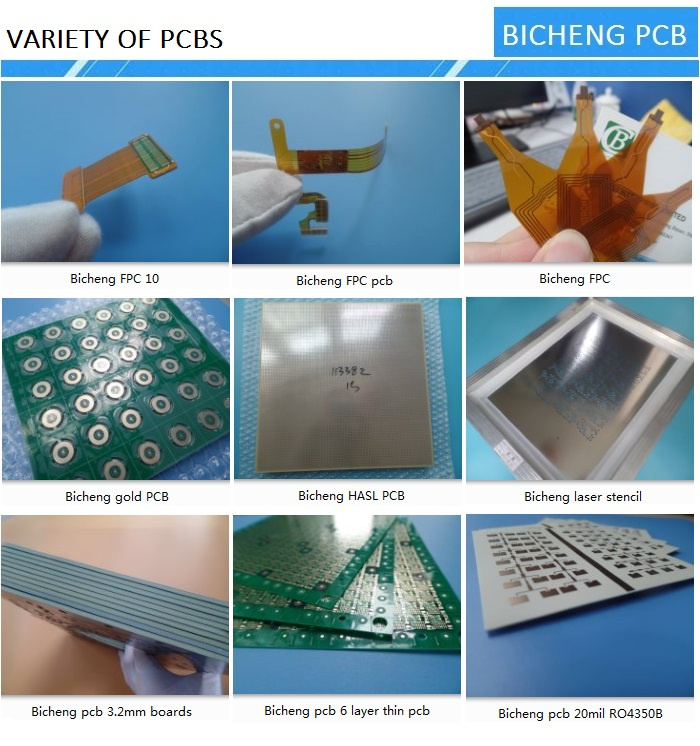

A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
