China Supplier 120mm Low Voltage Power Cable

Name: China Supplier 120mm Low Voltage Power Cable
Brand: all-electronics-online.com
SKU: 732072352
Availability: InStock
Rating: 4.6 (40 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	120mm low voltage power cable
Product Name:	120mm Low Voltage Power Cable
Rated Voltage:	0.6/1 Kv
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

1. Standard of PVC Cable: According to GB12706( Equal to IEC60502)Also can do by standard of ASTM,BS,DIN and AS/NZS or other standards as request.

2. Rated Voltage of PVC Cable:

0.6/1KV 6/10KV;8.7/15KV;12/20KV;18/20KV;21/35KV;6/35KV

3. Construction of PVC Cable:

Conductor:Copper or Aluminum

Insulation:XLPE

Inner sheath:PVC or PE

Armoured:Galvanized steel tape,Galvanized steel wire

Outer Sheath:PVC or PE

NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.

Also can do according to the customer's request.

4. Characters of PVC Cable:

a.Max Long-time operating temperature of PVC insulated cable is 90°C

b.Installing temperature of cable should not be less than 0°C

c.Max short-circuit temperature is not exceed 250°C,Not more than5 Sec.

d.Unable be laid without the limit of fall with enough mechanical pull,Single core cable can not be laid in iron tube or fixed by circled iron tools around cables

5. Description & Application of PVC Cable:

TYPE		NAME	Main Application
CU core	AL core
YJV/YJY	YJLV/YJLY	XLPE insulated,PVC/PE sheathed power cable	For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid
YJV22/YJV23	YJLV22/YJLV23	XLPE insulated,steel tape armored,PVC/PE sheathed power cable	For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force
YJV32/YJV33	YJLV32/YJLV33	XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable	For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43	YJLV42/YJLV43	XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable	For laying in water and seabed.Able to bear positive pressure and pulling force

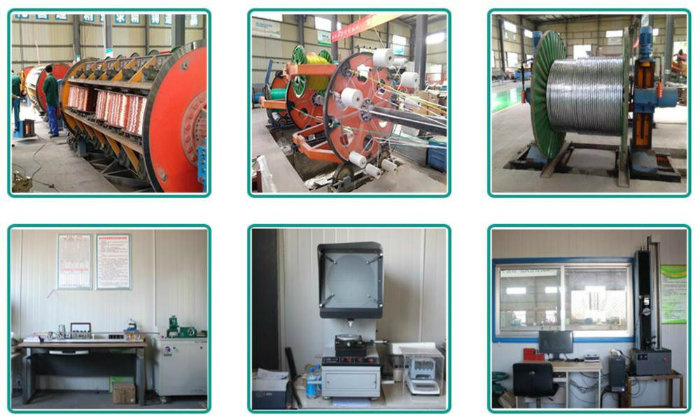

Luxing Factory : our production base

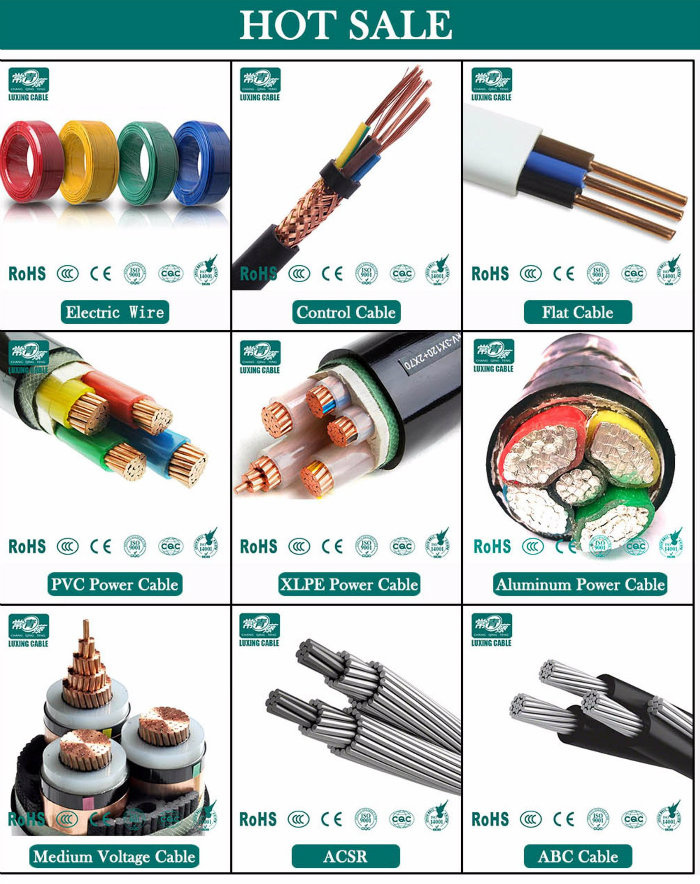

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

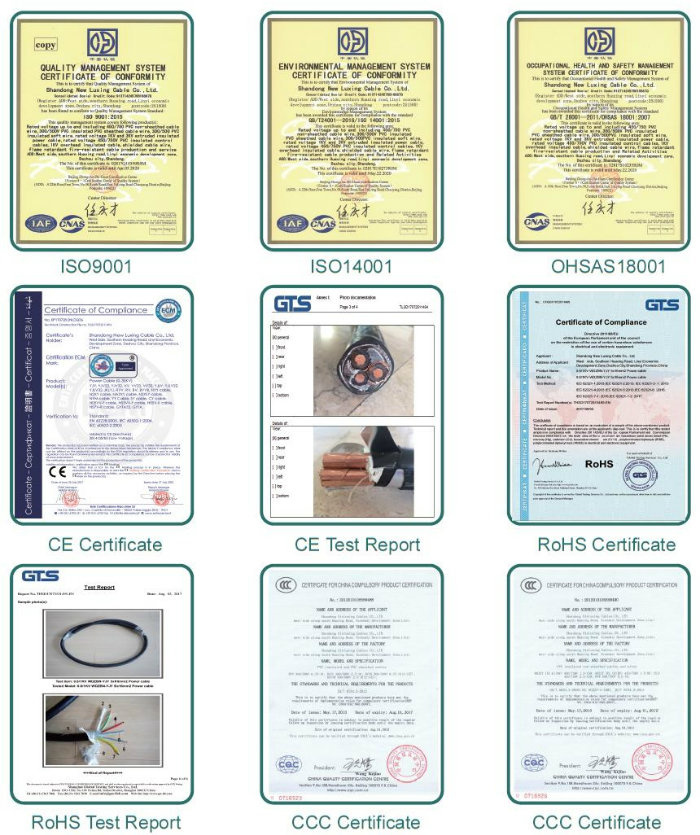

Certificates

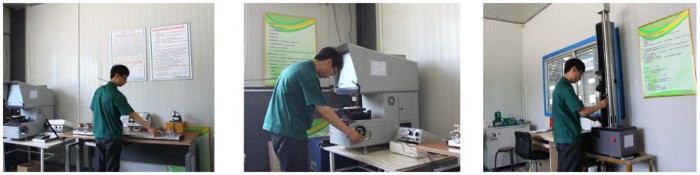

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
