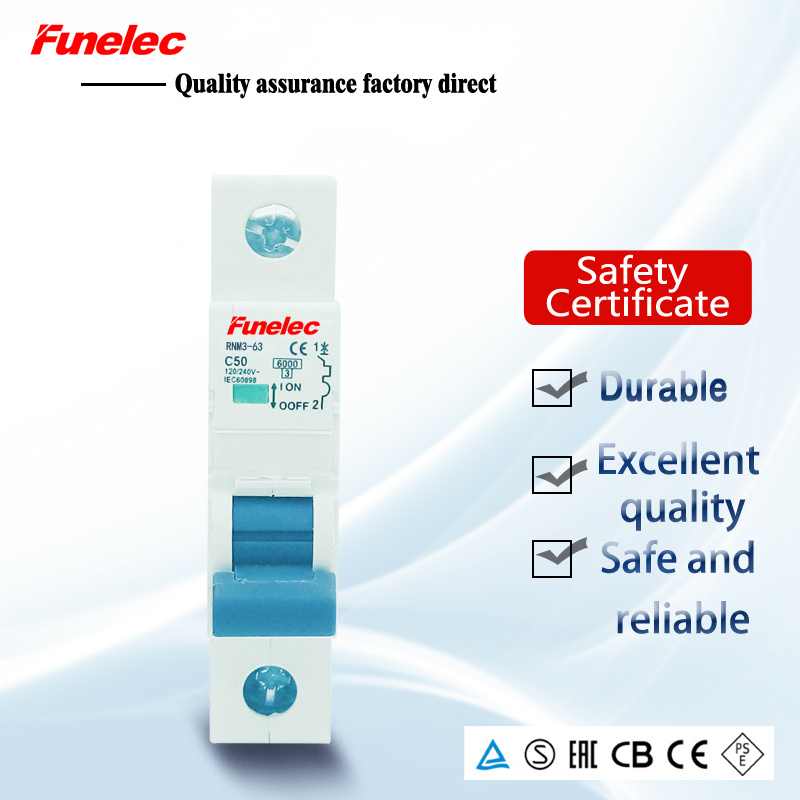

China Supplier IEC Approved Electric Mini Circuit Breaker Switch Type MCB

Name: China Supplier IEC Approved Electric Mini Circuit Breaker Switch Type MCB
Brand: all-electronics-online.com
SKU: 730063462
Availability: InStock
Rating: 4.5 (144 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FNM3-63
Rated Voltage:	240/415V
Standard:	IEC60898-1
IP Degree:	IP20
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CCC
Poles Number:	1p/2p/3p/4p

Product Description

Product Description:

1. Fine and unique appearance

2. Short-circuit and overload dual-protection performance

3. High-breaking capacity

4. Convenient and reliable installation mode

FNM1-63 Series circuit breaker is used for overload and short-circuit protection in lighting distribution system or motor distribution system.
The product is neoteric in structure, light in weight, reliable and excellent in performance.
It has high breaking capacity which can trip quickly.

circuit breaker Specifications:

Standard			IEC/EN 60898-1
Product			Miniature Circuit Breaker
Model			FNM1-63
Electrical Features	Rated Current	A	1,2,3,4,5,6,10,16,20,25,32,40,50,63
	Number Of Poles	P	1P or 2P or 3P or 4P
	Rated Voltage Ue	V	220/380 230/400 240/415
	Insulation Voltage Ui	V	500
	Rated Frequency	Hz	50/60
	Rated Breaking Capacity	A	4500 6000
	Rated Impulse Withstand Voltage(1.2/50) Uimp	V	4000
	Dielectric Test Voltage At Ind. Freq. For 1Min	KV	2
	Pollution Degree		2
	Thermo-magnetic Release Characteristic Curve		B, C, D
Mechanical Features	Electrical Life	t	4000
	Mechanical Life	t	10000
	Protection Degree		IP20
	Storage Temperature	ºC	-25 - +70

Packaging & Shinpping:
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
4.Shipment port:SHANGHAI/NINGBO
5.By Air or by Sea for batch goods,Airport/ Port receiving;
6.Customers specifying freight forwarders or negotiable shipping methods!

Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively

Company Information

FAQ
Q: If I'm interested in your MCCB when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.

Q:Your MCB seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our MCCB are high quality customized.I think compare the quality first and then compare the price is the best way.

Q:Can I get a sample before the order because I really don't how is your MCCB quality?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

WenZhou Funelec Electrical Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 300 employees with an area of more than 3000 square meter.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises. WenZhou Funelec Electrical Co., Ltd.
