| Prod Model: |
GGD |
| Frequency: |
50Hz |
| Rated Voltage: |
380V |
| Rated Current: |
Below 3150A |
| Type: |
Fixed-Mounted |
Product Description

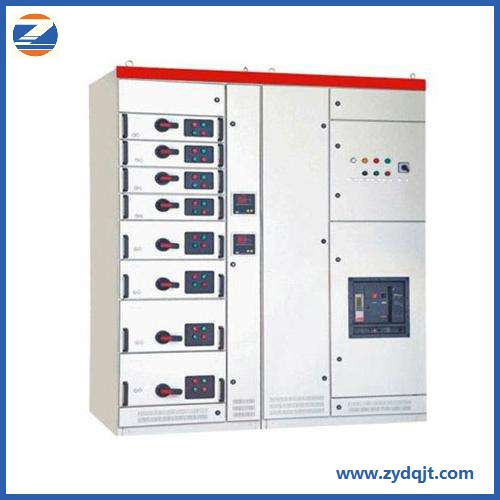

GGD-Type Low voltage Fixed-mounted Switchgear Cabinet :
1.Functional design:1)Rationalized dimensions and layout inside the switchboard.
2)Reduced footprint.
3)Easy power and auxiliary connections .
4)Easy installation upgrading at a controlled cost.
5)An intelligent system, ready to integrate devices containing advanced protection and communication
functions for electrical distribution and motor control.
2.Electrical Characteristics:
>>Rated insulation voltage: 1000 VAC
>>Rated operational voltage: 690 VAC
>>Rated impulse withstand voltage: 12 KV
>>Overvoltage category: IV
>>Degree of pollution: 3
>>Frequency: 400 Hz, up to 400 Hz
3.Main busbars rated current:
1). Main busbars Single busbars Double busbars
2). Rated current up to 4000 A up to 6300 A
3). Rated peak withstand current 63, 105 187 kA 220 kA
4). Rated short-time current 30, 50 85 kA r ms / 1 s 100 kA r ms / 1 s

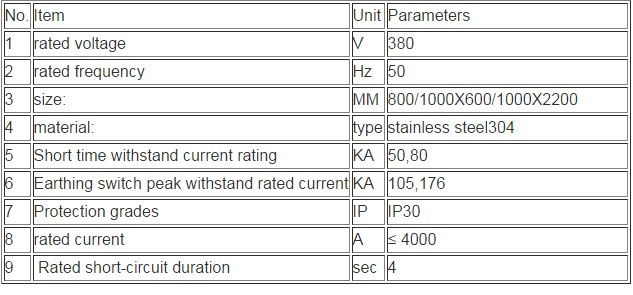

4.Specifications:

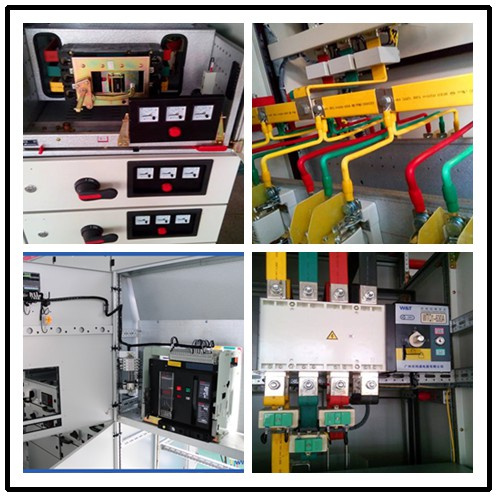

Detailed Images :
Packing & Delivery :
SAFE, TIMELY, EFFICIENT
Long time shipment & Seaworthy wooden box
Wooden package optional:
1,choose one unit/ wooden box
2,choose 2unit/ wooden box to save cost
Certifications :

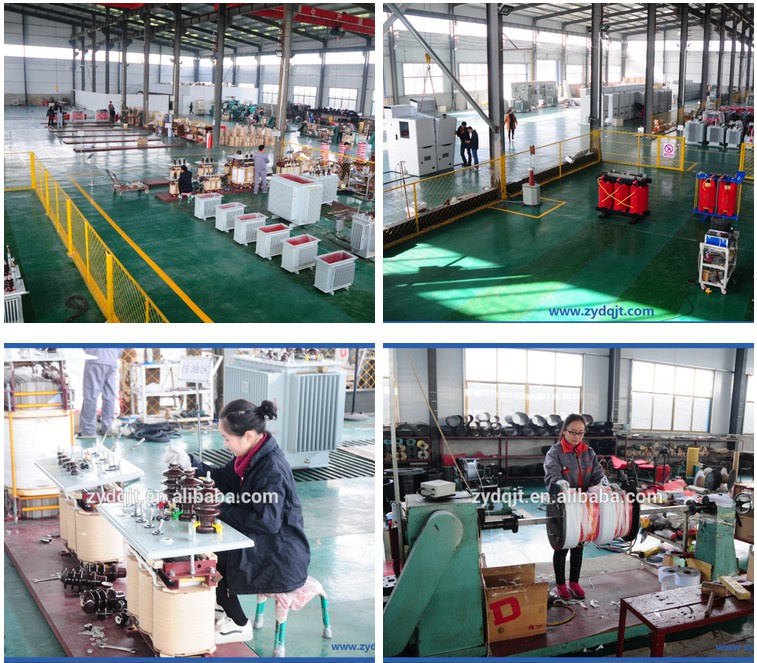

Factory Show :

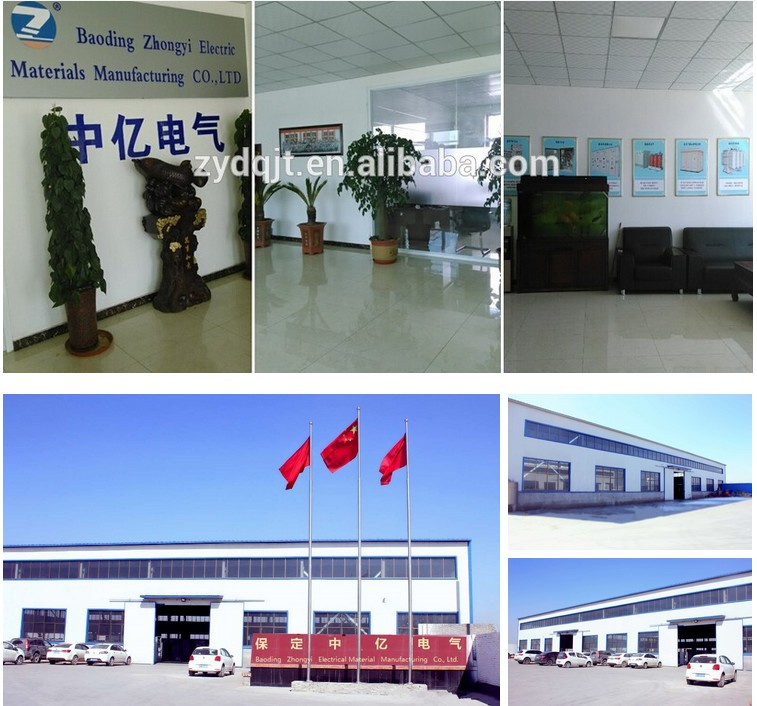

Our Company :
Baoding Zhongyi Electrical material Manufacturing Co., Ltd.mainly produces: oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a
variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
Baoding Zhongyi Electrical material Manufacturing Co., Ltd. follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. is located at the beautiful Baiyangdian Science and Technology Town in Baoding City, with an advantageous geographical location and convenient transportation. Our company covers an area of 30, 000 square meters, the building area of 16, 000 square meters. The registered capital of the company is RMB 81, 000, 000.
The company mainly produces: Oil-immersed power transformers, dry-type transformers, box-type substation, high and low voltage switchgear assembly and a variety of special-type transformers. The hoisting, tooling and testing equipments are complete. Our company has passed the ISO9001-2015 international standard quality management system certification. All performance indicators of the products have reached the relevant national standards and international standards.
The oil-immersed power transformers and dry-type transformers have passed the Test Report of the National Supervision and Inspection Center for Energy-saving Product Quality; Complete sets of low voltage switchgear (GGD2) (GCK) has passed the Test Report of China Compulsion Certification (CCC) from the State Bureau of Quality and Technical Supervision for Electrical Products; Indoor AC dray-out type metal clad switchgear KYN28A-12 / 1250-31.5, fixed AC metal-enclosed ring network cabinet XGN15-12 / 1250-31.5 and XGN15 metal-enclosed switchgears have passed the Test Report of the National Quality Supervision and Inspection center for High-voltage Electrical Appliances Product.
Our company's products are widely used in different industries, involving power plants, chemicals, construction, mining, metallurgy, rail transportation and so on, best meeting the needs of various users.
Baoding Zhongyi Electrical Material Manufacturing Co., Ltd. Follows the enterprise purpose of the "details determine the success or failure, integrity casts the future", abides by the business philosophy of the "integrity based, to be innovative ambitious", we'll warmly treat our customers as always and continuously provide quality products and services to your satisfaction.
