China Supplier S-15W 5V 24V 48V AC-DC Power Supply

Name: China Supplier S-15W 5V 24V 48V AC-DC Power Supply
Brand: all-electronics-online.com
SKU: 839219385
Availability: InStock
Rating: 4.6 (78 reviews)

Price:	US $ 4-5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-15
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

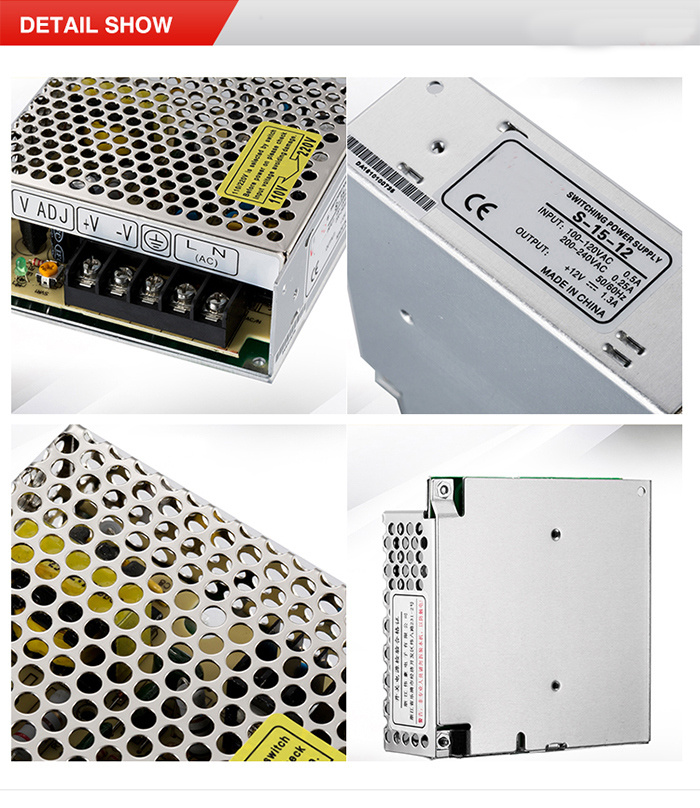

15W 12V DC Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

Model	S-15-5	S-15-12	S-15-24	S-15-48
DC voltage	5V	12V	24V	48V
Rated output current	3A	1.3A	0.6A	0.3A
Output current range	0~3A	0-1.3A	0-0.6A	0-0.3A
DC power	15W	15.6W	15W	15W
Voltage adj.range	+10,-5%	±10%	±10%	±10%
Voltage tolerance	±2%	±1%	±1%	±1%
Ripple and noise	50mVp-p	50mVp-p	100mVp-p	100mVp-p
Intet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.1%	±0.5%	±0.5%	±0.5%
AC voltage range	85~132VAC/170~264VAC selected switch 47~63Hz
Current	0.5A/115V 0.25A/230VAC
Efficiency	78%	80%	82%	80%
AC Inrush current	15A/115V 30A/230V
Leakage current	<0.5mA/240VAC
Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over-voltage	115%~135%
Over-voltage	5.75-6.75V	13.8-16.2V	27.6-32.4V	55.2-64.81V
High temperature	ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output (5~15V)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC, Output and enclosure,0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure, 500VAC/100M Ohms
Temperature coeffi cient	±0.03%/°C (0~50°C )
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95%RH
Overall dimension	999735mm 60PCS/CARTON
Weight	0.31Kg
