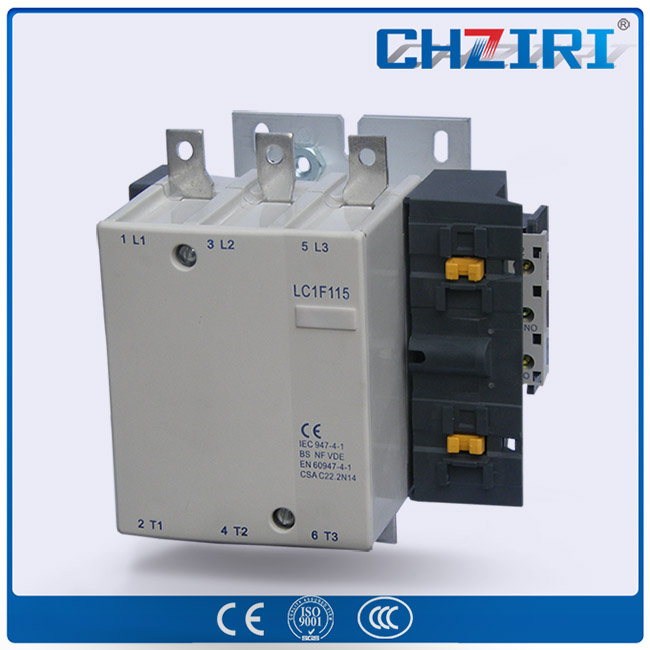

Chziri by Pass Contactor for Chziri Soft Starter

Name: Chziri by Pass Contactor for Chziri Soft Starter
Brand: all-electronics-online.com
SKU: 642300375
Availability: InStock
Rating: 5 (106 reviews)

Price:	US $ 45/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2-F115
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Current:	115A
Power:	55kw
Coil Of Voltage:	230V
Input Voltage Of Soft Soft Starter:	380V.440V
Load:	Medium Power Relay
Protective Characteristics:	Open Relay
Theory:	Thermal Relay
Size:	Subminiature
Action Principle:	Electromagnetic Type
Usage:	Soft Starter

Product Description

CJX2F series AC contactor is suitable for the power system of AC 50Hz or 60Hz, rated working voltage up to 660V or 1140V and rated working current up to 630A, used to make and break circuit frequently in a far distance, while, it can be combined with thermal relay or electronic protection equipment to form into an electromagnetic starter, to protect the circuit against possible overload. The products are in conformity with such standards as GB 14048.4 and IEC 60947-4-1

Application
CJX2-F series AC Contactor is applicable in the circuit rated voltage up to 1000V AC. 50/60HZ, rated current up to 800A, for long distance breaking circuit and frequently starting or controlling the motor. It also can be used for the control of distributing circuits of rated current from 200A to 1600A (AC-1)/115A to 800A (AC-3).



Specification
Model	Rated operation current(A)		Standard power ratings of 3-phase motors AC-3(KW)
Model	AC-3	AC-1	220/230V	380/400V	415V	440V	500V	660/690V	1000V
CJX2-F115	115	200	30	55	59	59	75	80	65
CJX2-F150	150	280	40	75	80	80	90	100	65
CJX2-F185	185	275	55	90	100	100	110	110	100
CJX2-F225	225	315	63	110	110	110	129	129	100
CJX2-F265	265	350	75	132	140	140	160	160	147
CJX2-F330	330	400	100	160	180	200	200	200	160
CJX2-F400	400	500	110	200	200	250	257	280	185
CJX2-F500	500	700	147	250	280	295	355	335	335
CJX2-F630	630	1000	200	335	375	400	400	450	450
CJX2-F780	780	1600	220	400	425	425	450	475	450
CJX2-F800	800	850	250	400				475	450
External dimensions & Installation dimensions
Type		A	B	C	b		f		φ
CJX2-F115		163.5	162	171	137		131		M6
CJX2-F150		163.5	170	171	137		131		M8
CJX2-F185		168.5	174	181	137		130		M8
CJX2-F225		168.5	197	181	137		130		M10
CJX2-F265		201.5	203	213	145		147		M10
CJX2-F330		213	206	219	145		147		M10
CJX2-F400		213	206	219	209		146		M10
CJX2-F500		233	238	232	209		150		M10
CJX2-F630/F800		309	304	255	280		181		M12

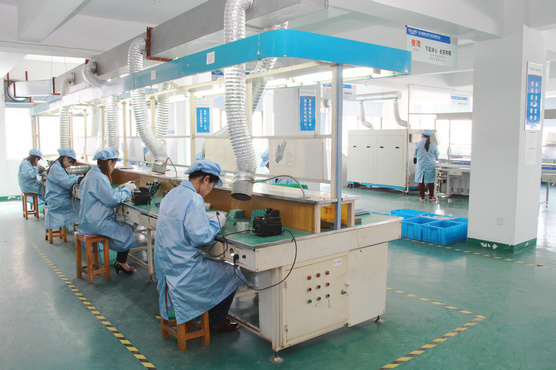

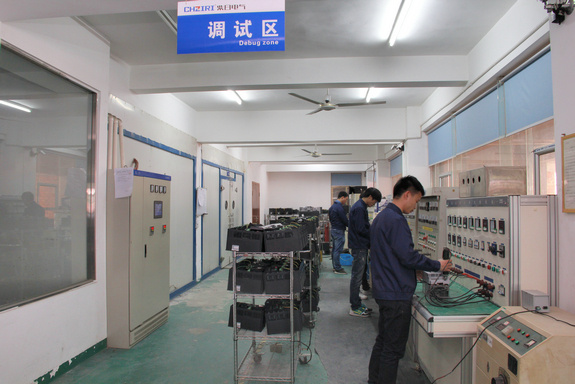

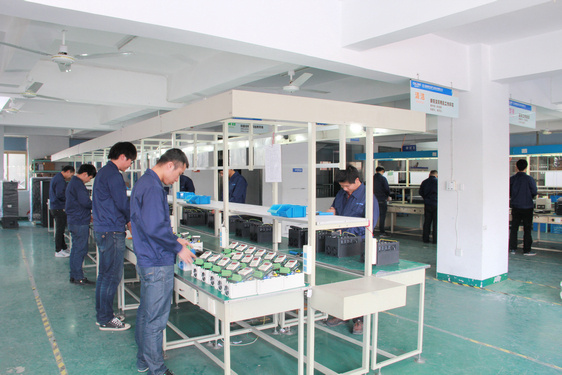

1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.

2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.

3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.

4. CHZIRI Electrical can also provide clients with customized control panel. We

Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.

5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.

6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.

7. CHZIRI Electrical also go aboard to attend the fair every year.

8. OEM service can be offered.

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
