Circuit Board 2 Layer PCB Enig 1.0mm Thick with Green

Name: Circuit Board 2 Layer PCB Enig 1.0mm Thick with Green
Brand: all-electronics-online.com
SKU: 823856985
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	US $ 0.42/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-397-V3.97
Board Thick:	1.0mm
Surface Finish:	Enig
Surface Cu Thickness:	43.65 Um (1.247 Oz)
Solder Mask Colour:	Green
Mininum Trace (Mil):	7.8mil
Minimum Gap(Mil):	7.0mil
Warpage:	0.54%
RoHS Required:	Yes
Workmanship:	Ipc-6012c Class 2
Function:	100% Pass Electrical Test
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

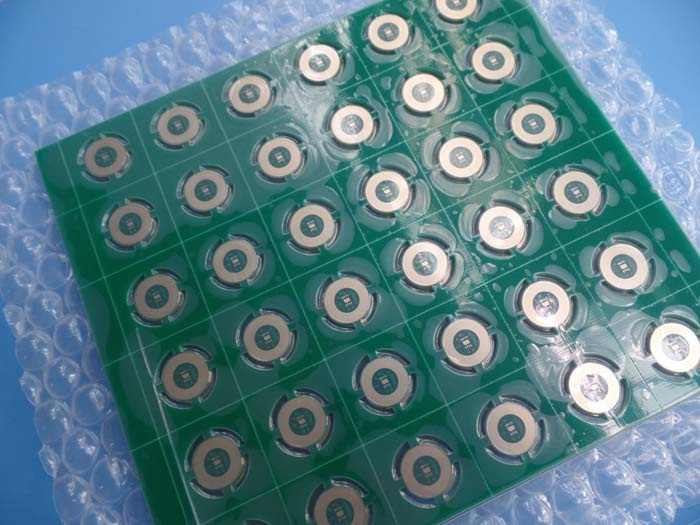

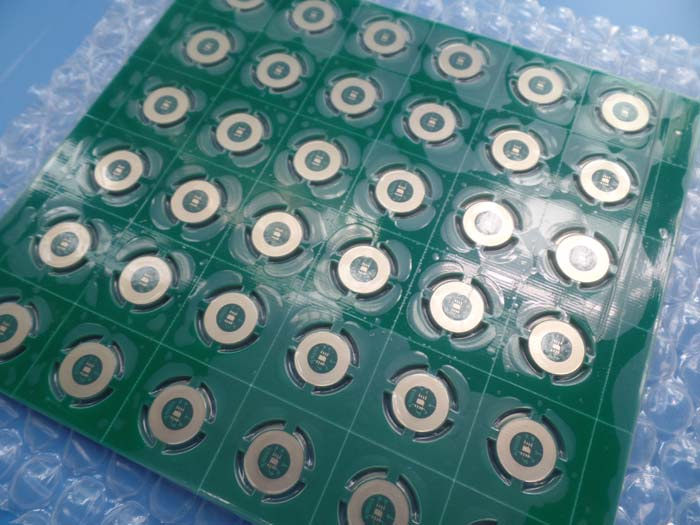

Immersion Gold surface PCB circuit 2 Layer 1.0mm thick with Green

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.0mm thick. The
base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

Number of Layers	2
Board Type	Double Sided PCB
Board Thickness	1.0mm +/-0.1
Board Material	FR-4
Board Material Supplier	ITEQ
Tg Value of Board Material	TG135ºC

PTH Cu thickness	≥20 um
Inner Iayer Cu thicknes	N/A
Surface Cu thickness	43.65 um (1.247oz)

Solder Mask Type and Model No.	LPSM, PSR-2000GT600D
Solder Mask Supplier	TAIYO
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13um

Type of Silkscreen Ink	N/A
Supplier of Silkscreen	N/A
Color of Silkscreen	N/A
Number of Silkscreen	N/A

Mininum Trace (mil)	7.8 mil
Minimum Gap(mil)	7.0mil

Surface Finish	ENIG, 0.025um gold over 3.88um nickel
RoHS Required	Yes
Warpage	0.54%

Thermal Shock Test	Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering.
Solderablity Test	Pass, 255±5ºC,5 seconds Wetting Area Least 95%
Function	100% Pass electrical test
Workmanship	Compliance with IPC-A-600H & IPC-6012C Class 2

Learn and buy PCB
How to specify a PCB?
A PCB user generally needs to present all of the primary manufacturing data in a complete and
unambiguous way that the PCB manufacturer can quote and produce the boards without error.

A checklist is listed as follows. Some parameters not necessary for a particular job can be deleted
so that the specification form only reflects the relevant data.
(1) Company name
(2) Part number
(3) Lot size and annual requirements
(4) Layer count
(5) Board size
(6) Board thickness
(7) Board shape
(8) Panelization
(9) Board build-up
(10) Boards with controlled impedance
(11) Test coupon
(12) Machining (Contouring)
(13) Laminate type and UL flammability
(14) Warp & Twist
(15) Outer layers
(16) Inner layers
(17) Solderability preservation
(18) Solder masks
(19) Notation
(20) Peelable solder mask
(21) Carbon printing
(22) Plated through holes (PTHs)
(23) Non-PTHs
(24) Milled Holes (Slots)
(25) Blind via holes
(26) Buried via holes
(27) Board tooling holes
(28) Panel tooling holes
(29) Board mounting
(30) Edge connectors
(31) Soldering conditions
