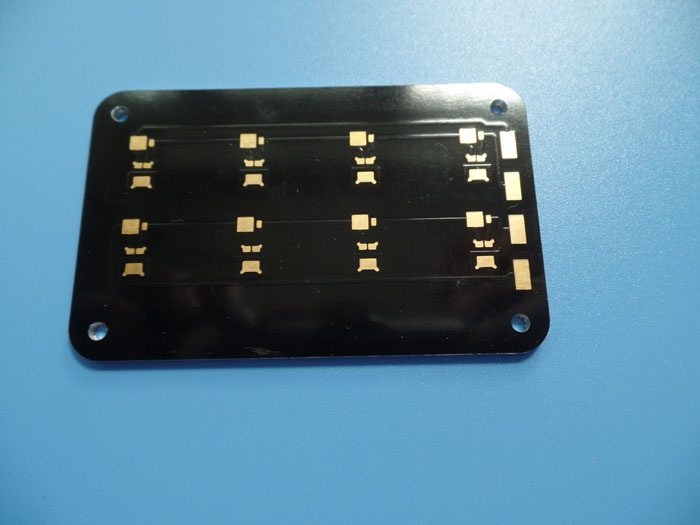

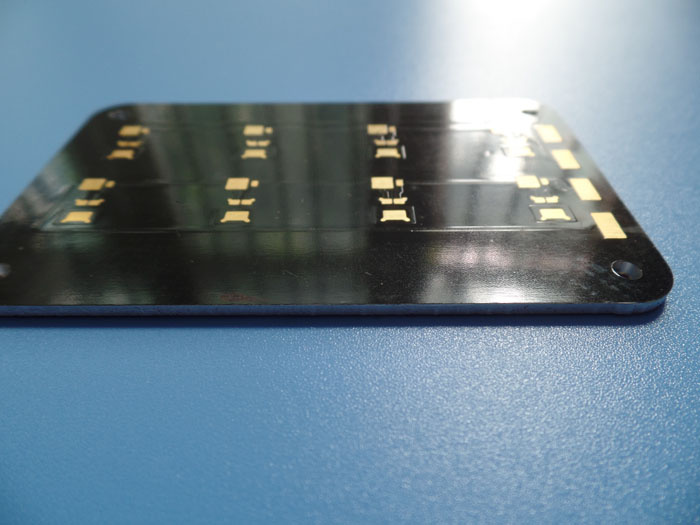

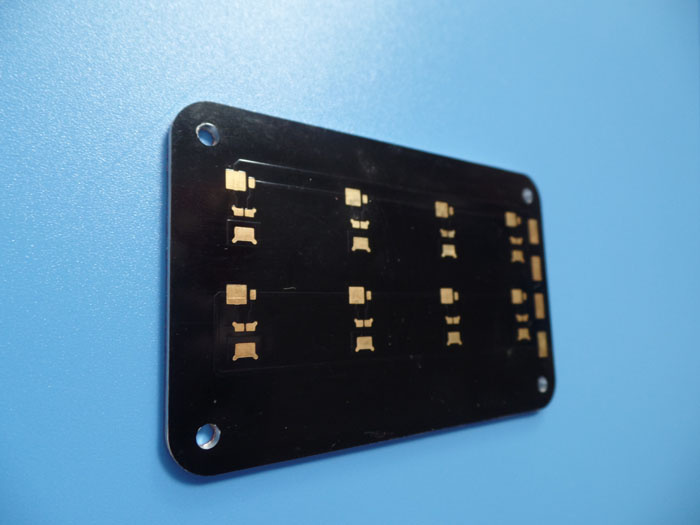

Name: Circuit Board Metal Core LED PCB Lighting Black Soldermask
Brand: all-electronics-online.com
SKU: 820030935
Availability: InStock
Rating: 4.7 (112 reviews)

Price:	US $ 1.28/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC1063R1.3
Board Thick:	1.6mm
Copper Thick:	1 Oz
Solder Mask Color:	Black
Surface Finish:	Immersion Gold
Colour Of Component Legend:	No Silkscreen
Minimum Trace and Space:	11mil/11.5mil
Minimum/Maximum Holes:	8.5mm
Thermal Resistance(°c/W):	≤0.45
Thermal Conductivity:	3W / Mk Dielectric Material
Test:	100% Electrical Test
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Material:	Aluminum
Dielectric:	Aluminum 5052

Product Description

Metal Core PCB Board Aluminum PCB 1.6mm Single sided 3W / MK 200um Dielectric Applied
For LED Lighting

Commodity Introduction
This is a type of Aluminum PCB for the application of LED Lighting. It's a single sided layer board
at 1.6mm thick. The base laminate is from ITEQ, Solder mask from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Parameters & Data Sheet

PCB SIZE	80 x 50mm=1PCS
BOARD TYPE
Number of Layers	Single sided PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- 35um(1oz)
	3W/MK dielectric material 100um
	Aluminum base 5052
TECHNOLOGY
Minimum Trace and Space:	11mil/11.5mil
Minimum / Maximum Holes:	8.5mm
Number of Different Holes:	1
Number of Drill Holes:	4
Thermal resistance(°C/W)	≤0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	3W / MK dielectric material, MCPCB
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm ±0.16
PLATING AND COATING
Surface Finish	Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel)
Solder Mask Apply To:	Top. 12µm Minimum.
Solder Mask Color:	Black
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	no silkscreen
Colour of Component Legend	no silkscreen
Manufacturer Name or Logo:	as per requirement
VIA	no via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
APPLICATION:	LED light, Power Switch 8 Port Gigabit Switch 16 Port Gigabit Switch Led Diode Electronic Parts
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

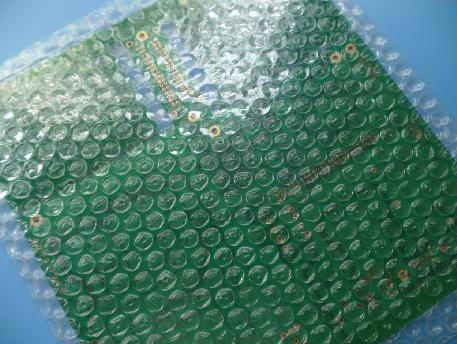

Packing and shipment
We have two types of vacuum bags.
For mass production PCB

Inside foam to protect PCB shipment

Hundreds of PCBs are shipped to worldwide every day by DHL, Fedex and UPS

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
